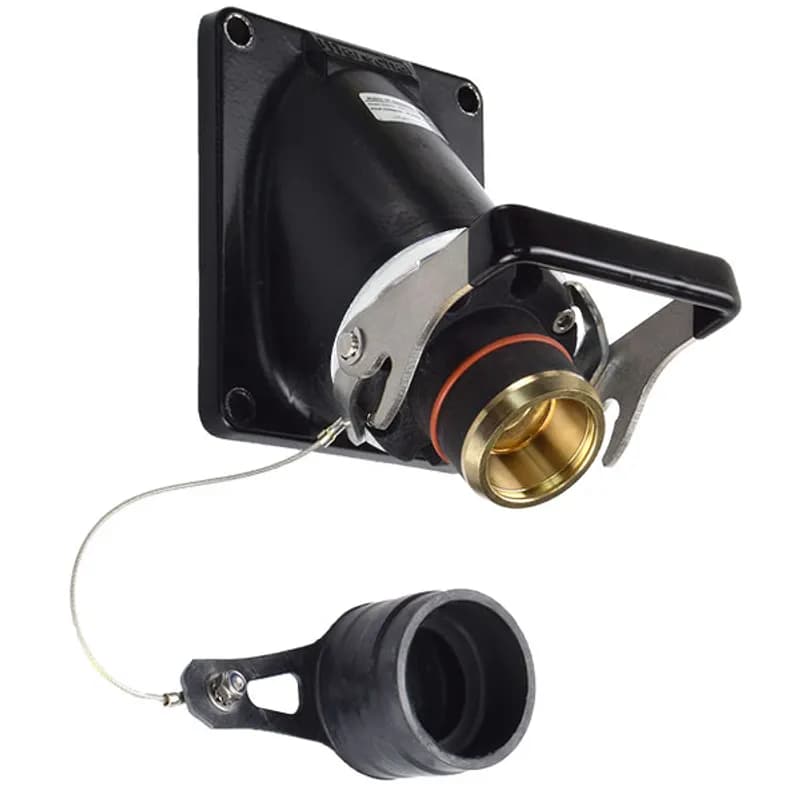

Meltric 44-49002-P80 INLET/ANGLE ADAPTER

The general ratings are 600 A and 600 VAC Max for CSA and NOM, and 800 A and 1000 VAC/1500 VDC Max for IEC.

The product operates within a temperature range of Min -15°F to Max 140°F.

The device has an environmental protection rating of IP66/IP67 when mated, ensuring protection against dust and water ingress.

The mechanical interlock prevents connection and disconnection under load by controlling the power circuit via an integral pilot circuit switch.

The device is not designed for current interrupting.

The wiring capacity ranges from a minimum of 2/0 AWG to a maximum of 777 MCM.

Plugs and connectors come standard with a .750-.875 inch cable range. Other sizes are available by referring to the provided table.

The pilot wiring is prewired with 1A, 240 VAC, and 14 AWG.

The product has a 3Ø 500 hp rating, which is CSA hp rated when auxiliary pilots are wired to control the motor control circuit.

To disconnect, open the pilot circuit by turning the ring until "0" aligns with the arrow, which turns off the power. Then, press the latch release button and pull the inlet.
