Overview

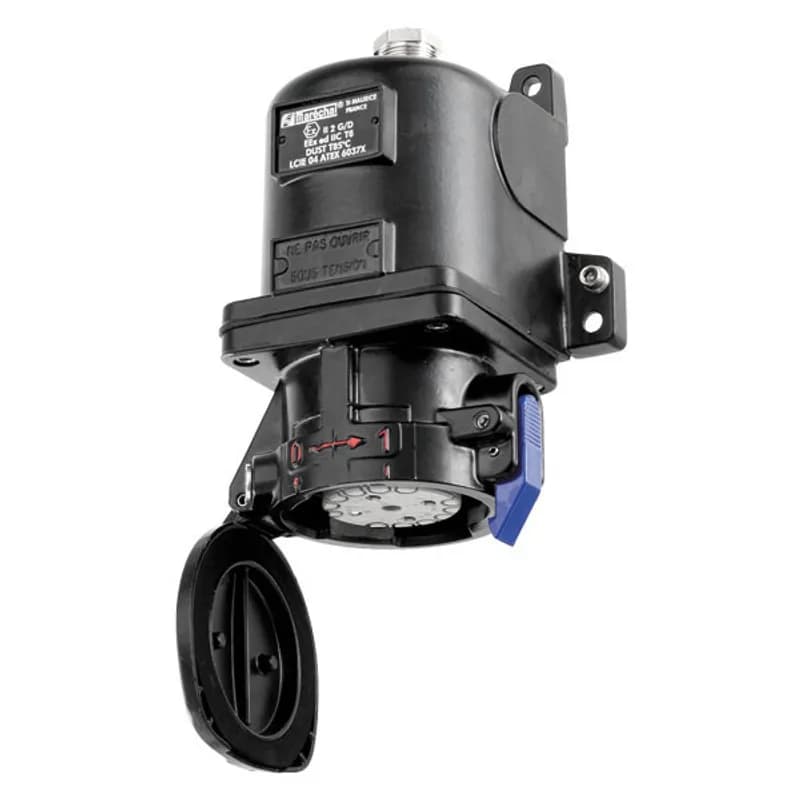

- Durable metal construction with black protective coating for enhanced durability
- IP65-rated for protection against dust, moisture, and mechanical impact
- Rated for 100A at 600VAC and 60Hz for heavy-duty industrial applications
- 3P+G configuration with 1 1/2" NPT connection for secure power distribution
- Compact and sturdy design for easy installation and long-term reliability
Similar Products
Frequently Asked Questions
What is the maximum voltage rating?
The maximum voltage rating is 750 VAC.
What is the maximum amperage rating?
The maximum amperage rating is 125 A.
What are the environmental ratings?
The environmental ratings are IP65/IP66.
What is the minimum operating temperature?
The minimum operating temperature is -15°F.
What is the maximum operating temperature?
The maximum operating temperature is 140°F.
What is the wiring capacity for this product?
The wiring capacity ranges from 2 AWG to 2/0 AWG based on THHN wire sizes.
What NPT thread sizes are available?
Available NPT thread sizes include 1”, 1 1/4”, 1 1/2”, and 2”.
What standards does this product comply with?
The product complies with ATEX and IECEx standards.
How to Install the MELTRIC DX Series Plugs and Receptacles
This guide provides step-by-step instructions for safely installing and wiring the MELTRIC DX Series plugs and receptacles in industrial applications.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Waterproof seals
- Ensure Power is Off
Before beginning installation, disconnect all sources of power to the circuit to eliminate the risk of electrical shock.
- Mount the Receptacle
Secure the receptacle to the wall box or panel using the provided mounting screws. Ensure that the pawl latch is oriented at the top for optimal operation.
- Prepare the Wires
Strip the individual wires according to the lengths specified in Table 2 of the documentation. Twist the strands of each conductor together to ensure a secure connection.
- Connect the Wires
Back out the terminal screws on the receptacle far enough to allow the conductors to pass. Insert the conductors fully into their respective terminals and tighten the screws to the torque specified in Table 3.
- Assemble the Plug
Insert the cable through the plug body and strip the cable sheath as required. Connect the wires inside the plug following the same procedure as for the receptacle.
- Verify Connections
Use a multimeter to verify that all connections are secure and that there are no short circuits before restoring power.
- Test the Installation
Once power is restored, test the plug and receptacle connection to ensure proper operation. Ensure that the plug latch is secured behind the catch on the receptacle.
