Contact for Pricing
Overview

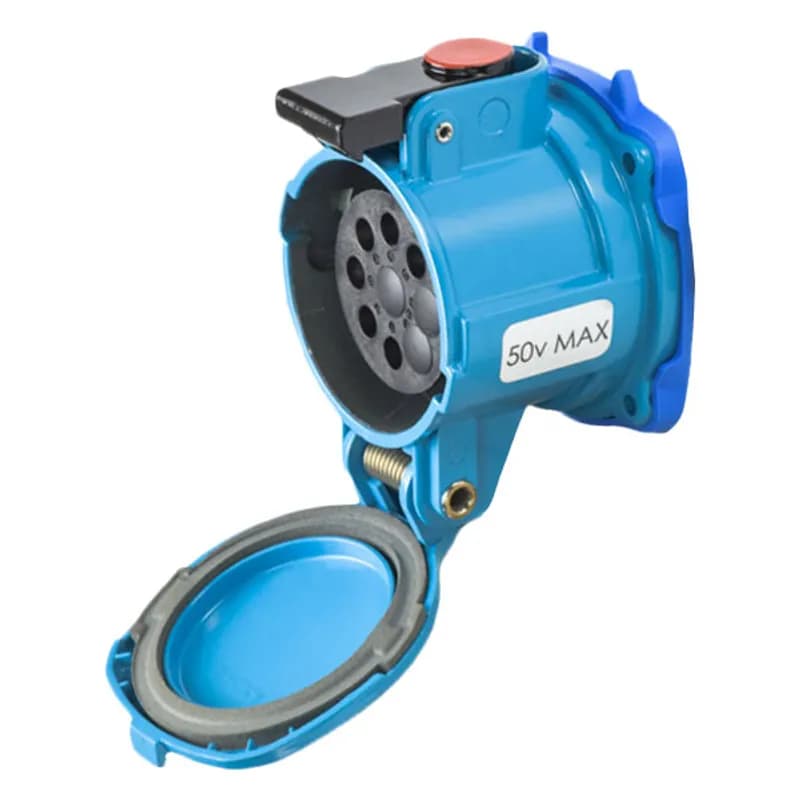

- Meltric DN9c industrial receptacle
- Size 3, 9-pole configuration
- 20A current rating, 50V voltage rating
- IP66 dust and water protection
- Durable metal blue corrosion-resistant finish
Specifications
Color | Blue |
Current Rating | 20 A |
Frequency | 60 Hz |
IP Rating | IP66 |
Material | Metal |
Poles | 9P |
Series | DN9c |
Size | Size 3 |
Voltage Rating | 50 V |
Similar Products
Frequently Asked Questions
What voltage ratings are available for this product?
The product is available in 50 VAC and 480 VAC Max/130 VDC ratings. For DC applications, the 480V model should be ordered.
What are the horsepower ratings for this device?
Horsepower ratings include 1Ø .5 hp, 1Ø 1.5 hp, 3Ø 2 hp, 3Ø 3 hp, and 3Ø 5 hp.
What is the operating temperature range?
The device operates between -40°F and 140°F. For temperatures outside this range, refer to page 254.
What environmental protection rating does this device have?
The device has IP54/IP55 environmental ratings.
What wire sizes are compatible with this device?
Based on THHN wire sizes, the device accepts a minimum of 16 AWG and a maximum of 10 AWG.
What certifications does this product meet?
The product is certified to CSA C22.2 NO. 182.1 and NOM standards.
How to Install the DN9c and DN20c Series Plugs and Receptacles
This guide provides step-by-step instructions for the safe installation and wiring of MELTRIC's DN9c and DN20c series plugs and receptacles.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Strain relief components
- Verify power is off
Before starting the installation, ensure that all sources of power to the circuit are disconnected to eliminate the risk of electrical shock.
- Mount the receptacle
Secure the receptacle to the wall box or panel using the appropriate mounting screws. Ensure the latch is positioned at the top for optimal operation.
- Prepare the cable
Insert the cable through the wall box and cut it to the desired length. Strip the cable sheath and individual wires according to the lengths specified in Table 4.
- Connect the conductors
Back out the terminal screws on the receptacle enough to allow the conductors to pass. Insert each conductor into its respective terminal and tighten the screws to the torque specified in Table 5.
- Secure the cable
Ensure that the cable sheath extends into the strain relief and tighten the compression nut to secure the cable in place.
- Test the connection
Use a multimeter to verify that the connections are secure and that there is continuity in the ground circuit before applying power.
- Calibrate and configure
If applicable, follow the manufacturer's instructions to program or configure the device settings according to your specific application needs.
- Perform final checks
Inspect the installation for any loose connections, ensure the weight of the cable is supported by the strain relief, and verify that all gaskets are intact to maintain watertightness.
Frequently Asked Questions about Meltric
What certifications and standards do Meltric products comply with?
Meltric products are rigorously certified and comply with multiple critical industrial standards, including UL 2682, UL 508, UL 98, UL 1682, and CSA 22.2 No. 182.1. Their devices are UL and CSA listed with comprehensive ratings covering electrical endurance, short circuit withstand capabilities, motor circuit disconnect switching, and environmental protection standards like Type 4X/IP69/IP69K. Specific certifications include switch-rated plug and receptacle listings that exceed standard industry requirements.
What are the key features of Meltric products?
Meltric products feature advanced safety and reliability technologies, including spring-assisted terminals, push-button circuit disconnection, enclosed arc chambers, and integrated lockout-tagout capabilities. Key innovations include silver-nickel butt-style contacts, a quick-break mechanism that disconnects circuits in 15 milliseconds, and a self-cleaning contact system. Most devices offer modular construction, optional auxiliary contacts, and automatic watertightness, with robust casings made of fiberglass-reinforced thermoplastic polyamide that resist impact and harsh environments.
What environmental ratings do Meltric products have?
Meltric products feature robust environmental ratings, including Type 4X/IP69/IP69K certification, which also meets IP66/IP67 requirements. Their devices are rated to operate in temperatures from -40°F to 140°F, with specific IK ratings for impact resistance ranging from 08 to 10 Joules depending on the product material and model. Metal-cased products typically have higher impact resistance (IK10 with 20 Joules) compared to polymer-based products (IK09 with 10 Joules).
What industries and applications are Meltric products used for?
Meltric products are used across multiple heavy industrial and hazardous environments, including chemical plants, pharmaceutical facilities, oil and gas operations, grain silos, wood processing plants, plastics manufacturing, and wastewater treatment facilities. Their specialized plugs and receptacles are engineered for high-amperage equipment, wet/washdown environments, and locations with explosive gas or dust risks, with specific product lines like DSN and DS Series designed for different industrial applications ranging from 75-100 horsepower equipment.
What technical support does Meltric offer?
Meltric offers comprehensive technical support through multiple channels. Their Customer Service group provides immediate phone support at 800-433-7642, with trained representatives located at their manufacturing facility. Additionally, Meltric's engineering team offers specialized application support, custom design solutions, and can help integrate Meltric and third-party components into power distribution products.
What are the main product lines offered by Meltric?
Meltric offers a comprehensive range of industrial electrical plugs and receptacles across several key product lines: Switch-Rated Plugs & Receptacles (DSN and DS series from 20-200A), Multipin Connectors (6-37 pin, 2-50A), Standard Duty Plugs & Receptacles (DR, PN, DSDC series), High Ampacity Plugs & Receptacles (PF/PFQ, DR400, CS1000, SP series from 300-600A), and specialized options like RETTBOX electromagnetic self-ejection devices and PNHT high-temperature connectors.
What accessories are available for Meltric products?
Meltric offers a comprehensive range of accessories for their industrial plugs and receptacles, including handles, angle adapters, junction boxes, poly conduit entry boxes, finger drawplates, and protective/padlockable inlet/plug caps. These modular accessories allow customers to customize their electrical connection solutions, with options like 30° and 70° angles, metal and poly configurations, and additional features such as auxiliary contacts and locking mechanisms.
How are Meltric products typically installed?
Meltric products are typically installed by inserting the plug into the receptacle with a simple 30-degree clockwise rotation, which latches the connection and energizes the circuit. The installation process is designed for safety, featuring automatic watertight sealing, dead-front safety shutters, and spring-loaded butt-style contacts that ensure optimal electrical performance. For motor change-outs, qualified workers follow a specific procedure including verifying de-energization, applying lockout/tagout, and carefully inserting the plug into the receptacle.
What is Meltric's warranty policy?
Meltric offers a comprehensive 5-year warranty on electrical contacts for all its plug and receptacle products. This warranty reflects the company's confidence in the durability and high-quality design of their electrical components, which are engineered to provide superior performance and reliability in industrial applications.
