Macromatic TAD1U - THR-1 Time Delay Relays TAD1U
Macromatic

TAD1U

Contact for Pricing

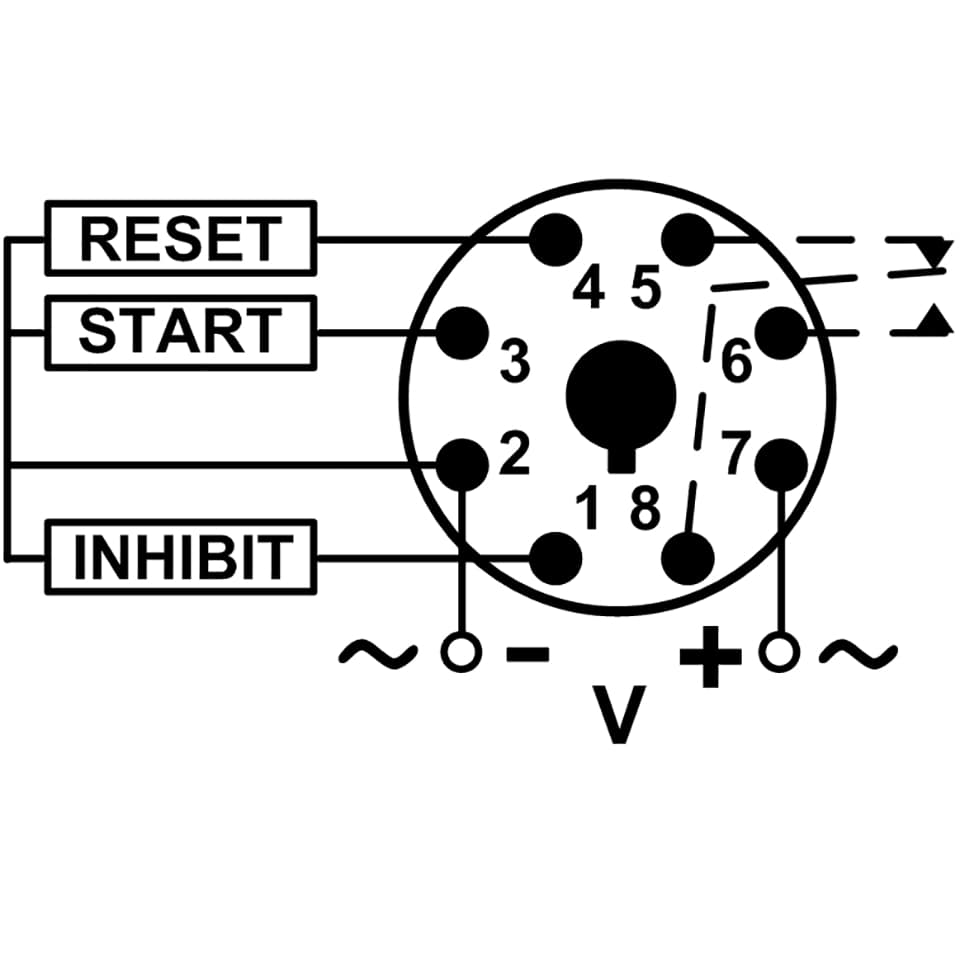

Overview

The Macromatic TAD1U is a 1/16 DIN universal time delay relay designed for industrial automation. This panel-mountable unit offers 10 selectable timing functions, including ON Delay, OFF Delay, Interval, Single Shot, and Flasher modes. The programmable timing range spans from 10ms to 9,990 hours with a repeat accuracy of ±0.01% (+/- 0.05 seconds). Its universal 24-240V AC/DC input voltage simplifies inventory by eliminating the need for multiple voltage-specific models. An LCD display provides clear readouts of time remaining in both digit and bar graph formats, with selectable count-up/down modes. The 5A SPDT relay output is rated for 250V AC resistive loads. Encapsulated construction ensures reliable operation in environments ranging from -10°C to 55°C. SKU: TAD1U. Manufacturer: Macromatic.
  • 10 Field-Selectable Functions: ON Delay, OFF Delay, Interval, Single Shot, Flasher, and more.
  • Universal 24-240V AC/DC Input Voltage: Simplifies inventory and installation.
  • Wide Timing Range: Programmable from 10ms to 9,990 hours.
  • Clear LCD Display: Shows time remaining in digit and bar graph formats, with count-up/down options.
  • 5A SPDT Relay Output: Rated for 250V AC resistive loads.

Specifications

Current Rating
5 A
Mounting Type
Panel-Mount
Poles
SPDT
Series
THR-1
Size
1/16 DIN
Voltage Rating
24-240V AC/DC
RTXD Extractor Tool

6896057-1

RTXD Extractor Tool
RTXP 18

RK926011-BC

RTXP 18
Relay Accessories, Sockets & Clips, Printed Circuit Board, Phenolic, Printed Circuit Board, 6, Socket, Potter & Brumfield R10

1-1393143-3

Relay Accessories, Sockets & Clips, Printed Circuit Board, Phenolic, Printed Circuit Board, 6, Socket, Potter & Brumfield R10
Relay Accessories, Sockets & Clips, Solder, Polyester, Printed Circuit Board, 2, Socket, Potter & Brumfield R10

1-1393143-6

Relay Accessories, Sockets & Clips, Solder, Polyester, Printed Circuit Board, 2, Socket, Potter & Brumfield R10
Power supply for DIN-rail

PS-60

Power supply for DIN-rail
IP67 SCP-X Extreme Environment Series Power Supply. Double Stacked, Output Power 2 x 100W, Output Voltage 24 Vdc, Output Current 7.6 A total, 3.8 A per pair

SCP102D24X-C02

IP67 SCP-X Extreme Environment Series Power Supply. Double Stacked, Output Power 2 x 100W, Output Voltage 24 Vdc, Output Current 7.6 A total, 3.8 A per pair

Frequently Asked Questions

What is the input voltage range for the Macromatic TAD1U?

The Macromatic TAD1U features a universal input voltage of 24-240V AC and 24-240V DC.

How many timing functions does the TAD1U offer?

The TAD1U offers 10 field-selectable timing functions, including various ON Delay, OFF Delay, Interval, and Flasher modes.

What is the programmable timing range for the TAD1U?

The programmable timing range for the TAD1U is from 10ms up to 9,990 hours.

What is the output contact rating of the Macromatic TAD1U?

The TAD1U has 5A SPDT output contacts rated for 250V AC resistive loads.

What is the operating temperature range for the TAD1U?

The TAD1U is designed to operate reliably in temperatures ranging from -10°C to 55°C.

Does the TAD1U have a display for time remaining?

Yes, the TAD1U features an LCD display that shows time remaining in both digit and bar graph formats.

What type of mounting does the Macromatic TAD1U support?

The TAD1U is a 1/16 DIN style unit that supports panel, track, or surface mounting, and includes a panel-mounting adapter.
