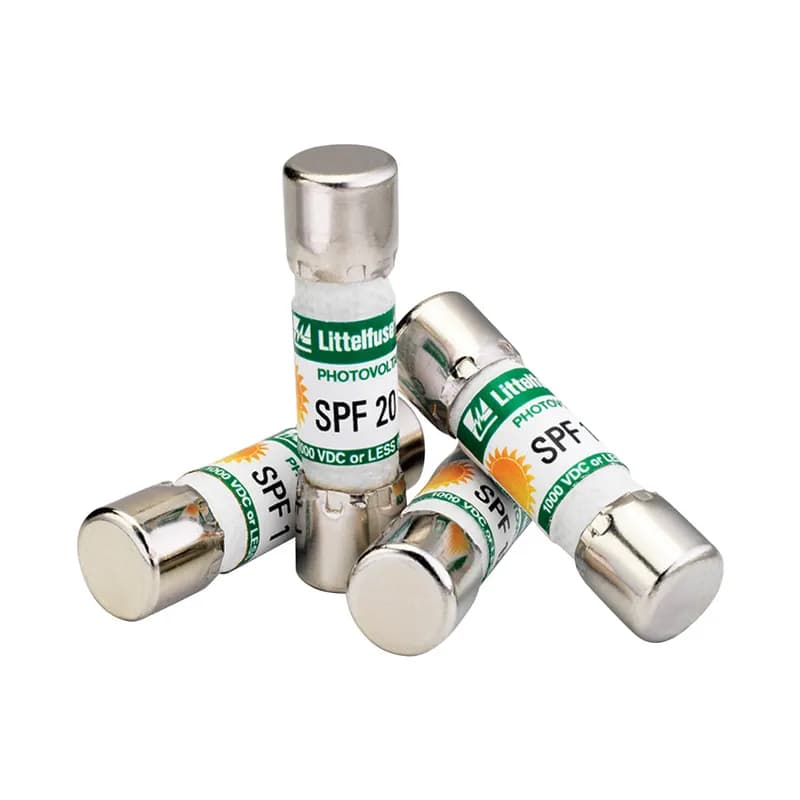

Littelfuse SPF030H - The SPF Solar Protection Fuse series has been specifically designed for the protection of photovoltaic (PV) systems. This family of Midget style fuses (10 x 38 mm) can safely protect PV modules and conductors from reverseovercurrent conditions. As PV systems have grown in size, so have the corresponding voltage requirements. This increase in system voltage has typically been intended to minimize power loss associated with long conductor runs. Standard circuit protection devices are not designed to completely protect photovoltaic panels. However, the SPF series is UL Listed to safely interrupt faulted circuits up to this demanding voltage level. Littelfuse offers multiple ampere ratings to match specific requirements in a variety of applications.
Littelfuse

SPF030H

Alternate Item Number: 0SPF030.H

UPC: 079458175998

Documents & Media
BrochureTechnical BulletinSpecification SheetVideo Clip

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The Littelfuse SPF030H is a specialized 10 x 38 mm midget-style fuse engineered for the critical protection of photovoltaic (PV) systems. Designed to safeguard PV modules and conductors against reverse-overcurrent conditions, this fuse series addresses the escalating voltage requirements of modern PV installations, which aim to minimize power loss over long conductor runs. Unlike standard circuit protection devices, the SPF series, including the SPF030H, is UL Listed to safely interrupt faulted circuits at demanding voltage levels up to 1000 V dc. Littelfuse provides a range of ampere ratings within this series to precisely match application needs. Key features of the SPF030H include its full-range, fast-acting design, which effectively mitigates common low-overload faults and prevents nuisance tripping caused by temperature fluctuations—a crucial benefit for outdoor PV environments. With a robust 1000 V dc voltage rating, this fuse is built for high-voltage DC applications. Its maximum interrupting rating is 20 kA for ampere ratings from 1 A to 20 A, and 50 kA for 25 A to 30 A. The fuse body is constructed from durable melamine, complemented by high-conductivity copper alloy caps, ensuring long-term reliability. A time constant of ≤ 2ms facilitates rapid response to fault conditions, thereby reducing the risk of damage to sensitive PV components. The SPF030H is RoHS compliant and holds UL, CSA, and TÜV certifications, adhering to global safety standards for solar applications. Available in both ferrule and PCB mount versions, the SPF030H offers flexibility in installation. Dead-front holder options enhance safety in combiner boxes and control panels. For streamlined integration, Littelfuse recommends the LPHV 1000 V dc POWR-Safe Series fuse holder and 125003 fuse clips. The compact 10 x 38 mm form factor simplifies integration into existing systems. Littelfuse, a leader in circuit protection, offers the SPF series as a dependable solution for the renewable energy sector. For technical documentation, visit Littelfuse.com/SPF. Distributed by Gross Automation at +1 (262) 252-1600 or [email protected].
  • Specifically designed for photovoltaic (PV) systems
  • UL Listed for safe interruption of faulted circuits up to 1000 V dc
  • Full-range, fast-acting design prevents nuisance tripping
  • Durable melamine body with copper alloy caps for reliability
  • Available in ferrule and PCB mount versions
  • Max interrupting rating: 20 kA (1–20 A) or 50 kA (25–30 A)
  • RoHS compliant with melamine body and copper alloy caps
  • Recommended for inverters, combiner boxes, and battery charge controllers

Specifications

Application
1000 VDC PV
Brand Name
Littelfuse
Current Rating
30 A
Series
SPF
Size
10 x 38 mm
Special Features
Solar
Standard
UL 2579 IEC 60269-6
Sub Brand
SPF Series
Type
Full Range
Package Weight (Imperial)
0.018 L
Package Weight (Metric)
8.110 g

Similar Products

SPF030HXR

Size: 10x38 mm

Series: SPF Solar Protection Fuse

SPF030

Voltage Rating: 1000 Vdc

Size: 10x38 mm

SPF010H

SPF010HXR

Current Rating: 10 A

Series: SPF Solar Protection Fuse

Voltage Rating: 1500 V DC

SPF020H

Current Rating: 20 A

Series: SPF Solar Protection Fuse

SPF020HXR

Current Rating: 20 A

Series: SPF Solar Protection Fuse

Series: SPF Solar Protection Fuse series
