Littelfuse SE-MUX - GF/GC TERM MULTIPLEXER. GROUND FAULT/GROUND CHECK TERMINATION MULTIPLEXER.
Littelfuse

SE-MUX

UPC: 079458989465

Documents & Media
Brochure

Contact for Pricing

Overview

The Littelfuse SE-MUX (SKU: SE-MUX) Ground Fault/Ground Check Termination Multiplexer enhances industrial electrical safety by detecting and terminating ground fault and ground check circuits. Designed for industrial control, power distribution, and automation systems, the SE-MUX provides adjustable trip delay for system coordination, separate annunciation for ground-fault and ground-check faults, and ground-check LED indication for open/short wire detection. It features CT-loop monitoring with alarms for unconnected CTs, high-induced-AC rejection for high-voltage applications, and a DFT (Harmonic) filter to prevent false operations. The zener-characteristic termination assembly ensures reliable ground-check loop verification, while fail-safe circuits maintain safety during equipment failures. Additional features include conformal coating for harsh environments and an optional XGC feature for ground-check monitoring up to 10 km. Compatible with SE-CS10 Series, SE-TA6A Series (for SE-134C), or SE-TA12A Series (for SE-135), the SE-MUX is a critical component for maintaining electrical safety in industrial settings.
  • Adjustable trip delay for system coordination
  • Separate annunciation for ground-fault and ground-check faults
  • Ground-check LED indication for open/short wire detection
  • CT-loop monitoring with alarms for unconnected CTs
  • High-induced-AC rejection for high-voltage applications

Specifications

Application
Industrial
Brand Name
Littelfuse
Material
Poly
Special Features
High Quality
Sub Brand
Relay Series
Type
Protection Relays and Controls

Similar Products

SE-MRE-15

Voltage Rating: 15 kV

Material: High-grade materials

Ip Rating: IP66/IP67

SE-MRE-25/35

SE-MRE-600

Size: 4.8 H x 4.7 W x 3.3 D in

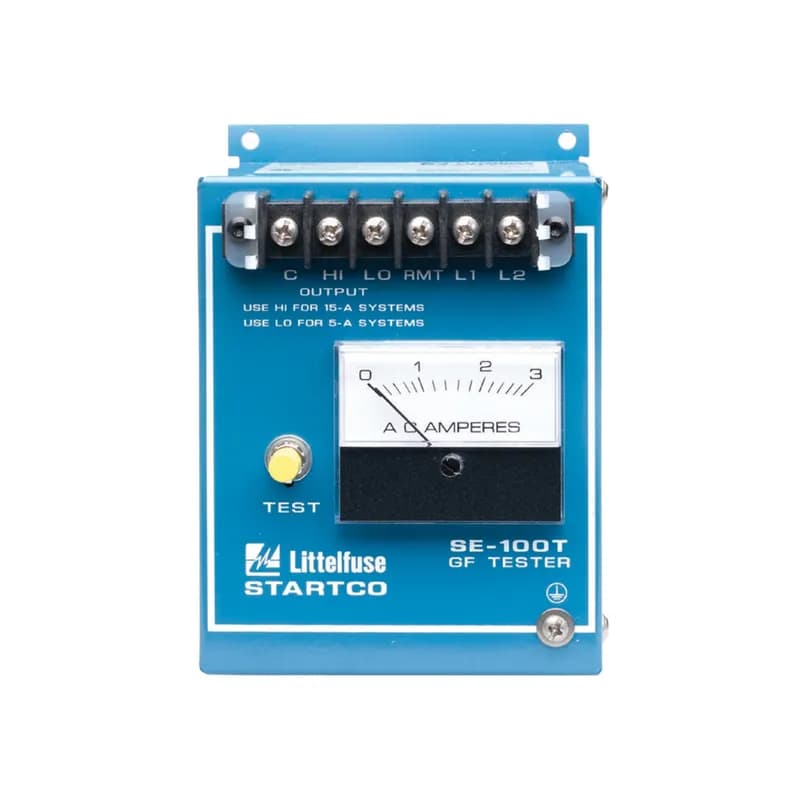

SE-100T

Application: NA

Special Features: Tests the current pickup level of ground-fault protection

Standard: CSA

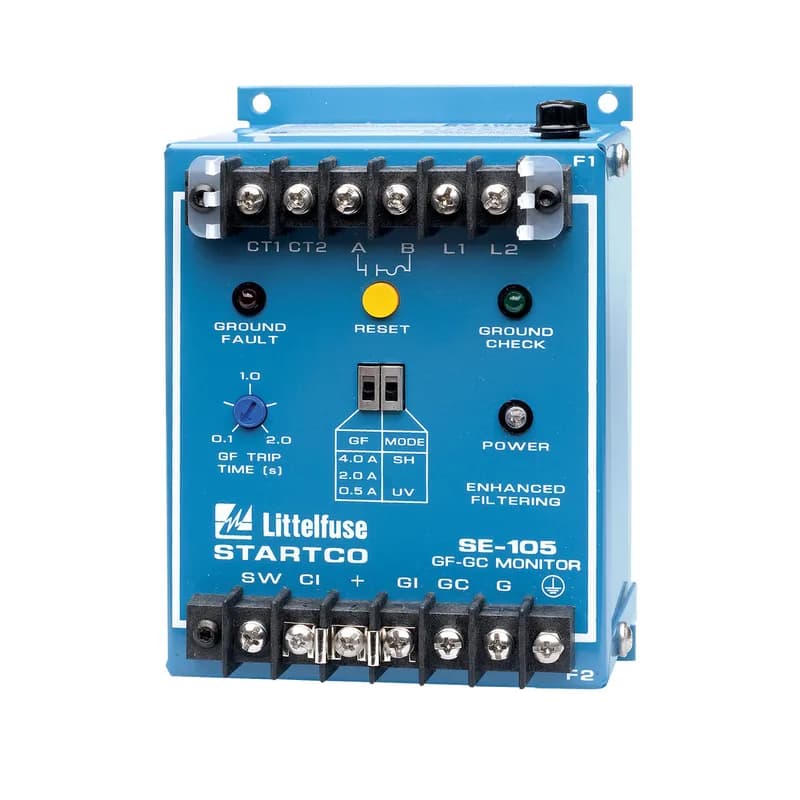

SE-105
