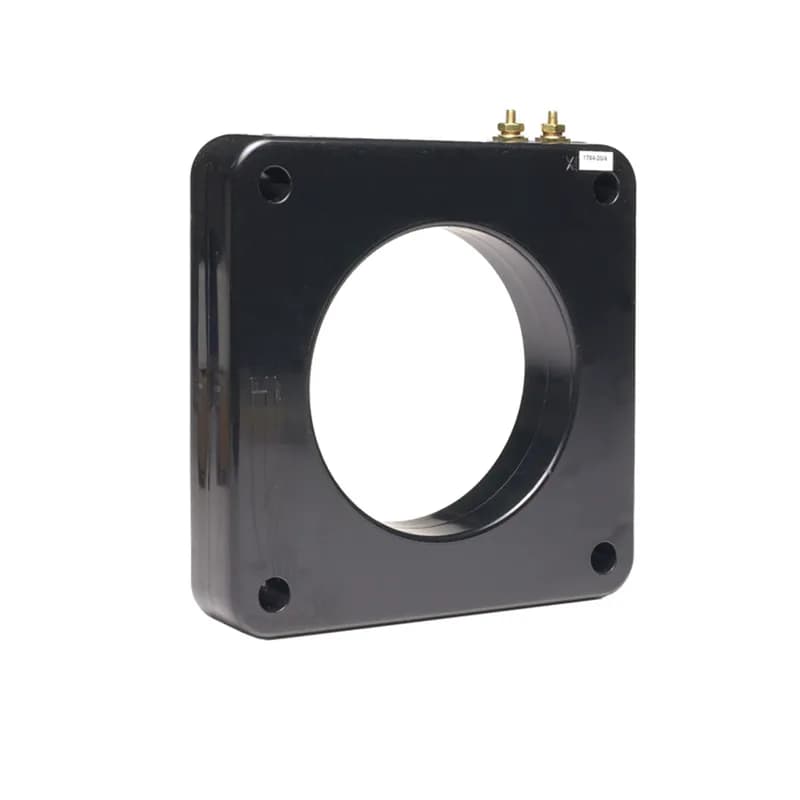

Littelfuse SE-CS10-6 - The SE-CS10 series current transformers (CTs) are key components of the Littelfuse protection relay product line. Littelfuse SE-134C and SE-135 Ground-Fault Ground-Check Monitors are designed specifically for use with the SE-CS10 CTs. A Littelfuse SE-330 Neutral-Grounding-Resistor Monitor and a Littelfuse SE-701 Ground-Fault Monitor can also be equipped with the SE-CS10 series to achieve the desired ground-fault-trip settings. Littelfuse motor- and feeder-protection relays can also make use of the SE-CS10 series either to measure phase current or ground-fault current.
Littelfuse

SE-CS10-6

Alternate Item Number: SE-CS10-6

UPC: 079458989182

Documents & Media
BrochureTechnical BulletinTechnical DrawingSpecification Sheet

Contact for Pricing

Overview

The Littelfuse SE-CS10-6 Current Transformer (CT) is a vital component engineered for precision and reliability within industrial electrical protection systems. As a key element of the renowned Littelfuse protection relay product line, the SE-CS10-6 is specifically designed to facilitate accurate current measurement, crucial for safeguarding sensitive equipment and personnel from electrical faults. This versatile CT is an integral part of several advanced Littelfuse monitoring solutions. It is engineered for seamless integration with the Littelfuse SE-134C and SE-135 Ground-Fault Ground-Check Monitors, ensuring robust detection and mitigation of ground faults. Furthermore, the SE-CS10-6 can be equipped with Littelfuse's SE-330 Neutral-Grounding-Resistor Monitor and the SE-701 Ground-Fault Monitor. This compatibility allows for the precise configuration of ground-fault-trip settings, a critical aspect of maintaining system stability and preventing cascading failures in complex industrial networks. Beyond dedicated ground-fault monitoring, the SE-CS10-6 series also serves motor- and feeder-protection relays. In these applications, it excels at measuring both phase current and ground-fault current. This dual capability provides operators with comprehensive insight into system performance and potential anomalies, enabling proactive maintenance and preventing costly downtime. The ability to accurately measure phase current is fundamental for load monitoring and ensuring that electrical systems operate within their designed parameters, while the ground-fault current measurement is paramount for detecting unintended current paths to ground, a common precursor to serious electrical incidents. The Littelfuse SE-CS10-6 represents a commitment to industrial safety and operational efficiency. By providing accurate and reliable current data, it empowers electrical engineers and maintenance professionals to implement effective protection strategies. Its robust construction and adherence to high manufacturing standards, characteristic of Littelfuse products, ensure long-term performance even in demanding industrial environments. Selecting the SE-CS10-6 means investing in a proven solution that enhances system integrity, reduces the risk of electrical hazards, and supports the continuous operation of critical industrial processes. Its role in enabling precise trip settings directly contributes to minimizing damage during fault events and expediting system recovery. Key Features and Benefits: * **Precise Current Measurement:** Delivers accurate readings for both phase and ground-fault currents, essential for effective protection. * **System Integration:** Designed for seamless compatibility with Littelfuse SE-134C, SE-135, SE-330, and SE-701 protection relays. * **Enhanced Safety:** Facilitates accurate ground-fault-trip settings to prevent electrical hazards and equipment damage. * **Versatile Application:** Suitable for ground-fault monitoring, motor protection, and feeder protection relays. * **Reliable Performance:** Built to Littelfuse's high standards for durability and long-term operation in industrial settings. When specifying current transformers for critical industrial applications, the Littelfuse SE-CS10-6 stands out as a dependable choice, offering the accuracy and compatibility required for advanced electrical protection schemes.
  • Littelfuse SE-CS10-6 Current Transformer (CT) for industrial protection systems.
  • Key component for Littelfuse SE-134C/SE-135 Ground-Fault Ground-Check Monitors.
  • Enables precise ground-fault-trip settings with SE-330 and SE-701 monitors.
  • Measures phase current and ground-fault current for motor and feeder protection.
  • Ensures reliable electrical system safety and operational efficiency.

Specifications

Application
Industrial
Brand Name
Littelfuse
Special Features
High Quality
Sub Brand
SE CS10 Series
Type
Protection Relays and Controls
Package Weight (Imperial)
1.980 L
Package Weight (Metric)
0.900 kg
