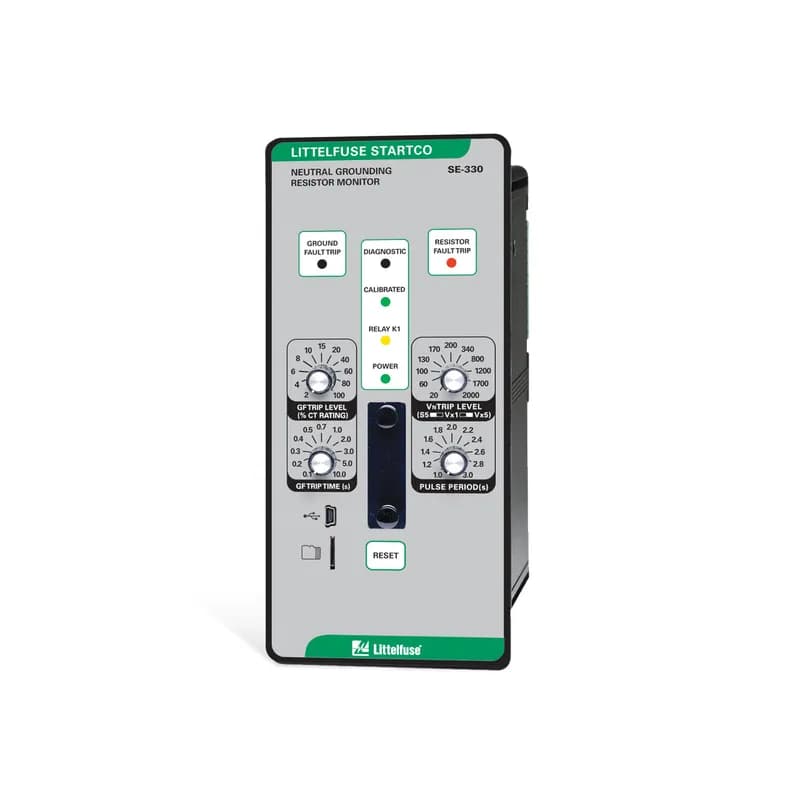

Littelfuse SE-330-00-00 - SE-330-00-00 is an advanced ground-fault and neutral-grounding resistor monitor with a supply voltage ac of 65–265 and a supply voltage dc of 85–275. Network communications is offered via USB.
Littelfuse

SE-330-00-00

Alternate Item Number: SE-330-00-00

UPC: 079458988321

Documents & Media
BrochureTechnical BulletinSpecification SheetVideo ClipUser Manual

Contact for Pricing

Overview

The Littelfuse SE-330-00-00 stands as a sophisticated and advanced solution for critical ground-fault and neutral-grounding resistor monitoring within industrial electrical systems. Engineered for unwavering reliability and exceptional precision, this device is indispensable for maintaining the integrity and safety of power distribution networks. Its robust design accommodates a broad spectrum of operational environments, featuring a versatile supply voltage range that extends from 65 to 265 AC volts and 85 to 275 DC volts, ensuring seamless integration with diverse power infrastructures. Central to the SE-330-00-00's advanced functionality is its integrated network communication capability, specifically through a convenient USB interface. This feature facilitates straightforward data acquisition, system diagnostics, and remote monitoring, empowering engineers and maintenance personnel with real-time insights into system status. The ability to connect via USB streamlines the process of configuration, firmware updates, and performance analysis, contributing significantly to proactive maintenance strategies and minimizing potential downtime. This monitor is particularly vital in applications where the detection of ground faults and the continuous assessment of neutral-grounding resistor integrity are paramount. Such applications commonly include: * **Industrial Manufacturing Facilities:** Protecting sensitive machinery and personnel from electrical hazards. * **Power Generation Plants:** Ensuring the stability and safety of critical generation equipment. * **Data Centers:** Safeguarding continuous power supply to vital IT infrastructure. * **Utility Substations:** Maintaining the reliability of the electrical grid. * **Mining and Petrochemical Operations:** Operating safely in hazardous and demanding environments. The Littelfuse SE-330-00-00 is built upon Littelfuse's legacy of providing high-quality, dependable electrical protection components. Their commitment to innovation and rigorous testing ensures that users receive a product that not only meets but exceeds industry standards for performance and longevity. By implementing the SE-330-00-00, organizations can enhance their safety protocols, improve operational efficiency, and ensure compliance with stringent electrical safety regulations. The device's intuitive operation and comprehensive monitoring capabilities make it an essential tool for any facility prioritizing electrical system health and operational continuity. Its advanced features, combined with the trusted Littelfuse brand, make the SE-330-00-00 an investment in robust electrical system management.
  • Advanced ground-fault and neutral-grounding resistor monitoring
  • Wide supply voltage range: 65-265V AC, 85-275V DC
  • Network communications via USB for easy integration and diagnostics
  • Designed for reliable and precise monitoring in industrial applications
  • Enhances system safety, efficiency, and proactive maintenance strategies

Specifications

Application
Low- and medium-voltage transformers and generators
Brand Name
Littelfuse
Connection Type
USB
Special Features
Continuous NGR monitoring
Sub Brand
SE 330 Series
Type
Neutral-grounding resistor monitor
Voltage Rating
AC 65–265V / DC 85–275V
Voltage Rating
65–265 V AC / 85–275 V DC
Package Dimensions (L x W x H)
5.8 IN x 3.9 IN x 8.4 IN
Package Dimensions (L x W x H)
14.732 cm x 9.906 cm x 21.336 cm
Package Weight (Imperial)
4.400 L
Package Weight (Metric)
2.000 kg

Similar Products

SE-330-00-01

Voltage Rating: 65–265 VAC / 85–275 VDC

SE-330-00-10

SE-330-01-00

Voltage Rating: 65–265 VAC / 85–275 VDC

Connection Type: USB / DeviceNet

Mounting Type: DIN-rail mountable

SE-330-02-00

Series: SE-330

SE-330-03-00

Voltage Rating: 65–265 VAC, 85–275 VDC

Connection Type: USB, Ethernet (Dual RJ45)

Mounting Type: DIN-Rail

SE-330-04-00
