Littelfuse S77-C134-70000 - RELAY ELEC GF/GC PANEL MT KIT. Relay Electronic Ground Fault/Ground Check panel mount kit.
Littelfuse

S77-C134-70000

UPC: 079458987850

Contact for Pricing

Overview

The Littelfuse S77-C134-70000 is an electronic Ground Fault/Ground Check panel mount relay kit designed for industrial monitoring. This unit prevents electrical hazards, equipment damage, and operational disruptions by detecting ground faults and monitoring the integrity of the grounding path. It offers separate annunciation for ground-fault and ground-check faults, providing clear fault indication. Key features include an adjustable trip delay for system coordination, integrated LED indication for status monitoring, and CT-loop monitoring that alarms if the CT is not connected. The S77-C134-70000 boasts high-induced AC rejection and a DFT (Harmonic) filter to prevent false operations, making it suitable for applications with high voltages and long cables, as well as those with harmonic content. Conformal-coated circuit boards offer enhanced protection in harsh environments. An optional XGC accessory extends ground-check monitoring cable length up to 10 km. This kit is compatible with Littelfuse SE-CS10 Series, SE-TA6A Series, SE-CS40 Series, and SE-IP65CVR-G accessories. Ideal for manufacturing, automation, and process control applications.
  • Detects ground faults and monitors grounding path integrity
  • Separate annunciation for ground-fault and ground-check faults
  • Adjustable trip delay for system coordination
  • High-induced AC rejection and DFT (Harmonic) filter
  • Conformal-coated circuit boards for harsh environments

Specifications

Application
Industrial
Brand Name
Littelfuse
Special Features
High Quality
Sub Brand
Relay Series
Type
Protection Relays and Controls

Similar Products

S75-M16A-20030

Size: 6 m (19')

Poles: 6C

Connection Type: MPU/ICT 6C Connect

You May Also Be Interested In

RELAY ELEC GF/GC - NGR SHOCK MOUNT KIT. RELAY ELEC GROUND FAULT/GROUND CHECK - NGR SHOCK MOUNT KIT.

SE-SMO-01

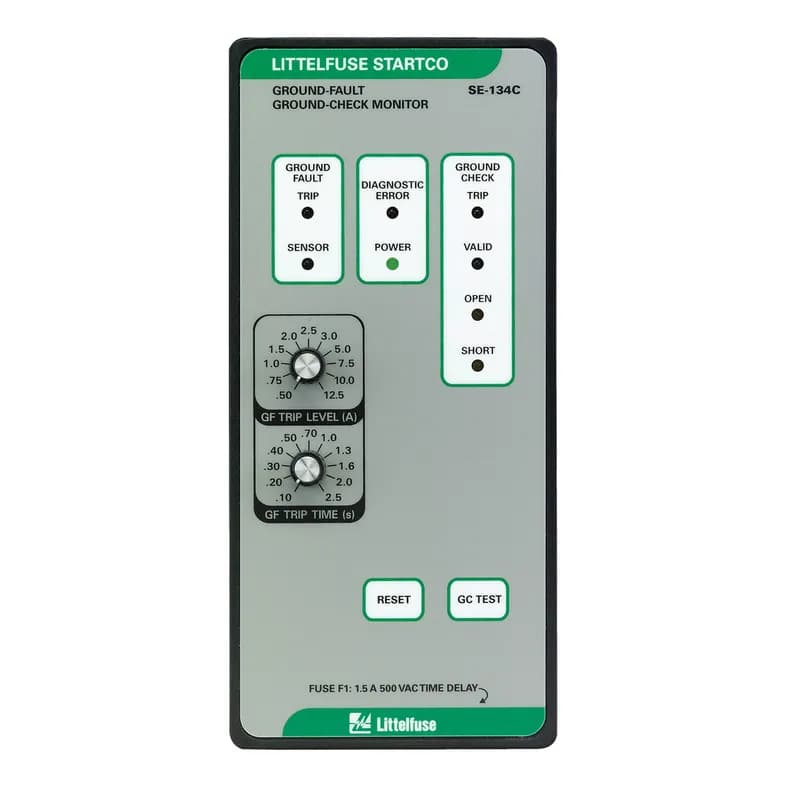

The SE-134C/SE-135 is a microprocessor-based, combination ground-wire monitor and ground-fault relay for resistance-grounded or solidly grounded systems. It continuously monitors the integrity of the ground conductor to protect portable equipment from hazardous voltages caused by ground faults. The SE-134C/SE-135 is field proven in monitoring trailing cables on large mobile equipment such as drag-lines, mining shovels, shore-to-ship power cables, dock-side cranes, stacker-reclaimers, submersible pumps, and portable conveyors.

SE-134C-00
