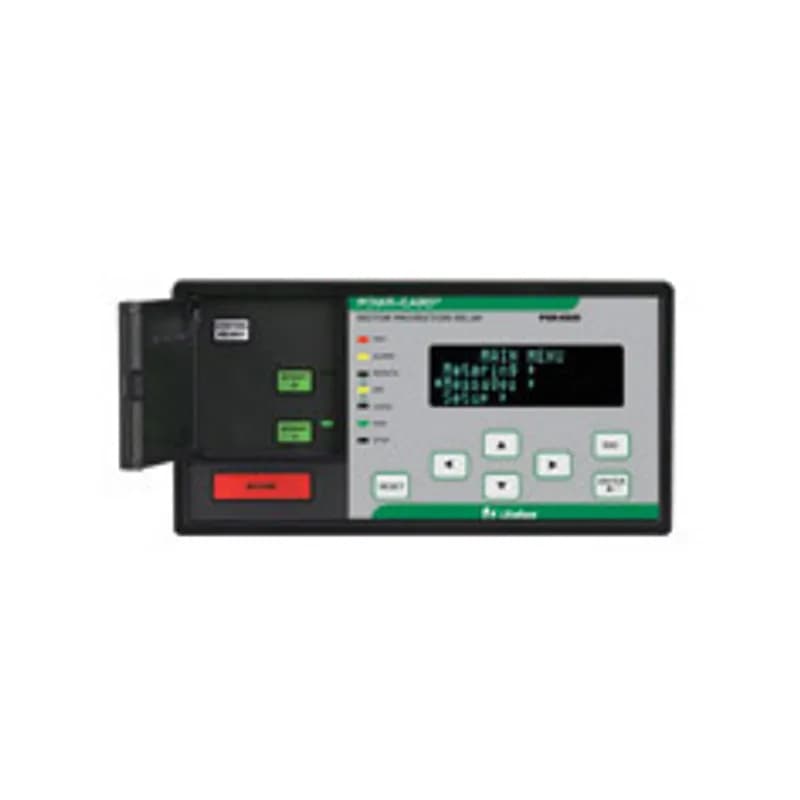

Littelfuse MPS-CTU-03-00 - MPS CONTROL UNIT PROFIBUS. The MPS Motor Protection System monitors voltage, current, and temperature to provide a comprehensive package of 22 protective functions. The MPS is a modular system with integrated protection, motor control, metering, and data-logging functions. This system is typically used to provide protection for three-phase low- and medium-voltage, medium-to high-horsepower induction motors.
Littelfuse

MPS-CTU-03-00

UPC: 079458978032

Documents & Media
BrochureTechnical BulletinTechnical DrawingSpecification SheetUser Manual

Contact for Pricing

Overview

The Littelfuse MPS-CTU-03-00 Profibus Control Unit is a critical component of the MPS Motor Protection System, delivering comprehensive motor protection, control, metering, and data-logging for three-phase low- and medium-voltage induction motors. This modular control unit integrates 22 protective functions, including overcurrent, undervoltage, overvoltage, phase imbalance, ground fault, and thermal overload detection, ensuring maximum uptime and operational efficiency in demanding industrial environments. Designed for seamless integration into existing Profibus communication networks, the MPS-CTU-03-00 provides real-time monitoring of voltage, current, and temperature with true RMS and DFT measurements, peak detection, and positive/negative sequence analysis. The unit supports 5-A or 1-A secondary phase current transformers, up to 600V phase voltage inputs without potential transformers, and sensitive earth-leakage detection via 5-A or 1-A secondary or zero-sequence transformers. Additional inputs include 8 digital inputs, 1 analog input/output, a tachometer for high-speed pulse monitoring, and an IRIG-B time-code input for precise synchronization. The MPS-CTU-03-00 features 5 relay outputs, 24V DC supply for connected modules (e.g., MPS-OPI operator interface, MPS-RTD temperature input module), and RS-485 network communications as standard, with optional Profibus connectivity. The unit is 1/2 DIN size, surface-mountable, and conformally coated for durability in harsh industrial conditions. Certified to CSA, UL, and RCM standards, it is ideal for protecting medium-to-high-horsepower motors in manufacturing, water/wastewater treatment, oil/gas, mining, and power generation sectors. Key applications include safeguarding critical assets in processing plants, ensuring compliance with safety standards in hazardous locations, and enabling remote monitoring via Profibus networks. The MPS-CTU-03-00 is a trusted solution for engineers prioritizing reliability, modularity, and advanced motor protection in industrial automation systems.
  • 22 protective functions including overcurrent, undervoltage, and thermal overload
  • Profibus communication for seamless industrial network integration
  • Supports 5-A/1-A phase current, 600V phase voltage, and sensitive earth-leakage detection
  • 8 digital inputs, 5 relay outputs, 1 analog I/O, and tachometer input
  • 1/2 DIN size, surface-mountable, conformally coated for harsh environments

Specifications

Application
NA
Brand Name
Littelfuse
Connection Type
Screw Terminal / Plug-in
Current Rating
5 A or 1 A
Mounting Type
Surface-mountable
Series
MPS
Size
1/2 DIN
Special Features
Monitors voltage, current, and temperature
Standard
CSA
Sub Brand
MPS Series
Type
Motor Protection
Voltage Rating
600 V

Similar Products

MPS-CTU-01-00

Voltage Rating: 65–265 V ac / 80–275 V dc

Connection Type: RS-485, screw terminals

Mounting Type: Surface

MPS-CTU-02-00

Voltage Rating: 65–265 V ac / 80–275 V dc

Series: MPS-CTU

MPS-CTU-04-00

Voltage Rating: 65–265 V ac / 80–275 V dc

Connection Type: RS/TIA-485 - Ethernet

Voltage Rating: 65–265V AC / 80–275V DC

MPS-RTD-01-00

Special Features: Eight programmable inputs

Sub Brand: MPS RTD Series

Type: Input Modules

MPU-CTI-RT-00

Application: Industrial

Special Features: High Quality

Sub Brand: Relay Series

MPS-DIF-01-00

You May Also Be Interested In

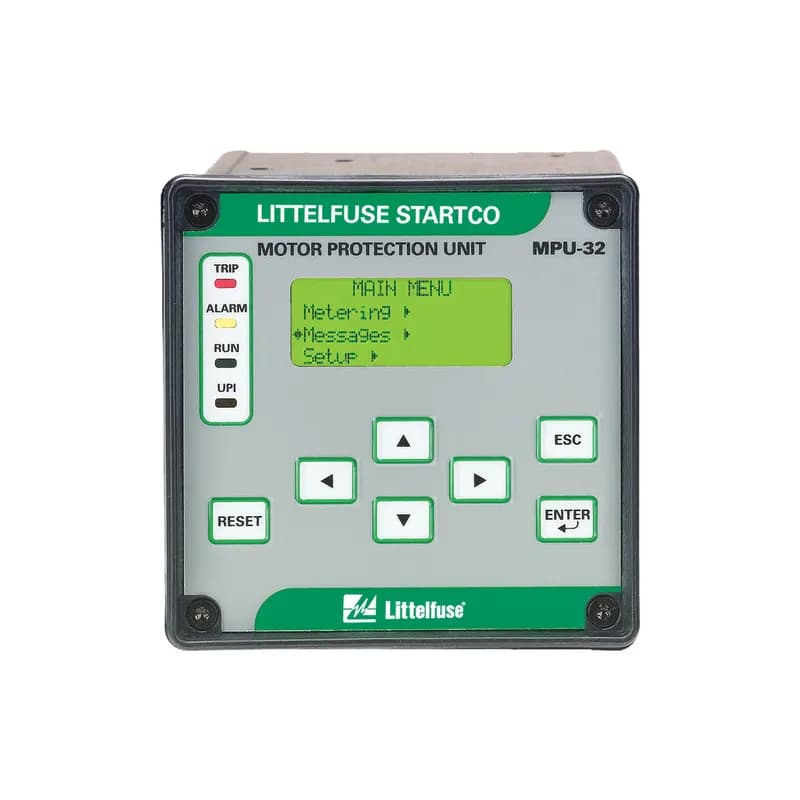

The MPU-32-01-01 is a motor protection unit with a supply voltage between 65–265 V ac and 80–275 V dc. This unit provides current and temperature-based protection with communication via RS/TIA-232-RS/TIA-485.

MPU-32-01-01

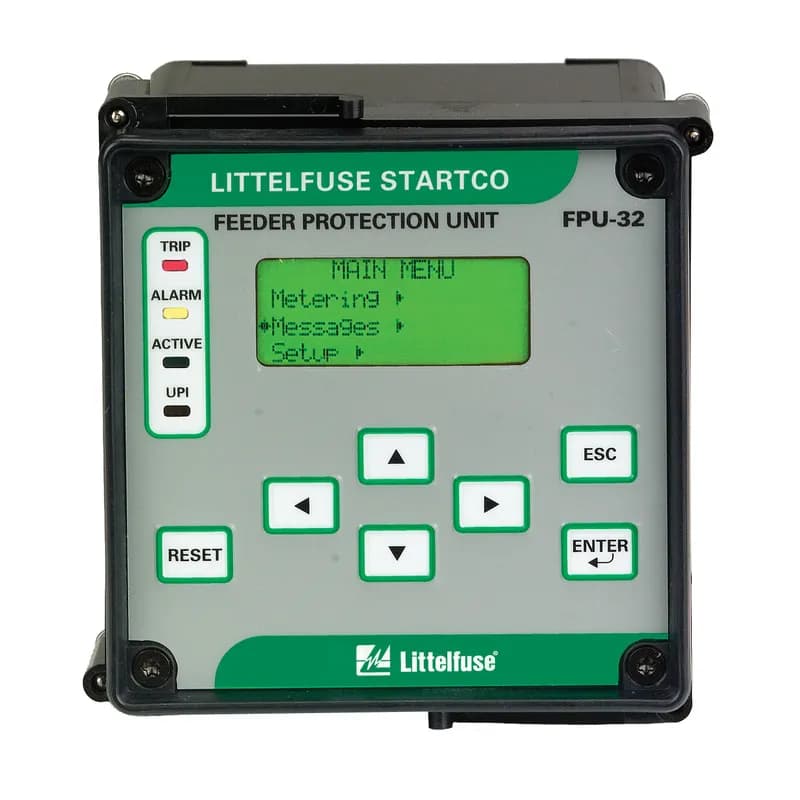

The FPU-32 Feeder Protection Unit provides integrated protection, metering, and data-logging functions. It is an excellent choice for retrofitting and upgrading older relays because of its compact size and ability to use existing CTs. The FPU-32 is used to protect distribution feeders in processing, manufacturing, petroleum, chemical, and wastewater treatment facilities.
