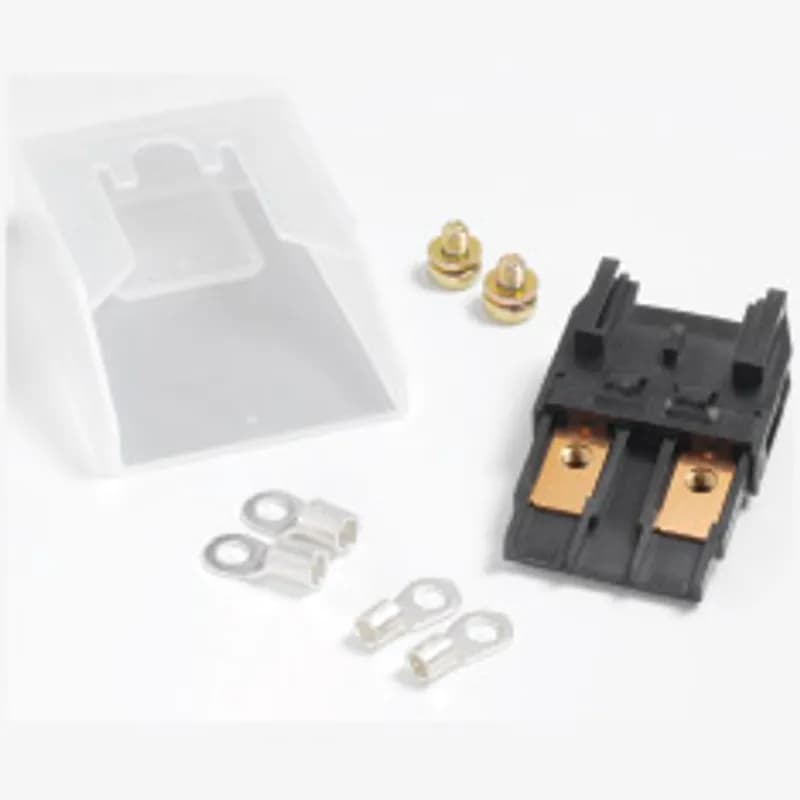

Littelfuse MAB1 - ACS MAXI SPLASHPROOF FUSEBLOCK BOX. Use with MAXI™ fuses up to 60 amps. Safe/easy replacement for hard to replace fusible link wire. Perfect for high amp audio applications. Interlocking block feature permits two pole position installation. Contains screw terminals. Optional dust cover available.
Littelfuse

MAB1

Alternate Item Number: 0MAB0001F

UPC: 079458006872

Documents & Media
Brochure

Contact for Pricing

Overview

The Littelfuse MAB1 MAXI Splashproof Fuseblock Box (SKU: MAB1) offers robust circuit protection for high-current applications, accommodating MAXI™ fuses up to 60 amps. This unit serves as a safe and straightforward replacement for challenging fusible link wire installations, making it particularly suitable for high-amp audio systems and other power-intensive automotive and industrial setups. Its splashproof design ensures reliable operation in environments where moisture may be present. A key feature is the interlocking block capability, allowing for secure two-pole position installations to create stable multi-circuit configurations. The MAB1 is equipped with convenient screw terminals for easy and dependable wiring connections. For enhanced protection against environmental contaminants, an optional dust cover (Part Number: 01520007Z) is available. This fuseblock is designed to work with MAXI fuses, which utilize Littelfuse's patented Diffusion Pill Technology, providing excellent time delay characteristics and low heat dissipation—ideal for motor-powered applications with significant inrush currents. Manufactured in France, the MAB1 conforms to UNSPSC code 39121606. For optimal performance, fuse selection should be based on specific application requirements, such as using a Littelfuse MAXI 32V 60A fuse (e.g., SKU: 0299060.L or 0299060.ZXNV) for motor applications demanding robust overcurrent protection. The MAB1 series is specifically designed for MAXI fuses up to 60 amps, offering a direct replacement for hard-to-replace fusible link wire and is perfect for high amp audio applications. Its interlocking block feature permits two-pole position installation, and it contains screw terminals for secure connections. The splashproof rating ensures durability in various conditions.
  • Accommodates MAXI™ fuses up to 60 amps
  • Splashproof design for environmental protection
  • Interlocking block feature for two-pole installations
  • Screw terminals for secure wiring
  • Safe and easy replacement for fusible link wire

Specifications

Application
Automotive
Brand Name
Littelfuse
Connection Type
Screw Terminal
Current Rating
60 A
Ip Rating
IP66/IP67
Poles
2P
Special Features
Plastic
Standard
RoHS
Sub Brand
MAB1 Series
Type
Inline screw and terminal
Package Dimensions (L x W x H)
2 IN x 1 IN x 1 IN
Package Dimensions (L x W x H)
5.08 cm x 25.4 mm x 25.4 mm
Package Weight (Imperial)
0.250 L
Package Weight (Metric)
0.113 kg
