Contact for Pricing
Minimum Qty: 2
Multiplier: 2
*Contact for lower quantities*
Overview
- Accommodates fuses up to 1200A at 1000V AC/DC
- UL 94 V-0 thermoplastic insulator with UL Recognized (E14721), cURus Recognized (E14721), and CSA Certified (73160) approvals
- Zinc-plated steel terminals with nut and belleville washer for secure connections
- Modular design simplifies panel board mounting and reduces inventory requirements
- 200 kA withstand rating for protection against overcurrent and short-circuit events
- Made in the USA
- UL Recognized, cURus Recognized, CSA Certified
Specifications
Connection Type | Stud |
Connection Type | Stud-type |
Current Rating | 1200A |
Material | Thermoplastic |
Material | Thermoplastic, Zinc-plated steel |
Mounting Type | Panel Board |
Mounting Type | Modular, Panel board |
Series | LSCR |
Voltage Rating | 1000V AC/DC |
LSCR102

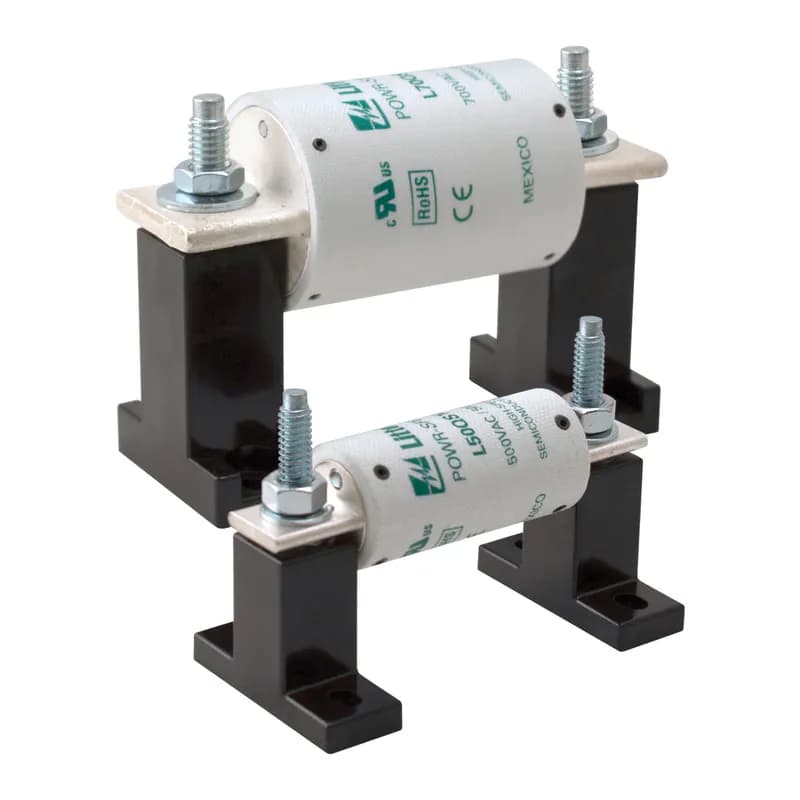

Littelfuse LSCR Series is a comprehensive line of modular fuse blocks, designed to accommodate a wide range of High-Speed and UL Power Fuses. These LSCR Series blocks have modular stud type design that enables easy mounting in panel boards. LSCR Series blocks are CE Certified and RoHS Compliant. Features and Benefits: Modular design reduces inventory requirements; Sold in pairs for convenience; Supplied with nut and belleville washer; Constructed of molded phenolic (with plated steel studs) provide greater heat dissapation.
LSCR002
Littelfuse LSCR Series is a comprehensive line of modular fuse blocks, designed to accommodate a wide range of High-Speed and UL Power Fuses. These LSCR Series blocks have modular stud type design that enables easy mounting in panel boards. LSCR Series blocks are CE Certified and RoHS Compliant.
SPFRHV4001ST
1000V VDC 400A CLASS H HOLDER STUD MOUNT. The SPFRHD series is specifically designed for 1000 VDC SPFR fuses ranging up to 400 A in current. It is UL Recognized to 1000 VDC.
LFJ104001CST
The LFJ1000 solar fuse block is specifically designed for the Littelfuse SPFJ 1000 Vdc Solar Fuse. It meets UL electrical characteristic requirements and is available in multiple amperages.
LFR60100-3CID
The new Littelfuse Class H and R blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.
LFT302001CS
The new Littelfuse Class T fuse blocks offer many advantages over previous generations that are noted in the features and benefits section. Of particular value is the space savings these new blocks provide.
354804-GY
3AG MTG 4 POLE. A low profile fuse block featuring individual barriers which reinforce the fuse clips while providing greater protection against clip damage and electrical shock. The unique design permits self-alignment of clips to fuse cap. This, plus a one-piece clip/terminal assures low contact resistance. Higher current ratings have been attained using spring brass clips. With the exception of the two-pole unit, multiple pole units may be broken apart to obtain desired number of poles.354004-GY
3AG OMNI-BLOK SLDR TERM 4 POLE MTG. A low profile fuse block featuring individual barriers which reinforce the fuse clips while providing greater protection against clip damage and electrical shock. The unique design permits self-alignment of clips to fuse cap. This, plus a one-piece clip/terminal assures low contact resistance. Higher current ratings have been attained using spring brass clips. With the exception of the two-pole unit, multiple pole units may be broken apart to obtain desired number of poles.
354608-GY
ACS 3AG MTG 8 POLE NEMA STYLE 3/16. A low profile fuse block featuring individual barriers which reinforce the fuse clips while providing greater protection against clip damage and electrical shock. The unique design permits self-alignment of clips to fuse cap. This, plus a one-piece clip/terminal assures low contact resistance. Higher current ratings have been attained using spring brass clips. With the exception of the two-pole unit, multiple pole units may be broken apart to obtain desired number of poles.Frequently Asked Questions about Littelfuse
