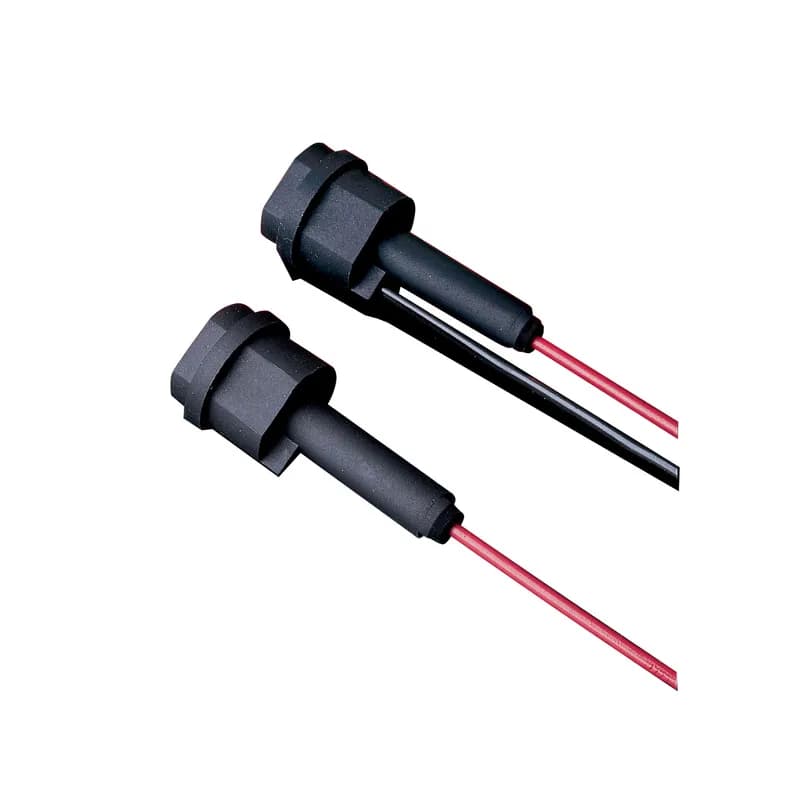

Littelfuse LHR0001U - Used as in-line protection for fluorescent fixtures, the Littelfuse LGR and LMF series fuses and LHR holder offer increased safety and reliability to lighting systems. On a 277 volt system, a fault occurring in an un-fused fixture could take out the entire branch circuit affecting up to 100 fixtures. This could cause safety problems as well as shut down operations. By individually fusing fixtures, these problems will be avoided. The added benefits of this is the ability to quickly identify the problem fixture and reduce the repair time. Fuse holders are rated up to 10 amperes at 300 volts and are equipped with 7” 18 AWG leads. Order part number LHR 000 for two leads, and part number LHR 001 for one lead and one terminal for insertion of 18 AWG ballast lead.
Littelfuse

LHR0001U

Alternate Item Number: 0LHR0001U

UPC: 079458029413

Documents & Media
BrochureTechnical BulletinSpecification Sheet

Contact for Pricing

Minimum Qty: 500

Multiplier: 500

*Contact for lower quantities*

Overview

The Littelfuse LHR0001U fuse holder is designed for in-line protection of fluorescent lighting fixtures, ensuring enhanced safety and reliability in commercial and industrial lighting systems. Rated for 300 volts and 10 amperes, this holder is compatible with Littelfuse LGR and LMF series fuses, providing critical circuit protection to prevent branch circuit failures. By individually fusing each fixture, the LHR0001U minimizes downtime and operational disruptions, allowing for quick identification and repair of faulty fixtures. Equipped with 7-inch 18 AWG leads, this holder is available in two configurations: LHR 000 with two leads and LHR 001 with one lead and one terminal for 18 AWG ballast lead insertion. Ideal for 277-volt systems, this solution enhances workplace safety and operational efficiency.
  • Rated for 300 volts and 10 amperes for reliable circuit protection.
  • Compatible with Littelfuse LGR and LMF series fuses.
  • Prevents branch circuit failures, reducing downtime and repair costs.
  • Available with two leads (LHR 000) or one lead and one terminal (LHR 001).
  • 7-inch 18 AWG leads for secure and flexible installation.

Specifications

Brand Name
Littelfuse
Special Features
Equipped with 7in 18 AWG leads
Standard
UL Recognized, CSA Certified
Sub Brand
LHR Fuseholder Series
Type
Fuseholders
