Littelfuse LFPHV0001ZXID - 1000VDC INDICATING PV 10X38 FUSE HOLDER. The Littelfuse LFPHV fuse holder is designed to house 1000 Vdc 10x38mm (midget style) fuses. It is not designed for load break but is ideal for isolating photovoltaic module strings for maintenance and meets UL requirements for 1000 Vdc solar fuse protection. Features/Benefits: Finger-Safe design offers personnel protection. Compact design. 35 mm DIN Rail Mountable. No fuse pullers or tools required for fuse removal. Indication option available. Approved for field wiring.
Littelfuse

LFPHV0001ZXID

UPC: 079458943986

Documents & Media
Brochure

Contact for Pricing

Overview

The Littelfuse LFPHV0001ZXID is a specialized 1000 Vdc fuse holder engineered for the critical isolation and protection of photovoltaic (PV) module strings. Designed to house 10x38mm midget-style fuses, this compact unit meets stringent UL requirements for 1000 Vdc solar applications, making it ideal for essential maintenance isolation procedures. It is important to note that this fuse holder is not designed for load break operations. Constructed from durable thermoplastic material with a UL 94 V-0 flammability rating, the LFPHV0001ZXID prioritizes safety and reliability in demanding environments. Its touch-safe design significantly enhances personnel protection during fuse replacement, eliminating the need for separate fuse pullers or tools, thereby streamlining maintenance tasks. Installation is simplified through its 35 mm DIN rail mountability, facilitating quick and secure integration into standard electrical enclosures. The fuse holder boasts a voltage rating of 1000 V dc and an amperage rating of 30 A, with a substantial SCCR rating of 20 kA. Power dissipation is kept to a maximum of 4 W. This product is RoHS compliant and lead-free, reflecting a commitment to environmental standards. Approved for field wiring, it is compatible with 75°C or 90°C CU Only wire types, accommodating wire ranges from #8-14 AWG (2-10 mm²) stranded and #10-14 AWG (2-6 mm²) solid. The specified terminal torque is 17.7 in-lbs (2 N-m). The LFPHV0001ZXID is available in 1-, 2-, 3-, and 4-pole configurations via multi-pole assembly kits. For optimal performance, Littelfuse recommends using their SPF 1000 V Series or FLU 1000 V Series fuses. The Littelfuse LFPHV0001ZXID (SKU: LFPHV0001ZXID) offers a secure, efficient, and user-friendly solution for fuse protection in solar energy systems, manufactured in the US. UNSPSC Code: 39121629.
  • 1000 V dc, 30 A rating for solar PV string isolation
  • Finger-safe touch-safe design for enhanced personnel protection
  • 35 mm DIN rail mountable for easy installation
  • Accommodates 10x38mm midget-style fuses
  • No fuse pullers or tools required for fuse removal

Specifications

Brand Name
Littelfuse
Mounting Type
35 mm DIN Rail
Series
LFPHV
Size
10X38mm
Special Features
Space-saving DIN Rail Indication
Standard
UL Listed CSA Certified
Sub Brand
Fuse Holder
Type
Fuse Holder
Voltage Rating
1000 Vdc
Package Dimensions (L x W x H)
3 IN x 2 IN x 3 IN
Package Dimensions (L x W x H)
7.62 cm x 5.08 cm x 7.62 cm
Package Weight (Imperial)
0.150 L
Package Weight (Metric)
0.068 kg

Similar Products

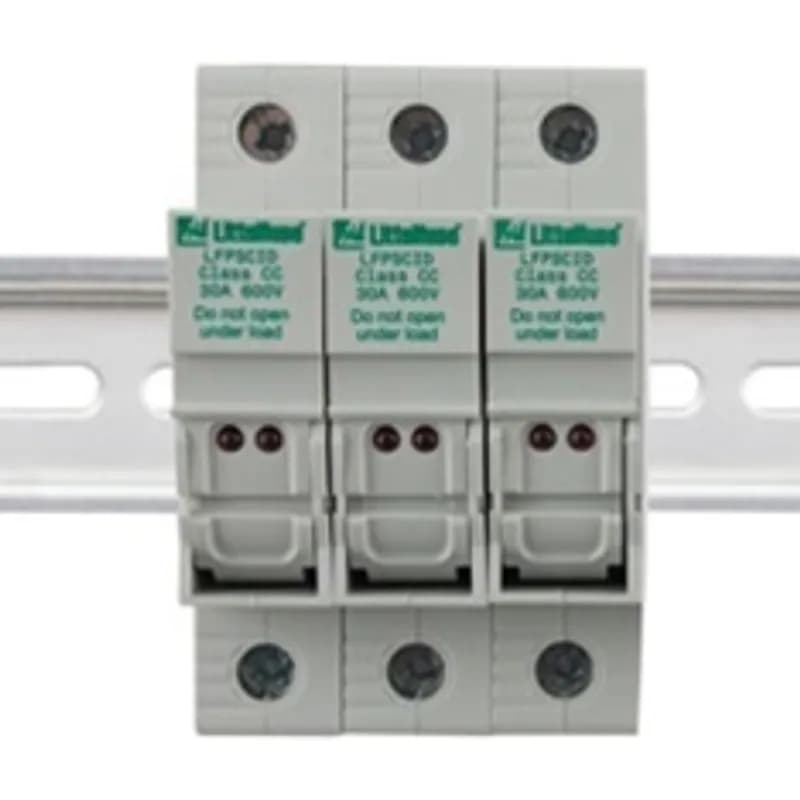

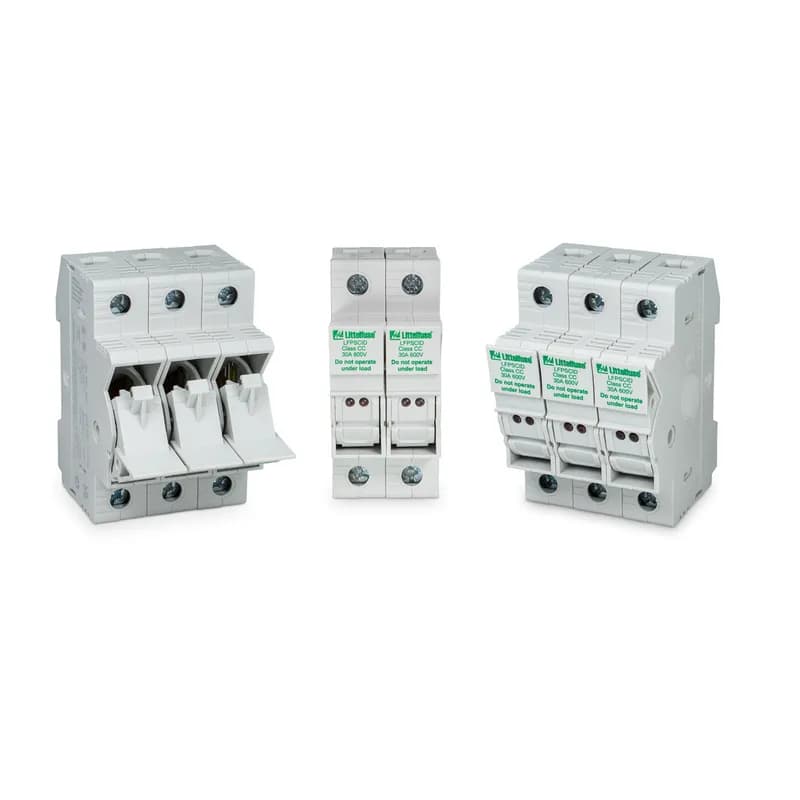

LFPSC0001ZXID

LFPSC0002ZXID

Amperage Rating: 30 AMP

Sub Brand: Dead Front Fuse Holders

Voltage Rating: 1000 VDC

LFPSC0003ZXID

Sub Brand: Dead Front Fuse Holders

Type: Class CC Indicating POWR-SAFE Fuse Holders

Size: Compact

LFPSC0004ZXID

LFPSC0001Z

Amperage Rating: 30 AMP

Sub Brand: Dead Front Fuse Holders

Voltage Rating: 1000 VDC

LFPSC0002Z

Amperage Rating: 30 AMP

Sub Brand: Dead Front Fuse Holders

Voltage Rating: 1000 VDC

You May Also Be Interested In

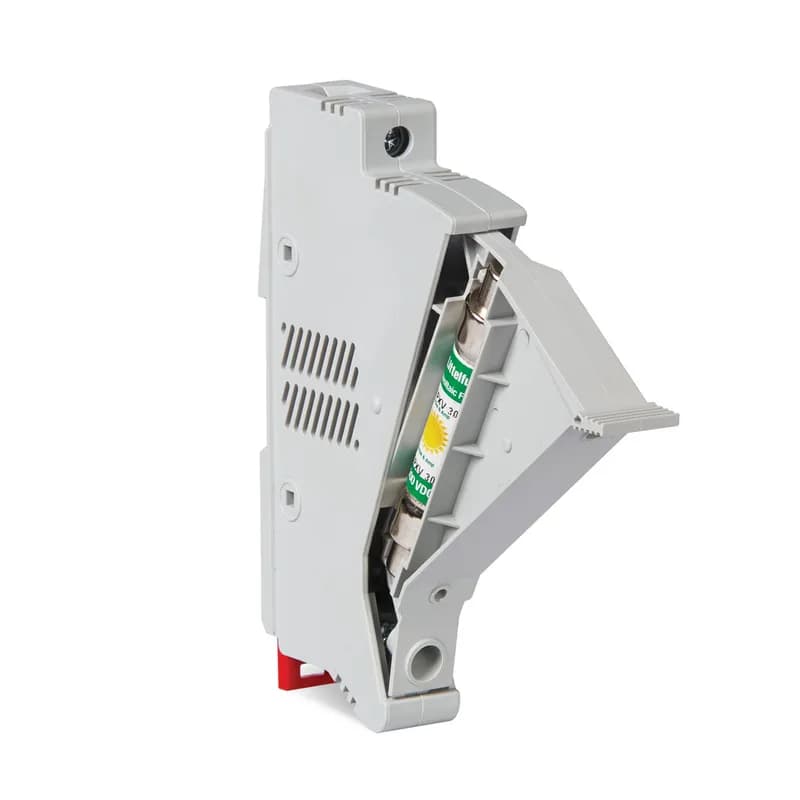

1500VDC PHOTOVOLTAIC FUSE HOLDER

LFPXV001

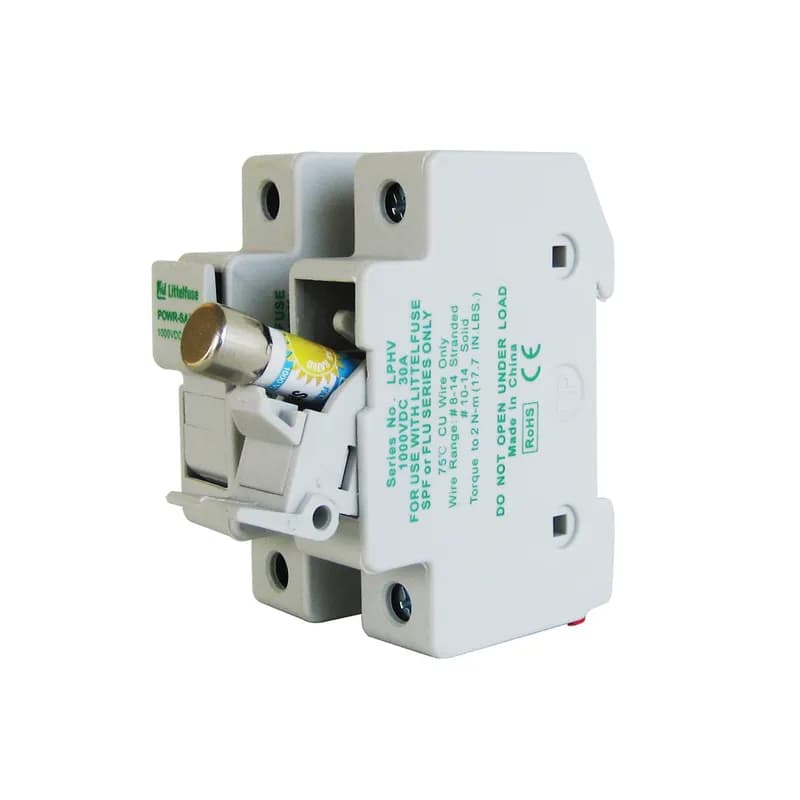

LPHV002 is a midget fuse holder constructed of thermoplastic material designed to house 1000 V dc fuses with a maximum ampere rating of 30.
