Littelfuse LFJ60200-3C - The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN-rail mounting and universal mounting holes.
Littelfuse

LFJ60200-3C

Alternate Item Number: LFJ602003C

UPC: 079458181944

Documents & Media
BrochureTechnical BulletinTechnical DrawingSpecification Sheet

Contact for Pricing

Overview

The Littelfuse LFJ60200-3C is a 600V Class J fuse block engineered for industrial power distribution and control panel applications, delivering up to 200A of continuous current rating. This model provides significant space savings compared to previous generations while maintaining high performance in demanding environments. The snap-to-release DIN-rail mounting system enables quick, tool-free installation and removal, reducing downtime during maintenance or upgrades. Universal mounting holes accommodate various panel configurations, offering flexibility for retrofits or new installations without additional hardware modifications. Its robust construction ensures reliable operation under harsh conditions, including high vibration and temperature fluctuations. Designed for critical electrical systems, the LFJ60200-3C delivers dependable overcurrent protection, safeguarding sensitive equipment and infrastructure. The UNSPSC code for this product is 39121629, and it is manufactured in the US, supporting domestic supply chains and quality standards. Littelfuse’s expertise in fuse technology ensures consistent performance, long service life, and enhanced value over competing solutions.
  • 600V Class J fuse block
  • Generous space savings
  • Snap-to-release DIN-rail mounting
  • Universal mounting holes
  • Enhanced value over previous generations

Specifications

Brand Name
Littelfuse
Connection Type
Universal mounting holes
Current Rating
200 A
Material
Robust construction (high vibration/temperature resistant)
Mounting Type
Snap-to-release DIN-rail mounting
Series
600V Class J
Special Features
Space-saving DIN Rail Indication
Standard
UL Listed CSA Certified
Sub Brand
LF Series Fuseblock
Type
Class J Fuseblock
Voltage Rating
600 V
3PH9P25MM is a compact-sized POWR Busbar system that provides safe distribution of electrical power to multiple dead front fuse holders and measures 158 mm in length, which can be cut down to an optimal size. See datasheet for more detailed specifications.

3PH9P25MM

3PH9P25MM is a compact-sized POWR Busbar system that provides safe distribution of electrical power to multiple dead front fuse holders and measures 158 mm in length, which can be cut down to an optimal size. See datasheet for more detailed specifications.
BUSBAR TERMINAL

BB19

BUSBAR TERMINAL
SPLICER BLOCK 600V 175A 3 POLE

LFS25723Z

SPLICER BLOCK 600V 175A 3 POLE
1PH12P18MM is a compact-sized POWR Busbar system that provides safe distribution of electrical power to multiple dead front fuse holders and measures 212 mm in length, which can be cut down to an optimal size. See datasheet for more detailed specifications.

1PH12P18MM

1PH12P18MM is a compact-sized POWR Busbar system that provides safe distribution of electrical power to multiple dead front fuse holders and measures 212 mm in length, which can be cut down to an optimal size. See datasheet for more detailed specifications.

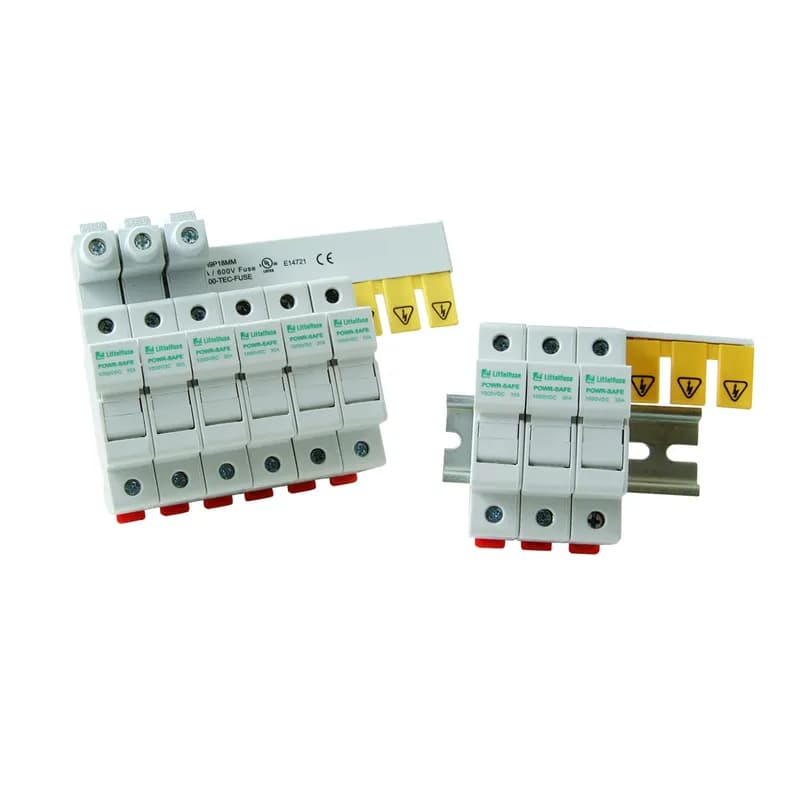

Safe distribution of power to multiple fuse holders in a compact design is a key objective for panel designers. The Littelfuse UL508 bus bar system eliminates most wire terminations in a time saving package. A power distribution block and associated conductors are no longer needed to feed multiple POWR-SAFE™ fuse holders. Features/Benefits: Decreases wiring terminations; Small footprint reduces space requirements; Reduces assembly time; Prevents accidental finger exposure; Quick and safe method of changing fuse holder configurations; Allows for future expansion; Improves troubleshooting; Eliminates power distribution block; RoHS compliant and lead (Pb) free. Customization: This product is simple to integrate into one- and three-phase applications. It offers multiple pole configurations and amperage ratings to match the designer’s requirements. Instructions are included for bus bar cutting by the customer for further customization. Individual power feed lugs are available which allow termination at any point along the bus bar.
