Littelfuse LFJ60060-3CID - The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN-rail mounting and universal mounting holes.
Littelfuse

LFJ60060-3CID

Alternate Item Number: LFJ600603CID

UPC: 079458181876

Documents & Media
BrochureTechnical BulletinTechnical DrawingSpecification Sheet

Contact for Pricing

Overview

The Littelfuse LFJ60060-3CID 600V Class J fuse block represents the next evolution in industrial fuse protection, combining space-saving innovation with uncompromising reliability. Designed for modern control panels and power distribution systems, this fuse block delivers exceptional value over previous generations while maintaining Littelfuse's legendary durability. The LFJ60060-3CID features a snap-to-release DIN-rail mounting system that enables technicians to install or replace fuse blocks in seconds without tools, significantly reducing downtime during maintenance operations. Universal mounting holes provide additional installation flexibility, allowing for both horizontal and vertical mounting configurations to optimize panel space utilization. Engineered for 600V applications, this Class J fuse block offers superior protection for sensitive industrial equipment against overcurrent conditions. The Class J designation indicates compliance with strict industry standards for interrupting capacity and response time, making it ideal for protecting variable frequency drives, motor controllers, and other critical power electronics. Unlike standard fuse blocks that consume valuable panel real estate, the LFJ60060-3CID's compact design delivers generous space savings while maintaining full functionality. This makes it particularly valuable in applications where panel density is high or where future expansion is anticipated. Industries that benefit most from the LFJ60060-3CID include manufacturing facilities, commercial buildings, renewable energy systems, and utility substations. In manufacturing environments, these fuse blocks protect sensitive control circuits from damaging fault currents while ensuring compliance with NEC and IEC standards. Commercial buildings rely on them for reliable power distribution to HVAC systems, lighting panels, and critical infrastructure. Renewable energy installations use Class J fuse blocks to protect inverters and battery management systems from overcurrent events that could compromise system safety and efficiency. Professionals select Littelfuse fuse blocks for their proven track record in industrial applications where reliability cannot be compromised. The LFJ60060-3CID incorporates several design improvements over previous generations, including enhanced terminal design for more secure wire connections and improved heat dissipation characteristics. The snap-to-release mounting system eliminates the need for separate mounting hardware, while the universal mounting holes accommodate various panel configurations. These features translate to faster installations, easier maintenance, and reduced total cost of ownership. When specifying fuse blocks for industrial applications, engineers must consider several critical factors including voltage rating, interrupting capacity, mounting options, and compliance with relevant standards. The 600V rating of the LFJ60060-3CID makes it suitable for most industrial power distribution systems, while its Class J certification ensures it can safely interrupt fault currents up to its rated capacity. The DIN-rail mounting system provides a standardized installation method that's compatible with most industrial control panels, and the universal mounting holes offer additional flexibility for custom installations. Littelfuse's reputation as a leader in circuit protection solutions stems from decades of innovation and commitment to quality. The company's Class J fuse blocks are trusted by engineers worldwide for applications ranging from small control panels to large-scale power distribution systems. With the LFJ60060-3CID, Littelfuse continues to set the standard for industrial fuse protection, offering a product that combines advanced features with proven reliability. Whether protecting sensitive electronics in a manufacturing facility or ensuring safe power distribution in a commercial building, this fuse block delivers the performance and durability that industrial professionals demand.
  • 600V Class J fuse block for industrial power protection
  • Snap-to-release DIN-rail mounting for quick installation
  • Universal mounting holes for flexible panel configuration
  • Space-saving design compared to previous generations
  • Superior protection for sensitive industrial equipment

Specifications

Brand Name
Littelfuse
Mounting Type
DIN-Rail
Series
Class J
Special Features
Space-saving DIN Rail Indication
Standard
UL Listed CSA Certified
Sub Brand
LF Series Fuseblock
Type
Class J Fuseblock
Voltage Rating
600 V
The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN-rail mounting and universal mounting holes.

LFJ60600-1C

The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN-rail mounting and universal mounting holes.
The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN-rail mounting and universal mounting holes.

LFJ60200-3C

The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN-rail mounting and universal mounting holes.

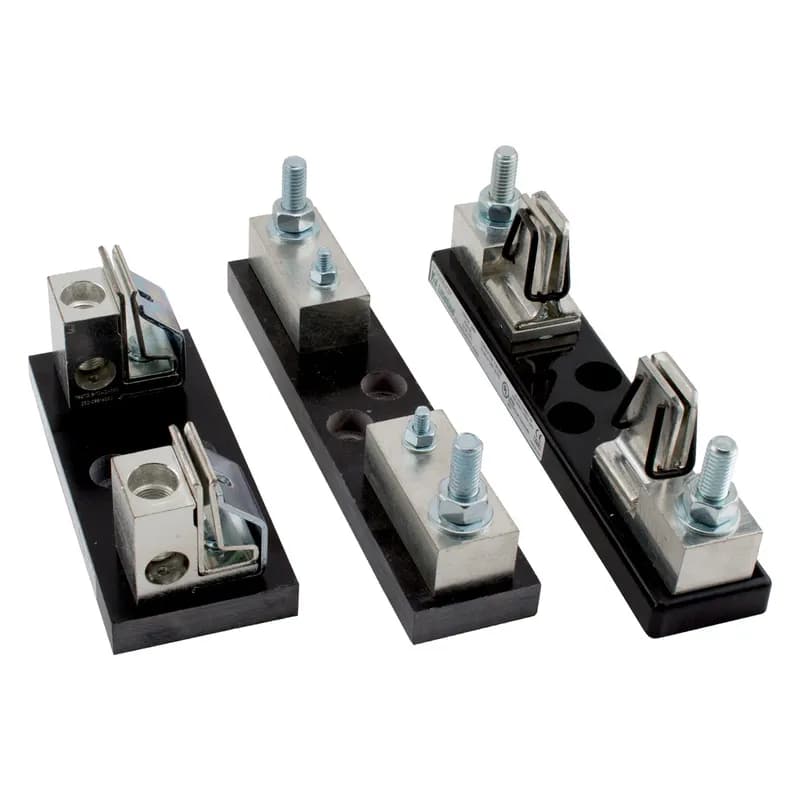

The LFJ1000 solar fuse block is specifically designed for the Littelfuse SPFJ 1000 Vdc Solar Fuse. It meets UL electrical characteristic requirements and is available in multiple amperages.
