Littelfuse L60030C-3PQDIN - Littelfuse DIN series Class CC fuse blocks have integral DIN rail mounting capabilities that allow secure mounting to 35mm "hat" type DIN rails. New releasable mechanism allows installation and removal of block without removing adjacent components on DIN rail. Electrical panel builders and machine builders no longer need to use mounting adapters, saving assembly time and related costs.
Littelfuse

L60030C-3PQDIN

Alternate Item Number: L60030C3PQDIN

UPC: 079458117899

Documents & Media
BrochureTechnical BulletinSpecification Sheet

Contact for Pricing

Minimum Qty: 6

Multiplier: 6

*Contact for lower quantities*

Overview

The Littelfuse L60030C-3PQDIN DIN series Class CC fuse block delivers a high-performance, space-efficient solution for industrial electrical protection and panel construction. Designed for electrical panel builders, machine OEMs, and system integrators, this fuse block integrates seamlessly with 35mm 'hat' type DIN rails, eliminating the need for cumbersome mounting adapters. Its integral DIN rail mounting system ensures a secure, vibration-resistant installation that meets stringent industrial standards, while the innovative releasable mechanism enables quick and tool-free installation or removal of the fuse block without disturbing adjacent components on the DIN rail. This streamlined design significantly reduces assembly time, lowers total cost of ownership, and enhances maintenance efficiency in high-volume production environments. Class CC fuse blocks are widely recognized in industrial automation, motor control centers, and power distribution panels for their compact footprint and high interrupting rating. The L60030C-3PQDIN is engineered to protect sensitive electronics, control circuits, and branch distribution lines from overcurrent conditions, ensuring operational reliability and compliance with NEC and IEC standards. Its compatibility with Class CC fuses (up to 30A) makes it ideal for applications requiring precise fault protection in compact enclosures, such as CNC machines, robotics, HVAC systems, and renewable energy inverters. Professionals in industrial electrical design prioritize fuse blocks that combine durability, ease of installation, and modularity. The Littelfuse L60030C-3PQDIN excels in these areas by offering a one-piece mounting solution that simplifies panel layout and reduces wiring complexity. The releasable mechanism—unique to this series—further accelerates commissioning and troubleshooting by allowing technicians to service individual blocks without dismantling the entire DIN rail assembly. This feature is particularly valuable in facilities where downtime must be minimized, such as food processing, automotive manufacturing, or data centers. Littelfuse, a global leader in circuit protection with over 90 years of innovation, is trusted by engineers worldwide for products that deliver consistent performance under harsh industrial conditions. The L60030C-3PQDIN reflects this legacy, incorporating robust materials and precision engineering to withstand temperature extremes, humidity, and mechanical stress. Whether used in original equipment or retrofit applications, this fuse block provides a reliable, cost-effective alternative to traditional mounting solutions, helping businesses optimize panel space and streamline production workflows. Key advantages of the Littelfuse L60030C-3PQDIN include: - **Integral DIN rail mounting**: Eliminates the need for separate adapters, reducing material and labor costs. - **Releasable mechanism**: Enables tool-free installation and removal without disturbing adjacent components. - **Compact Class CC design**: Maximizes panel density while providing high interrupting ratings for sensitive circuits. - **Industrial-grade durability**: Engineered for long-term reliability in demanding environments. - **Compliance-ready**: Meets NEC and IEC standards for electrical protection and panel construction. For engineers and panel builders seeking a high-quality, time-saving fuse block solution, the Littelfuse L60030C-3PQDIN offers unmatched convenience, performance, and value in a single, space-saving package.
  • Integral 35mm DIN rail mounting eliminates need for adapters
  • Releasable mechanism enables tool-free installation/removal without disturbing adjacent components
  • Compatible with Class CC fuses up to 30A for precise overcurrent protection
  • Compact design maximizes panel density in industrial automation and control systems
  • Designed for compliance with NEC and IEC electrical protection standards

Specifications

Brand Name
Littelfuse
Current Rating
30 A
Mounting Type
35mm DIN Rail
Series
DIN series Class CC
Special Features
DIN Rail Mounting
Standard
UL Listed CSA
Sub Brand
L600 Fuseblock
Type
Class CC Fuseblock
LPHV003 is a midget fuse holder constructed of thermoplastic material designed to house 1000 V dc fuses with a maximum ampere rating of 30.

LPHV003

LPHV003 is a midget fuse holder constructed of thermoplastic material designed to house 1000 V dc fuses with a maximum ampere rating of 30.
The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN-rail mounting and universal mounting holes.

LFJ60030-2SID

The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN-rail mounting and universal mounting holes.
All Littelfuse Class G fuse blocks offer snap-to-release DIN rail mounting and universal mounting holes. Class G fuse blocks are designed for use with time-delay current limiting Class G fuses.

LFG48030-2SQDINR

All Littelfuse Class G fuse blocks offer snap-to-release DIN rail mounting and universal mounting holes. Class G fuse blocks are designed for use with time-delay current limiting Class G fuses.
The Littelfuse LFPSC fuse holder is designed to hold Class CC fuses. Features/Benefits: Finger-Safe design offers personnel protection; Compact design; 35 mm DIN Rail Mountable; No fuse pullers or tools required for fuse removal; Indication option available.

LFPSC0002ZXID

The Littelfuse LFPSC fuse holder is designed to hold Class CC fuses. Features/Benefits: Finger-Safe design offers personnel protection; Compact design; 35 mm DIN Rail Mountable; No fuse pullers or tools required for fuse removal; Indication option available.
The Littelfuse LFPSC fuse holder is designed to hold Class CC fuses. Features/Benefits: Finger-Safe design offers personnel protection; Compact design; 35 mm DIN Rail Mountable; No fuse pullers or tools required for fuse removal; Indication option available.

LFPSC0001Z

The Littelfuse LFPSC fuse holder is designed to hold Class CC fuses. Features/Benefits: Finger-Safe design offers personnel protection; Compact design; 35 mm DIN Rail Mountable; No fuse pullers or tools required for fuse removal; Indication option available.
The Littelfuse LFPSC fuse holder is designed to hold Class CC fuses. Features/Benefits: Finger-Safe design offers personnel protection; Compact design; 35 mm DIN Rail Mountable; No fuse pullers or tools required for fuse removal; Indication option available.

LFPSC0003Z

The Littelfuse LFPSC fuse holder is designed to hold Class CC fuses. Features/Benefits: Finger-Safe design offers personnel protection; Compact design; 35 mm DIN Rail Mountable; No fuse pullers or tools required for fuse removal; Indication option available.
The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN-rail mounting and universal mounting holes.

LFJ60030-2PID

The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN-rail mounting and universal mounting holes.
3 POLE Up-LINK POWR-SAFE CC HOLDER. The Littelfuse Up-LINK solid state, dead-front fuse holder provides remote fuse status indication without the need to incorporate proprietary network protocols. Advanced notification is beneficial in limiting expensive downtime, reducing production scrap or minimizing unsafe conditions to personnel. Up-LINK provides remote fuse status communication that can easily integrate with an existing PLC or system. If used in conjunction with a user-programmed PLC, additional information can be communicated such as fuse type, fuse part number, necessary Personnel Protective Equipment (PPE) and where replacement fuses are located. Standard Features: Cost-effective solution for remote fuse status indication and local LED indication. Easy integration into existing PLC or system. Current-limiting Class CC fuses provide superior protection with high interrupting rating. Meets stringent IEC and UL Touch Safe Standards to improve worker safety. Time-saving DIN Rail mounting.

LINK003C

3 POLE Up-LINK POWR-SAFE CC HOLDER. The Littelfuse Up-LINK solid state, dead-front fuse holder provides remote fuse status indication without the need to incorporate proprietary network protocols. Advanced notification is beneficial in limiting expensive downtime, reducing production scrap or minimizing unsafe conditions to personnel. Up-LINK provides remote fuse status communication that can easily integrate with an existing PLC or system. If used in conjunction with a user-programmed PLC, additional information can be communicated such as fuse type, fuse part number, necessary Personnel Protective Equipment (PPE) and where replacement fuses are located. Standard Features: Cost-effective solution for remote fuse status indication and local LED indication. Easy integration into existing PLC or system. Current-limiting Class CC fuses provide superior protection with high interrupting rating. Meets stringent IEC and UL Touch Safe Standards to improve worker safety. Time-saving DIN Rail mounting.
The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN-rail mounting and universal mounting holes.

LFJ60030-3CID

The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN-rail mounting and universal mounting holes.
LFPSJ303 is a non-indicating Class J dead front fuse holder with a maximum ampere rating of 30.

LFPSJ30-3

LFPSJ303 is a non-indicating Class J dead front fuse holder with a maximum ampere rating of 30.

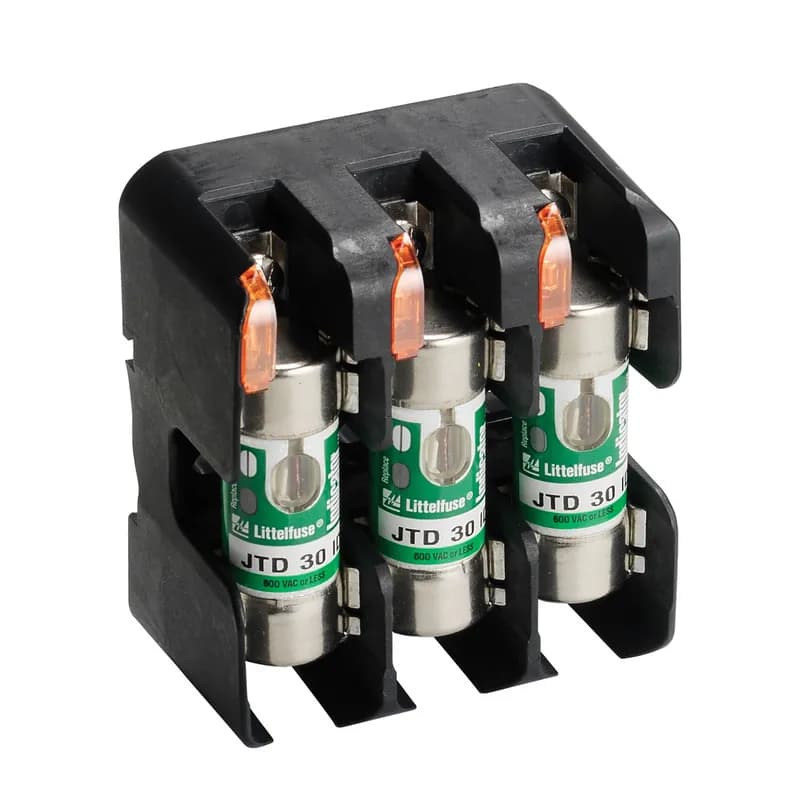

Features and Benefits: Indication offered on all versions except 200A-600A; DIN Rail releasable for all non-knife blade style fuses; Only one hand is required to release from DIN Rail (lock open lock closed); Phenolic blocks have side barriers for isolation; Spring reinforced fuse clips are standard on 100A and larger blocks. Reinforcing springs are optional on 30A and 60A blocks; Universal mounting holes make for easy replacement; Space-saving design — up to 45% smaller than existing blocks.
