Littelfuse K0614.0010 - Potentiometer 5K BULK. Potentiometer, 5kOhm, 2W, Wirewound Linear.
Littelfuse

K0614.0010

UPC: 079458961683

Documents & Media
Brochure

Contact for Pricing

Overview

The Littelfuse K0614.0010 is a high-performance 5kOhm wirewound linear potentiometer engineered for demanding industrial applications. This component, part of Littelfuse's robust potentiometer offerings, is designed to provide precise and reliable control in a variety of systems. Its wirewound construction ensures superior durability and stability, making it an excellent choice for environments where accuracy and longevity are paramount. With a power rating of 2W, the K0614.0010 is built to withstand significant electrical loads, contributing to the overall reliability and safety of your equipment. The linear taper offers a smooth and consistent adjustment of resistance, which is critical for applications requiring fine-tuned control over voltage or current. This linearity ensures that as the shaft is rotated, the change in resistance is predictable and uniform across its operational range. Key specifications and features of the Littelfuse K0614.0010 include: * **Resistance Value:** 5kOhm * **Power Rating:** 2W (Note: Catalog indicates 25W at 55°C for similar series, emphasizing robust thermal management capabilities in the broader product line). * **Taper:** Linear, providing predictable resistance changes. * **Shaft Rotation:** 300° ±5°, offering ample range for precise adjustments. * **Tolerance:** ±10%, ensuring acceptable variation for most industrial control tasks. * **Shaft Diameter:** 0.125 in (3.2 mm), compatible with standard control knobs and actuators. This potentiometer is suitable for a wide array of industrial uses, including control panels, instrumentation, automation systems, and any application requiring variable resistance for signal conditioning or power regulation. The Littelfuse brand is synonymous with quality and reliability in the electronics component market, and the K0614.0010 upholds this reputation. Its robust design and precise electrical characteristics make it a dependable component for engineers and technicians seeking stable and accurate control solutions. When selecting components for critical industrial systems, the Littelfuse K0614.0010 offers a compelling combination of performance, durability, and brand trust. For further technical details and compatibility information, consult the full datasheet.
  • 5kOhm resistance value for versatile control applications.
  • 2W power rating ensures durability under load.
  • Wirewound construction for enhanced reliability and stability.
  • Linear taper for smooth and precise resistance adjustment.
  • 300° ±5° shaft rotation provides ample operational range.

Specifications

Application
Industrial
Brand Name
Littelfuse
Material
Wirewound
Size
Shaft Diameter: 0.125 in (3.2 mm)
Special Features
High Quality
Sub Brand
Relay Series
Type
Protection Relays and Controls
Package Dimensions (L x W x H)
2 IN x 1 IN x 3 IN
Package Dimensions (L x W x H)
5.08 cm x 25.4 mm x 7.62 cm
Package Weight (Imperial)
0.250 L
Package Weight (Metric)
0.113 kg

Similar Products

K0614.0060

K0702

Voltage Rating: 380-440/21V

Voltage Rating: 380-440V to 21V

Material: High-quality insulation materials

You May Also Be Interested In

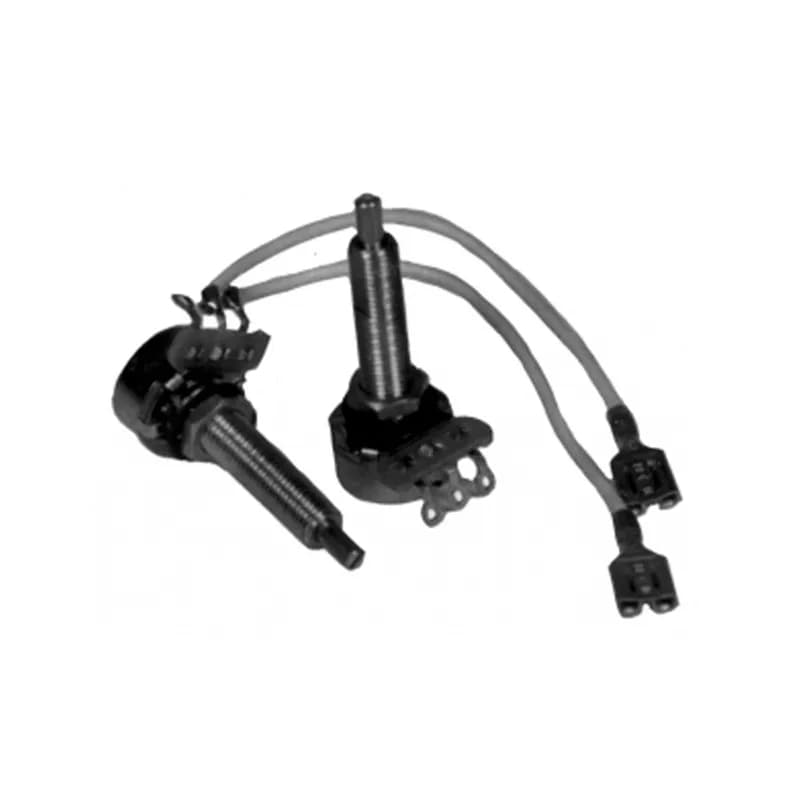

POTENTIOMETER 100K 10% REV. F
