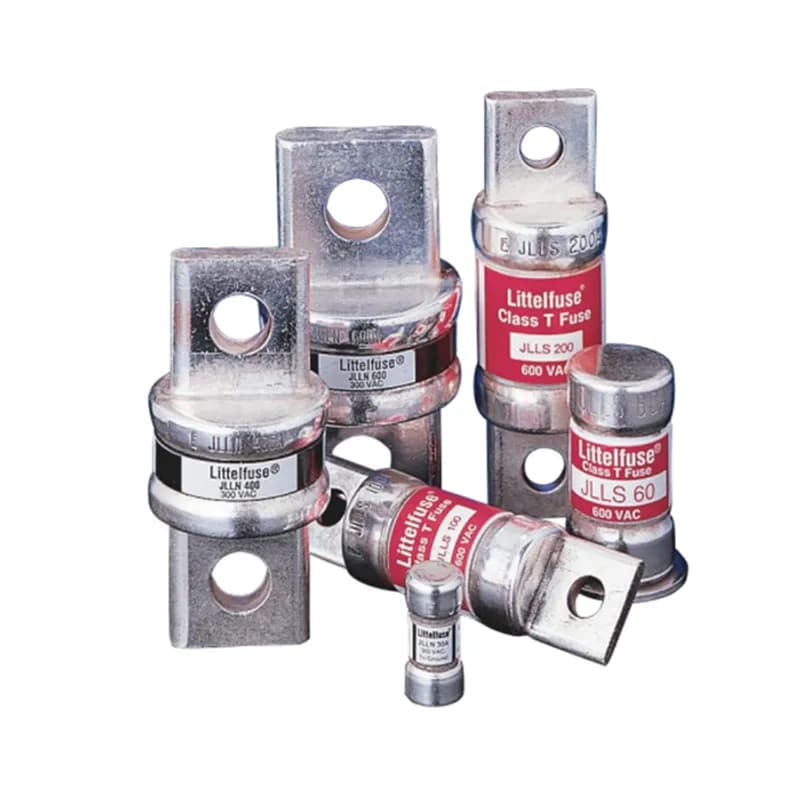

Littelfuse JLLS006.TXV - UL CLASS T FAST ACTING T-PACK 6A. Space-saving Class T fuses are the most compact fuses available in ratings above 30 amperes — less than one-third the size of comparable Class R fuses. When rated in accordance with the NEC, Class T fuses provide fast-acting overload and short circuit protection for non-inductive circuits and equipment. Used in inductive circuits, the ampere rating of Class T fuses must be increased to prevent opening on inrush currents. In such instances, Class T fuses may provide only short circuit protection.For motor and general purpose circuits where space is not critical, we recommend POWR-PRO™ JTD_ID Indicator series, LLNRK/LLSRK series, or FLSR_ID Indicator series. Applications: Protection of individual electric services and meters. Main switches containing Class T fuses may be used to provide compact protection for meter stacks. Molded case circuit breaker load centers and panelboards have increased interrupting ratings when “series rated” with Littelfuse Class T fuses. Refer to panelboard manufacturers’ literature for UL Listed combination of fuses and panelboards. Series ratings up to 200,000 amperes are available. Space Saving: Typical three-pole Class T fuse blocks require less than 50percent of the panel area required for Class R fuse blocks. Switch enclosures, fuse pullouts, and other equipment using Class T fuses are often correspondingly more compact. Safety: 200,000 A.I.R. — Reliable interruption of all overcurrents up to 200,000 amperes. Extremely current limiting — Stops damaging short circuit current faster than any mechanical protective device. Fast-Acting — Provides fast-acting overload protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive components. Longer Equipment Life: Current limiting design greatly reduces damage to equipment caused by heating and magnetic effects of short circuit currents. Economical: Extremely current limiting design often permits use of readily available, less costly equipment. Used as input or output fuses for surge-sensitive components, such as variable speed drives and rectifiers, fast-acting Class T JLLS fuses may prevent opening of expensive semiconductor fuses protecting individual components.
Littelfuse

JLLS006.TXV

UPC: 079458062090

Documents & Media
BrochureSpecification Sheet

Contact for Pricing

Overview

The Littelfuse JLLS006.TXV Class T Fast-Acting T-Pack 6A Fuse offers space-saving protection for non-inductive circuits and equipment. These compact fuses are less than one-third the size of comparable Class R fuses, making them ideal for applications where space is limited. Rated for 200,000 A.I.R., they provide reliable interruption of overcurrents and fast-acting protection for surge-sensitive components like variable speed drives and rectifiers. Their current-limiting design reduces equipment damage from short circuit currents, extending the life of connected devices. Additionally, Class T fuses can be used in series-rated panelboards to achieve higher interrupting ratings, making them a versatile choice for industrial and commercial electrical systems. For motor and general-purpose circuits, Littelfuse recommends alternative series like POWR-PRO™ JTD_ID Indicator, LLNRK/LLSRK, or FLSR_ID Indicator when space is not a constraint.
  • Compact Class T fuse design, less than one-third the size of Class R fuses
  • Fast-acting overload and short circuit protection for non-inductive circuits
  • 200,000 A.I.R. rating for reliable interruption of overcurrents
  • Current-limiting design reduces equipment damage from short circuits
  • Ideal for surge-sensitive components like variable speed drives and rectifiers

Specifications

Application
Variable Speed Drives
Brand Name
Littelfuse
Connection Type
T-Pack
Current Rating
6 A
Mounting Type
Fuse Block
Mounting Type
T-Pack
Poles
1
Series
JLLS
Size
Less than one-third the size of comparable Class R fuses
Size
Compact (less than one-third the size of Class R fuses)
Size
Compact (less than one-third the size of comparable Class R fuses)
Special Features
Fast-Acting
Standard
248-15 Class T
Sub Brand
POWR-GARD JLLS Series
Type
Class T
Package Dimensions (L x W x H)
3 IN x 1.75 IN x 1.25 IN
Package Dimensions (L x W x H)
7.62 cm x 4.445 cm x 3.175 cm
Package Weight (Imperial)
0.500 L
Package Weight (Metric)
0.227 kg
