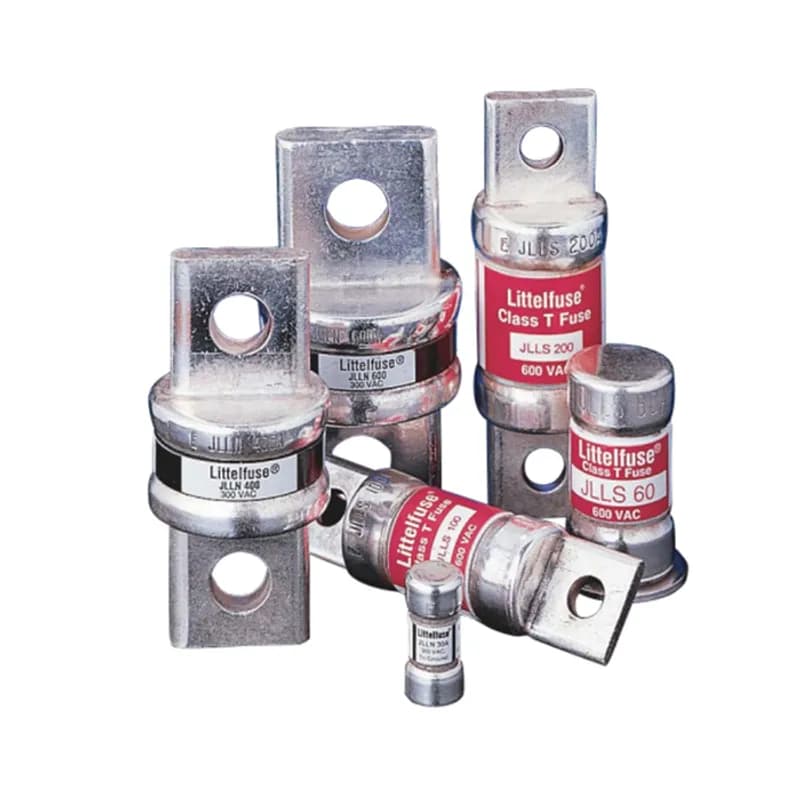

Littelfuse JLLS003.TXV - UL CLASS T FAST ACTING T-PACK 3A. Space-saving Class T fuses are the most compact fuses available in ratings above 30 amperes — less than one-third the size of comparable Class R fuses. When rated in accordance with the NEC, Class T fuses provide fast-acting overload and short circuit protection for non-inductive circuits and equipment. Used in inductive circuits, the ampere rating of Class T fuses must be increased to prevent opening on inrush currents. In such instances, Class T fuses may provide only short circuit protection.For motor and general purpose circuits where space is not critical, we recommend POWR-PRO™ JTD_ID Indicator series, LLNRK/LLSRK series, or FLSR_ID Indicator series. Applications: Protection of individual electric services and meters. Main switches containing Class T fuses may be used to provide compact protection for meter stacks. Molded case circuit breaker load centers and panelboards have increased interrupting ratings when “series rated” with Littelfuse Class T fuses. Refer to panelboard manufacturers’ literature for UL Listed combination of fuses and panelboards. Series ratings up to 200,000 amperes are available. Space Saving: Typical three-pole Class T fuse blocks require less than 50percent of the panel area required for Class R fuse blocks. Switch enclosures, fuse pullouts, and other equipment using Class T fuses are often correspondingly more compact. Safety: 200,000 A.I.R. — Reliable interruption of all overcurrents up to 200,000 amperes. Extremely current limiting — Stops damaging short circuit current faster than any mechanical protective device. Fast-Acting — Provides fast-acting overload protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive components. Longer Equipment Life: Current limiting design greatly reduces damage to equipment caused by heating and magnetic effects of short circuit currents. Economical: Extremely current limiting design often permits use of readily available, less costly equipment. Used as input or output fuses for surge-sensitive components, such as variable speed drives and rectifiers, fast-acting Class T JLLS fuses may prevent opening of expensive semiconductor fuses protecting individual components.
Littelfuse

JLLS003.TXV

UPC: 079458062083

Documents & Media
BrochureSpecification Sheet

Contact for Pricing

Overview

Littelfuse JLLS003.TXV (SKU: JLLS003.TXV) is a UL Class T fast-acting fuse for non-inductive circuits. It occupies under one-third the panel space of Class R fuses—three-pole Class T blocks use <50% of the area required by Class R blocks, ideal for compact enclosures. Rated 200,000 A.I.R., it interrupts all overcurrents up to this level, with current-limiting design reducing equipment damage from heat and magnetic stress. The 3A fast-acting fuse protects surge-sensitive components in variable speed drives and rectifiers. In inductive circuits, Class T fuse amp ratings may need adjustment to avoid nuisance tripping, shifting focus to short-circuit protection. UL-listed for series-rated applications up to 200,000A with compatible panelboards per manufacturer specs. Applications include individual electric services, meters, and main switches for meter stacks. Current-limiting capability can prevent operation of costlier semiconductor fuses in sensitive equipment.
  • UL Class T Fast-Acting Fuse
  • 3 Ampere Rating
  • Space-saving design, less than 1/3 size of Class R fuses
  • 200,000 A.I.R. for reliable overcurrent interruption
  • Extremely current-limiting for reduced equipment damage

Specifications

Application
Variable Speed Drives
Brand Name
Littelfuse
Current Rating
3 A
Mounting Type
Fuse Block
Series
JLLS
Size
Less than one-third the size of comparable Class R fuses
Size
Less than one-third the size of Class R fuses
Special Features
Fast-Acting
Standard
248-15 Class T
Sub Brand
POWR-GARD JLLS Series
Type
Class T
Package Dimensions (L x W x H)
3 IN x 1.75 IN x 1.25 IN
Package Dimensions (L x W x H)
7.62 cm x 4.445 cm x 3.175 cm
Package Weight (Imperial)
0.500 L
Package Weight (Metric)
0.227 kg

Similar Products

JLLS003.TXP

Amperage Rating: 3 AMP

Interrupt Rating: 20000A@300VDC

Response Time: Fast-Acting (F)

JLLS003.T

Voltage Rating: 250 V AC/DC

Size: 1/4" x 1-1/4"

Connection Type: Cartridge-style

JLLS001.TXV

Current Rating: 1 A

Size: Compact (less than 1/3 size of Class R)

JLLS002.TXV

JLLS006.TXV

Current Rating: 6 A

Mounting Type: T-Pack

Size: Compact (less than one-third the size of Class R fuses)

JLLS001.TXP

Amperage Rating: 1 AMP

Interrupt Rating: 20000A@300VDC

Response Time: Fast-Acting (F)
