Littelfuse H3453LS1LNP - ACS INTL SHOCK-SAFE 3AG FUSEHLDR LS1LNP. International Shock-Safe Panel Mount Fuseholder for 3AG/3AB Fuses.
Littelfuse

H3453LS1LNP

Alternate Item Number: 03453LS1HXLNP

UPC: 079458093001

Documents & Media
BrochureSpecification Sheet

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The **Littelfuse H3453LS1LNP** is a **Shock-Safe Panel Mount Fuseholder** engineered for **3AG/3AB fuses**, delivering unmatched reliability and safety in industrial electrical systems. Designed for **panel mounting**, this fuseholder ensures secure, tamper-resistant connections while protecting personnel and equipment from electrical hazards. As part of Littelfuse’s globally trusted **LS1LNP series**, it meets stringent industry standards for durability, performance, and compliance, making it a preferred choice for engineers, panel builders, and maintenance professionals in demanding environments. **Key Features & Benefits** - **Shock-Safe Design**: Engineered to prevent accidental contact with live components, reducing the risk of electrical shock—a critical feature for high-voltage industrial panels. This design aligns with **IEC 60947-1** and other safety standards, ensuring compliance in hazardous locations. - **Robust Construction**: Built with high-quality materials, including **thermoset and thermoplastic components**, to withstand extreme temperatures, vibration, and mechanical stress. The fuseholder’s **panel-mount design** ensures stability even in high-vibration applications like manufacturing plants or power distribution systems. - **Universal Compatibility**: Accommodates **3AG (1.25" x 0.25") and 3AB (1.25" x 0.4") fuses**, offering flexibility for retrofitting or new installations. This versatility reduces inventory complexity while maintaining compatibility with a wide range of fuse types. - **Easy Installation & Maintenance**: Features a **screw-in mounting design** for quick installation and tool-free fuse replacement, minimizing downtime in critical operations. The **clear, durable housing** allows for visual inspection of fuse status without disassembly. - **Industry-Leading Safety & Performance**: Littelfuse’s reputation for **precision engineering** and **third-party certification** (e.g., UL, CSA, CE) ensures this fuseholder meets or exceeds global safety and performance benchmarks. Its **low contact resistance** and **high dielectric strength** contribute to long-term reliability in power distribution, control panels, and industrial machinery. **Typical Applications** The **H3453LS1LNP** is ideal for a broad spectrum of industrial and commercial applications where **electrical safety, durability, and compliance** are paramount. Common use cases include: - **Power Distribution Panels**: Safely housing fuses in **main distribution boards, motor control centers (MCCs), and switchgear** to protect against overloads and short circuits. - **Industrial Machinery**: Used in **CNC machines, conveyors, pumps, and HVAC systems** to safeguard sensitive electronics and motors from transient surges. - **Renewable Energy Systems**: Deployed in **solar inverters, wind turbine controllers, and battery management systems** to ensure fault protection in harsh outdoor environments. - **Telecom & Data Centers**: Provides **secondary protection** in **server racks, UPS systems, and telecom cabinets**, where space constraints and safety are critical. - **OEM Equipment**: Integrated into **custom-built machinery** by original equipment manufacturers (OEMs) requiring certified, shock-safe fuse protection. **Why Choose Littelfuse?** Littelfuse is a **world leader in circuit protection**, with over a century of innovation in fuse technology and electrical safety. The **LS1LNP series** reflects the company’s commitment to **engineering excellence**, backed by: - **Global Compliance**: Products meet **UL, IEC, CE, and other regional standards**, ensuring seamless integration into international projects. - **Rigorous Testing**: Each fuseholder undergoes **thermal cycling, vibration, and dielectric strength tests** to validate performance under real-world conditions. - **Technical Support**: Littelfuse provides **application-specific guidance**, CAD models, and **24/7 customer service** to assist engineers in selecting the optimal solution. - **Sustainability**: The **H3453LS1LNP** is designed for longevity, reducing waste and maintenance costs over its lifecycle. **Installation & Maintenance Tips** Proper installation is essential to maximize safety and performance. Professionals should: 1. **Verify Compatibility**: Ensure the fuseholder matches the **panel thickness** (typically 1.6mm–3.2mm) and **fuse type** (3AG/3AB). 2. **Secure Mounting**: Use **stainless steel hardware** to prevent loosening from vibration and ensure a tight seal against dust and moisture. 3. **Inspect Regularly**: Check for **cracks, discoloration, or loose contacts** during routine maintenance to prevent failures. 4. **Follow Electrical Codes**: Adhere to **NEC, IEC, or local regulations** for fuseholder spacing, wiring, and grounding. 5. **Replace Fuses Safely**: Always **de-energize the circuit** before replacing fuses to avoid arc flash hazards. For engineers and technicians seeking a **reliable, shock-safe fuseholder** that combines **Littelfuse’s legacy of quality** with **cutting-edge safety features**, the **H3453LS1LNP** is an uncompromising choice. Whether protecting a **high-power industrial panel** or a **compact control system**, this fuseholder delivers **consistent performance, compliance, and peace of mind** in even the most challenging environments.
  • Shock-Safe design prevents accidental electrical contact
  • Accommodates 3AG and 3AB fuses for versatile compatibility
  • Robust construction withstands extreme temperatures and vibration
  • Easy installation and tool-free fuse replacement
  • Compliant with UL, IEC, CE, and other global safety standards

Specifications

Brand Name
Littelfuse
Connection Type
Panel Mount
Mounting Type
Panel Mount
Series
LS1LNP
Size
3AG/3AB
Special Features
See in the web sheet
Standard
UL Listed CSA
Sub Brand
Shock-Safe
Type
Panel Fuseholder
Package Dimensions (L x W x H)
1.25 IN x 0.25 IN x 0.25 IN
Package Dimensions (L x W x H)
3.175 cm x 6.35 mm x 6.35 mm
Package Weight (Imperial)
0.150 L
Package Weight (Metric)
0.068 kg

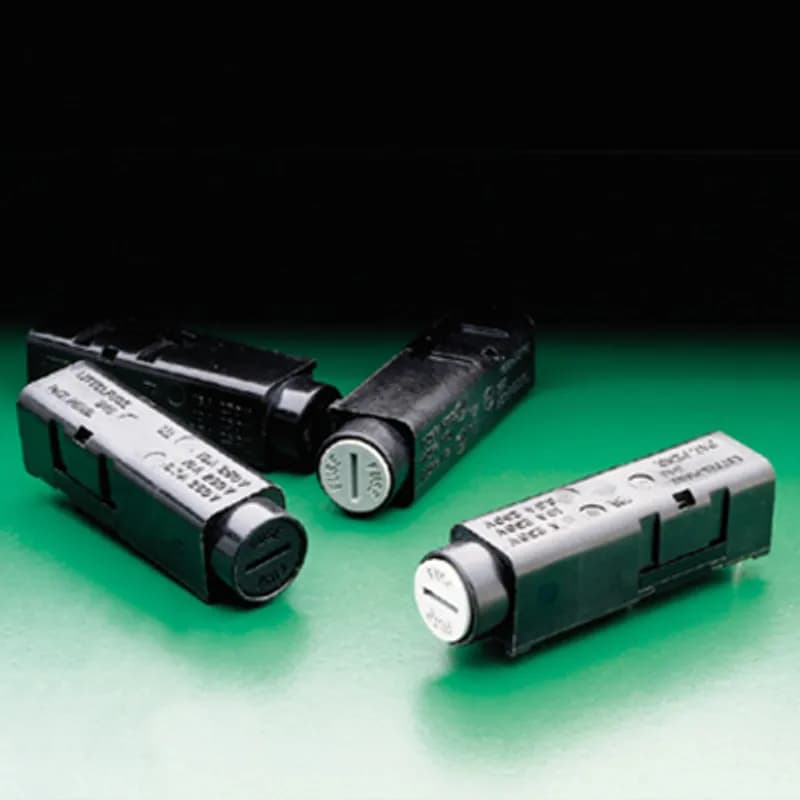

PANELMOUNT SHKSAFE FSEHLDR 3AG FUSE RF4A. Designed to eliminate the possibility of electrical shock, as defined in IEC standards 65 and 257. Shock-Safe fuseholders feature a low profile body, fingergrip knob and anti-tease feature that eliminates circuit interruptionwhen knob is accidentally depressed.
