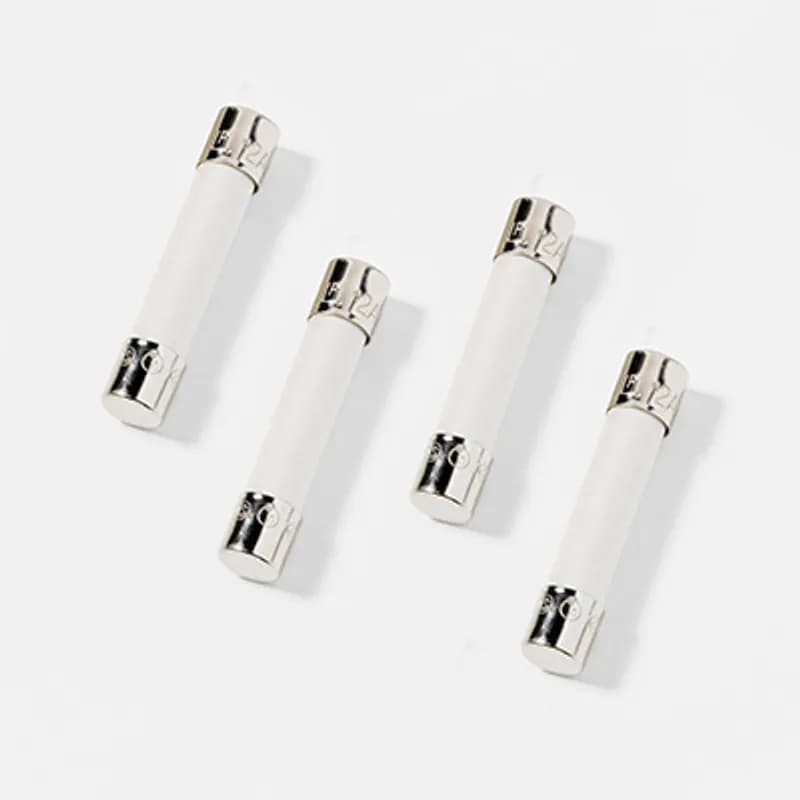

Littelfuse H332004P - FUSE 250V FA 3AB PB-FREE H-PACK 4A. The 3AB Very Fast-Acting Fuse for protection of Silicon Controlled Rectifiers and similar solid-state devices. Features: Designed to meet UL248-14. RoHS Compliant and Lead-Free. Available in cartridge type only.
Littelfuse

H332004P

Alternate Item Number: 0332004.HXP

UPC: 079458145618

Documents & Media
BrochureTechnical BulletinSpecification Sheet

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The Littelfuse H332004P is a high-performance 3AB Very Fast-Acting Fuse, meticulously engineered to provide superior overcurrent protection for sensitive electronic components. Specifically designed for the demanding requirements of protecting Silicon Controlled Rectifiers (SCRs), TRIACs, and other solid-state power devices, this fuse offers rapid response times crucial for preventing catastrophic damage in industrial and electronic systems. Its 4A rating and 250V operating voltage make it suitable for a wide array of applications where precise and reliable circuit interruption is paramount. Engineered to meet stringent industry standards, the H332004P adheres to UL248-14 specifications, assuring users of its quality and performance. This compliance is a testament to Littelfuse's commitment to safety and reliability in electrical protection. Furthermore, this fuse is RoHS Compliant and Lead-Free, aligning with global environmental regulations and the growing demand for sustainable manufacturing practices. This makes it an ideal choice for manufacturers and integrators focused on producing environmentally responsible products. The cartridge-type form factor of the H332004P ensures ease of installation and replacement in standard fuse holders, simplifying maintenance and reducing downtime. Its compact design does not compromise its protective capabilities, offering robust performance even in space-constrained environments. The very fast-acting nature of this fuse is critical for safeguarding delicate semiconductor devices that are susceptible to transient overcurrents and surges. By interrupting the circuit almost instantaneously upon detecting an overcurrent condition, it effectively shields these components from damage, extending the operational life of the equipment and preventing costly repairs. Key features and benefits of the Littelfuse H332004P include: * **Superior Protection for Solid-State Devices:** Optimized for SCRs, TRIACs, and similar components, offering rapid fault interruption. * **UL248-14 Compliance:** Meets rigorous safety and performance standards for fuse applications. * **RoHS Compliant & Lead-Free:** Adheres to environmental regulations for sustainable product design. * **250V AC/DC Voltage Rating:** Versatile for use in a broad range of power supply and control circuits. * **4A Current Rating:** Suitable for moderate current applications requiring fast-acting protection. * **Cartridge Form Factor:** Facilitates straightforward installation and replacement in standard fuse holders. Industries that commonly benefit from the reliable protection offered by fuses like the H332004P include power supplies, industrial automation, telecommunications equipment, motor control systems, and renewable energy inverters. In these sectors, the integrity of solid-state components is vital for system functionality and safety. Littelfuse, a globally recognized leader in circuit protection, brings decades of expertise to the design and manufacturing of fuses, ensuring that each product, including the H332004P, delivers consistent and dependable performance. Choosing Littelfuse means investing in peace of mind and the longevity of your critical electrical systems. The H332004P is an essential component for any application where the protection of sensitive solid-state electronics is a top priority.
  • Littelfuse 3AB Very Fast-Acting Fuse for SCR and solid-state device protection
  • 4A current rating with a 250V AC/DC voltage rating
  • Designed to meet UL248-14 standards for reliable performance
  • RoHS Compliant and Lead-Free construction for environmental responsibility
  • Cartridge type for easy installation and replacement

Specifications

Amperage Rating
4 Amps
Application
electronic equipment & appliances
Brand Name
Littelfuse
Special Features
RoHS compliant and
Sub Brand
332 Series
Type
Cartridge
Package Dimensions (L x W x H)
1.25 IN x 0.25 IN x 0.25 IN
Package Dimensions (L x W x H)
3.175 cm x 6.35 mm x 6.35 mm
Package Weight (Imperial)
0.150 L
Package Weight (Metric)
0.068 kg
