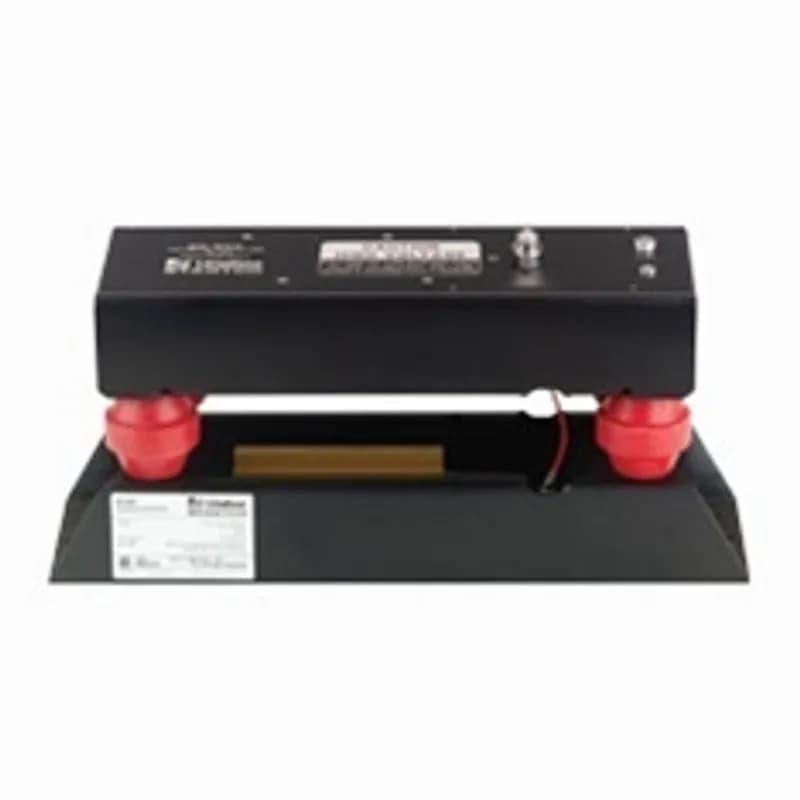

Littelfuse ER-5KV - ER-5KV is a sensing resistor accessory used on systems up to 5 kV (continuous duty). It is an accessory for SE-330, SE-325, and SE-330AU.
Littelfuse

ER-5KV

Alternate Item Number: ER-5KV

UPC: 079458977936

Documents & Media
BrochureTechnical DrawingSpecification Sheet

Contact for Pricing

Overview

The Littelfuse ER-5KV (SKU: ER-5KV) is a vital sensing resistor accessory designed for industrial systems operating up to 5 kV continuous duty. This accessory serves as the essential interface for Littelfuse SE-330, SE-325, and SE-330AU series relays, effectively reducing hazardous voltage levels to ensure safe and reliable operation. Engineered for precision and durability, the ER-5KV is part of Littelfuse's ER Series, providing a low-resistance path for fault currents in systems utilizing neutral grounding resistors (NGRs) or other high-resistance grounding configurations. This enables sensitive ground-fault detection and protects downstream equipment from overvoltage. The ER-5KV is compatible with current transformers (CTs) such as the Littelfuse ELCT5 (5 A primary) and ELCT30 (30 A primary) series, facilitating seamless integration into existing protection schemes for both low-resistance NGRs and other grounding applications. Industries including power generation, oil and gas, mining, and manufacturing benefit from its critical safety and monitoring functions. For instance, in power generation, it aids in detecting ground faults in medium-voltage systems to prevent failures and minimize downtime. In oil and gas, it helps meet stringent safety standards and protect sensitive equipment from transient overvoltages. The accessory features NEMA 3R weather protection, making it suitable for both indoor and outdoor installations in harsh environments. Professionals in electrical engineering and maintenance trust Littelfuse for reliable circuit protection and sensing solutions. The ER-5KV offers ease of installation and can be paired with the Littelfuse SE-IP65CVR-G hinged transparent cover for enhanced tamper resistance and IP65 protection. When selecting a sensing resistor accessory, consider system voltage, fault current levels, and environmental conditions. The ER-5KV is optimized for systems up to 5 kV with continuous duty cycles, ensuring consistent performance. Its compatibility with CTs and accessories like the SE-MRE-600 and RK-332 allows for flexible system design.
  • Designed for industrial systems up to 5 kV continuous duty
  • Accessory for Littelfuse SE-330, SE-325, and SE-330AU relays
  • Facilitates sensitive ground-fault detection
  • Compatible with Littelfuse ELCT5 and ELCT30 series CTs
  • NEMA 3R weather protection for indoor/outdoor use

Specifications

Application
NA
Brand Name
Littelfuse
Special Features
Used On Systems Up To 5 kV
Standard
CSA, UL
Sub Brand
ER-5KV Series
Type
Protection Relay
Package Weight (Imperial)
11.000 L
Package Weight (Metric)
5.000 kg

Similar Products

ER-5WP

Special Features: Used with the SE-325, SE-330, and SE-330AU

Sub Brand: ER 5WP Series

Voltage Rating: 5 kV AC

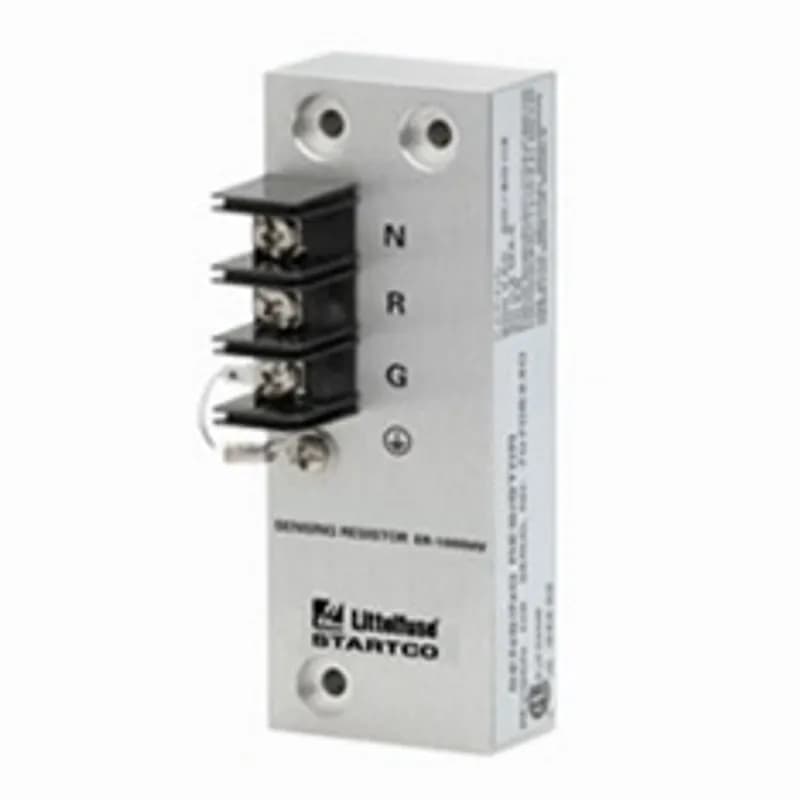

ER-1000HV

Special Features: Used with the SE-330HV

Standard: UL, CSA, C-Tick

Sub Brand: ER-1000HV Series

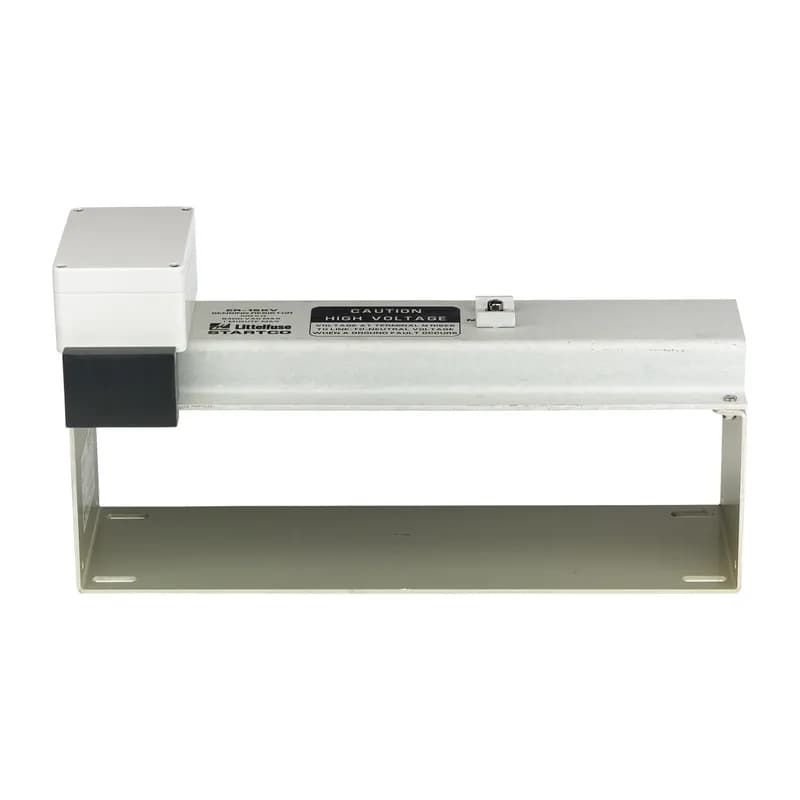

ER-15KV

Special Features: Used On Systems Up To 15 kV

Sub Brand: ER-15KV Series

Voltage Rating: 15 kV

ER-25KV

Special Features: Used On Systems Up To 25 kV

Sub Brand: ER-25KV Series

Voltage Rating: 25 kV

ER-35KV

Special Features: Used On Systems Up To 35 kV

Sub Brand: ER-35KV Series

Voltage Rating: 35 kV

ER-600VC

Special Features: Used On Systems Up To 1 kV

Sub Brand: ER-600VC Series

Voltage Rating: 1 kV

You May Also Be Interested In

ER-25KV is a sensing resistor accessory used on systems up to 25 kV (non-continuous duty). It is an accessory for SE-330, SE-325, SE-330AU, and SE-330HV.

ER-25KV

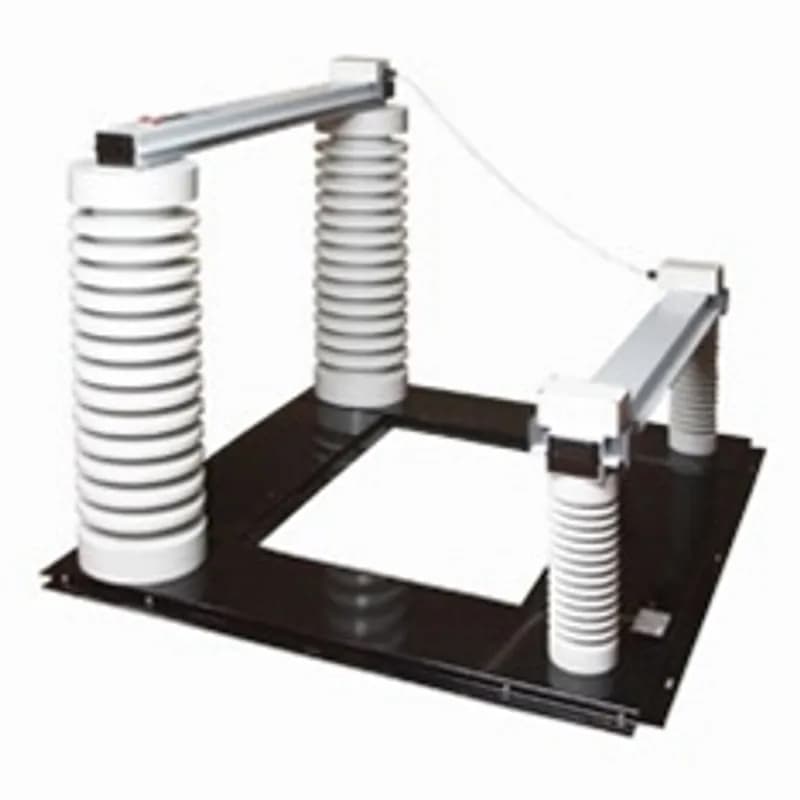

ER-72KV is a sensing resistor accessory used on systems up to 72 kV (non-continuous duty) to monitor the continuity of a neutral-grounding resistor. It is an accessory for SE-330HV.
