Littelfuse CAP-70/5/440 - 70+5MFD 370/440V OVAL RUN CAPACITOR
Littelfuse

CAP-70/5/440

UPC: 811068034759

Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

The Littelfuse CAP-70/5/440 Oval Run Capacitor is a premium-grade, dual-voltage capacitor engineered to deliver unmatched performance in industrial motor applications. Designed for systems requiring precise voltage regulation and stable capacitance, this capacitor combines a 70+5µF rating with a robust 370/440V rating to ensure reliable operation under demanding conditions. Whether used in HVAC systems, pumps, compressors, or other heavy-duty machinery, the CAP-70/5/440 provides the consistency and durability needed to extend motor life and reduce unscheduled downtime. Oval run capacitors like the Littelfuse CAP-70/5/440 are critical components in single-phase AC motor circuits, where they supply the necessary phase shift to initiate and maintain motor rotation. The dual-voltage design (370/440V) makes this capacitor versatile for both 370V and 440V systems, accommodating a wide range of industrial voltages without modification. Its oval shape is optimized for compact installation in tight motor control enclosures, offering space-saving advantages in modern industrial setups. Manufactured by Littelfuse, a global leader in circuit protection and power management solutions, the CAP-70/5/440 benefits from decades of engineering excellence and rigorous quality control. Littelfuse capacitors are trusted by professionals in HVAC, manufacturing, water treatment, and agricultural sectors for their long-term reliability and consistent performance. The 70+5µF capacitance tolerance ensures precise motor operation, minimizing energy waste and reducing heat generation—a key factor in preventing premature motor failure. Installation is straightforward, with clearly marked terminals for easy wiring in compliance with NEC and IEC standards. The capacitor’s robust construction resists vibration, moisture, and temperature extremes, making it suitable for harsh industrial environments. Regular maintenance checks are simplified due to its durable design, and Littelfuse’s extensive support network provides technical assistance and replacement parts worldwide. Professionals choose the Littelfuse CAP-70/5/440 for its proven track record in critical applications where failure is not an option. By selecting this capacitor, you invest in reduced maintenance costs, improved energy efficiency, and enhanced system reliability—all backed by Littelfuse’s industry-leading warranty and customer service. Whether retrofitting legacy systems or specifying components for new installations, the CAP-70/5/440 delivers the performance and peace of mind required in today’s industrial landscape.
  • Dual-voltage design (370/440V) for versatile industrial applications
  • 70+5µF capacitance for precise motor phase shift and efficiency
  • Oval form factor for compact installation in tight motor enclosures
  • Rugged construction resists vibration, moisture, and temperature extremes
  • Backed by Littelfuse’s industry-leading quality and support

Specifications

Series
CAP
Voltage Rating
370/440 V

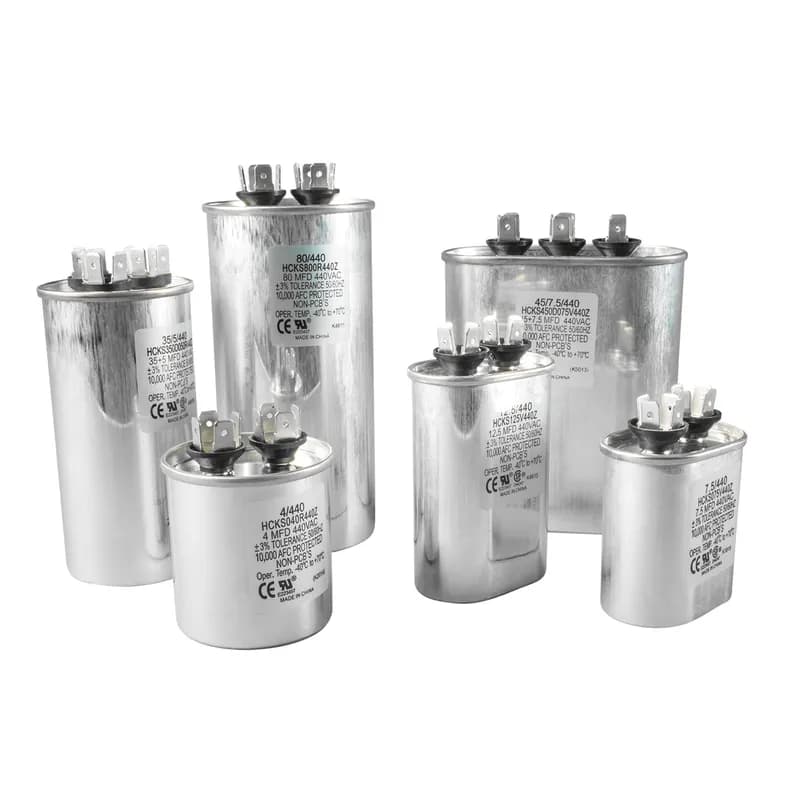

25+3MFD 370/440V OVAL RUN CAPACITOR
