Overview
- Balances runtime between two loads for reduced wear and extended equipment life
- 120 VAC input, SPDT output configuration with 8-pin base for easy integration
- Low-profile rotary selector switch locks operation to Load A or Load B
- Visual LED indicators show output relay status and active load
- Resets to Load A after power loss; front panel or DIN rail mountable
Specifications
Connection Type | 8-pin base |
Mounting Type | Front panel or DIN rail |
Mounting Type | Front panel (with BZ1 accessory) or DIN rail (with accessory socket) |
Poles | SPDT |
Series | ARP |
Voltage Rating | 120 VAC |
SE-325
SE-325 is a neutral-grounding resistor monitor with a supply voltage of 120 ac and a ground-fault trip level of 0.5–4.0 A.
SE-135-03

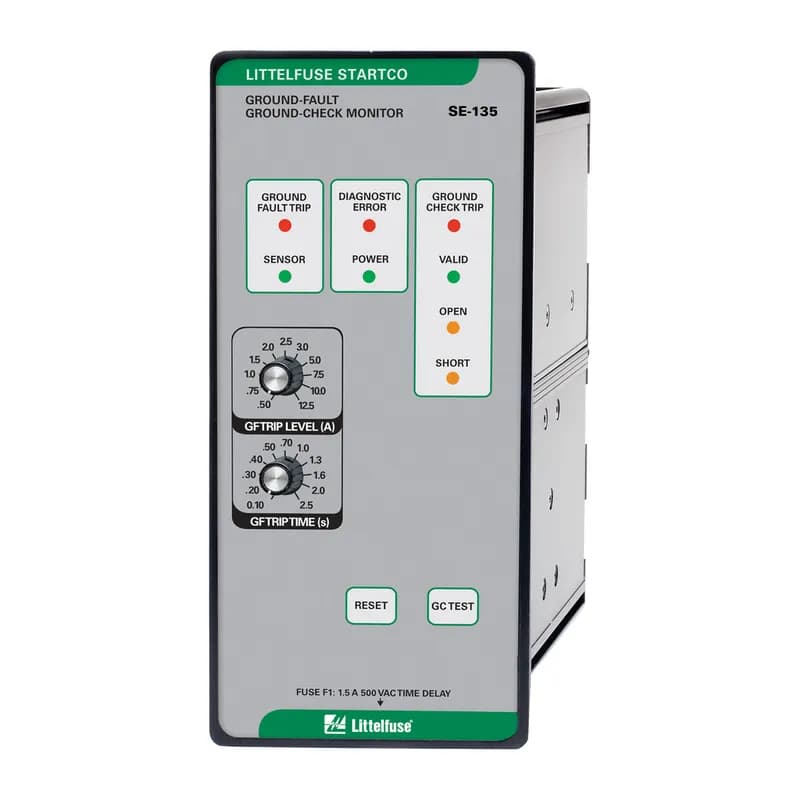

The SE-134C/SE-135 is a microprocessor-based, combination ground-wire monitor and ground-fault relay for resistance grounded or solidly grounded systems. It continuously monitors the integrity of the ground conductor to protect portable equipment from hazardous voltages caused by ground faults. The SE-134C/SE-135 is field proven in monitoring trailing cables on large mobile equipment such as drag-lines, mining shovels, shore-to-ship power cables, dock-side cranes, stacker-reclaimers, submersible pumps, and portable conveyors.
E7800.0080
Motorized Potentiometer 230-240V AC, 5k. The E7800 Motorized Potentiometer is typically used as an interface between increase/decrease relay contacts (or push buttons) and a device requiring control by an external potentiometer (e.g. the speed trim of an electronic governor). All three wires of the potentiometer are directly accessible on external connection terminals, thus providing the best possible flexibility for almost any application. A special version of the E7800 with DC voltage output is also available. The DC output voltage follows the position of the potentiometer. The design of the E7800 ensures that the potentiometer will “remember” its position although supply is lost
ISS-105-ISO
The ISS-105 is a “smart” five-channel intrinsically safe relay and pump controller. The ISS-105 can be configured for a wide variety of applications including alternating or non-alternating duplex, duplex separate pump stop (SPS), triplex and quadplex applications. It can be set up for pump-up or pump-down applications or can be used as a five-channel relay. The ISS-105 has a long list of features that are needed for multiple pump applications. The ISS-105 can indicate low, high and out-of-sequence alarms. If an out-of-sequence alarm occurs, the skipped pump(s) will be started as intended. The Model ISS-105 can be set up to do non-alternating control, alternating control and alternating control with one non-alternating pump. The non-alternating pump is intended for use with an emergency or jockey pump. The ISS-105 can start an emergency pump once every 50 cycles to keep it working freely. Using the built-in DIP switches, individual pumps can be disabled when taken out of service for repair or maintenance.
SE-330HV-03-00
SE-330HV-03-00 is an advanced ground-fault and neutral-grounding resistor monitor with a supply voltage ac of 65–265 and a supply voltage dc of 85–275. This monitor is used for high-voltage applications. Network communications is offered via USB; Ethernet (Dual RJ45).
ER-72KV

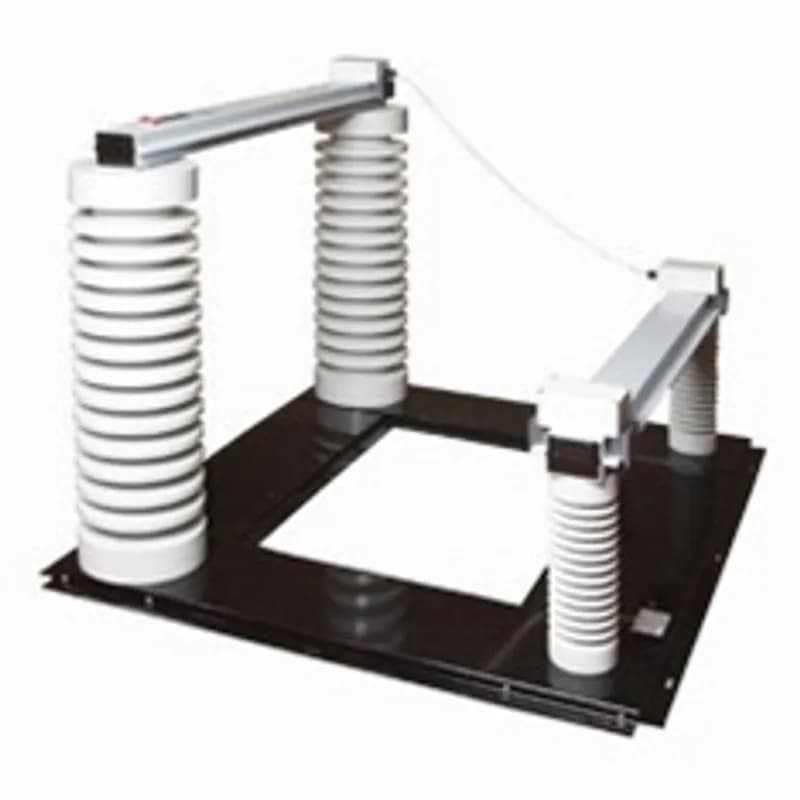

ER-72KV is a sensing resistor accessory used on systems up to 72 kV (non-continuous duty) to monitor the continuity of a neutral-grounding resistor. It is an accessory for SE-330HV.M1000.0080
Alarm Annunciator12-24V DCIP54. The M1000 is an Alarm Monitor capable of surveying the state of up to 10 potential free contacts. The inputs of the M1000 can be used to monitor both normally open (NO) and normally closed (NC) contacts. Each contact can be sourced to a positive or negative reference. The M1000 includes a total of 10 inputs. Each input controls two bright red LEDs and an open collector output. A built-in relay provides audible alarm through control of an external siren. The first incoming alarm is indicated with a quick flashing light, following alarms are indicated with slow flashing light. LEDs will keep flashing until the alarms are acknowledged, even though the input signal has been deactivated. Pressing the RESET pushbutton will acknowledge all new alarms whereby all flashing LEDs will change to steady light, provided that the related inputs are still active. Pressing the RESET push button will also silence the siren. The reset sequence is programmable.E7800.0640
Motorized Potentiometer24V DC,1turn 5k. The E7800 Motorized Potentiometer is typically used as an interface between increase/decrease relay contacts (or push buttons) and a device requiring control by an external potentiometer (e.g. the speed trim of an electronic governor). All three wires of the potentiometer are directly accessible on external connection terminals, thus providing the best possible flexibility for almost any application. A special version of the E7800 with DC voltage output is also available. The DC output voltage follows the position of the potentiometer. The design of the E7800 ensures that the potentiometer will “remember” its position although supply is lost
50R-200-2
The 50R single-phase voltage monitor has a voltage-sensing circuit which constantly monitors the single-phase power for a low voltage condition. Single-phase motors on fans, compressors, air conditioners, heat pumps, well pumps, sump pumps and small conveyor motors are all applicable to the Model 50R. When a harmful condition is detected, the output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to an acceptable level and a specified amount of time has elapsed (restart delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions.
MPU-CIM-00-00

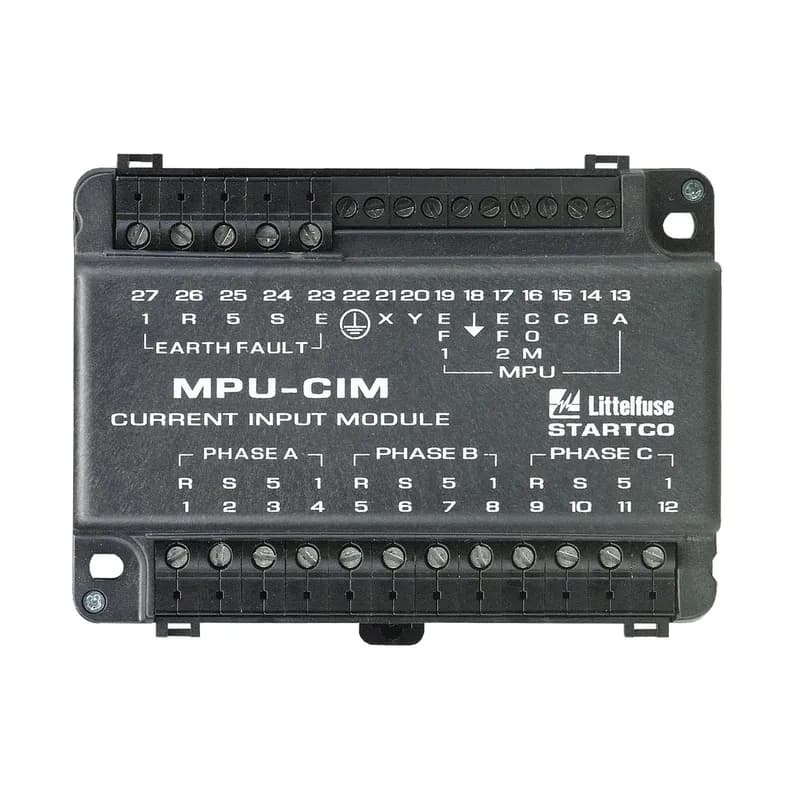

Interface between MPU-32 or FPU-32 and 5-A-secondary, 1-A-secondary, and sensitive current transformers.SE-325DNT
SE-325DNT is a neutral-grounding resistor monitor with a supply voltage of 120 ac-dc and a ground-fault trip level of 0.5–4.0 A.Frequently Asked Questions
What is the ARP41 product used for?
The ARP41 is an alternating relay used in systems where equal run time for two motors is desirable.
What voltage is required for the ARP41?
The ARP41 requires 120VAC input voltage with a tolerance of -20% to 10%.
What is the operating temperature range for the ARP41?
The ARP41 has an operating temperature range of -20° to 60°C.
What type of output form does the ARP41 have?
The ARP41 has an SPDT (Single Pole Double Throw) output form.
What is the resistive load rating for the ARP41?
The ARP41 has a resistive load rating of 10A at 120/240VAC and 28 VDC.
How does the selector switch on the ARP41 function?
The selector switch allows selection of alternating operation or continuous operation of either load.
What happens if input voltage is lost on the ARP41?
Loss of input voltage resets the unit, and Load A becomes the lead load for the next operation.
What is the isolation voltage for the ARP41?
The isolation voltage for the ARP41 is greater than or equal to 1500V RMS from input to output.
Can the ARP41 be mounted on a DIN rail?
Yes, the ARP41 can be mounted on a 35 mm DIN-rail with an accessory socket like the NDS-8 or NDS-11.
What are the dimensions of the ARP41 relay?
The ARP41 has dimensions of H 60.7 mm (2.39 in); W 45.2 mm (1.78 in); D 81.3 mm (3.2 in).
