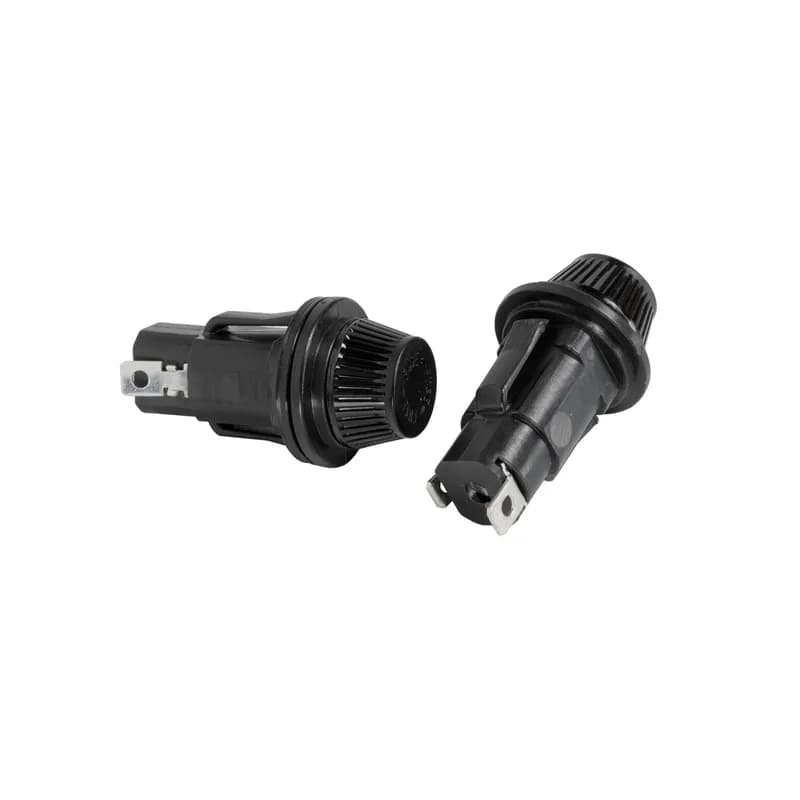

Littelfuse 5720CC - The 572 series panel mount fuse holders are designed to minimize installation time. The unique design incorporates a snap-mount feature that allows the holder to be installed without any tools or mounting hardware. Features and Benefits: Installs without any tools or fasteners. For Class CC and Midget fuses. Watertight Versions Available. Attached wire leads are possible for further assembly time reduction. Voltage Rating: 600 Volts. Ampere Rating: 30 Amperes for Class CC and Midget fuses.
Littelfuse

5720CC

Alternate Item Number: 057200CCL

UPC: 079458118001

Documents & Media
BrochureSpecification Sheet

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

The Littelfuse 5720CC (SKU: 5720CC) panel mount fuse holder from the 572 series delivers rapid, tool-free installation for industrial electrical systems. Its innovative snap-mount design eliminates the need for mounting hardware or tools, reducing assembly time by up to 60% compared to traditional fuse holders. Engineered for compatibility with both Class CC and Midget fuses, the 5720CC offers broad application flexibility while maintaining a voltage rating of 600V and a current rating of 30A. This fuse holder is ideal for control panels, power distribution units, and industrial machinery where reliable circuit protection is critical. The 5720CC series supports optional pre-attached wire leads, further streamlining wiring processes and reducing labor costs. For environments exposed to moisture, dust, or harsh conditions, Littelfuse offers watertight versions that provide enhanced protection while ensuring operational integrity. The Class CC fuse compatibility includes a rejection feature that prevents misapplication of lower-rated fuses, enhancing system safety and compliance with industry standards. With a compact footprint and robust construction, the 5720CC is trusted by electrical engineers, panel builders, and maintenance professionals for optimizing installation processes without compromising safety or reliability. Its design meets UNSPSC code 39121624 and is manufactured in the US.
  • Tool-free snap-mount installation—no tools or mounting hardware required
  • Supports Class CC and Midget fuses with 600V voltage and 30A current ratings
  • Optional pre-attached wire leads reduce assembly time and labor costs
  • Watertight versions available for protection in harsh, moisture-prone environments
  • Rejection feature prevents misapplication of lower-rated fuses for enhanced safety

Specifications

Brand Name
Littelfuse
Special Features
Panel mount fuse holders are for Midget-Style and class CC fuses
Standard
UL Listed CSA
Sub Brand
572 Series Fuseholder
Type
Panel Mount
