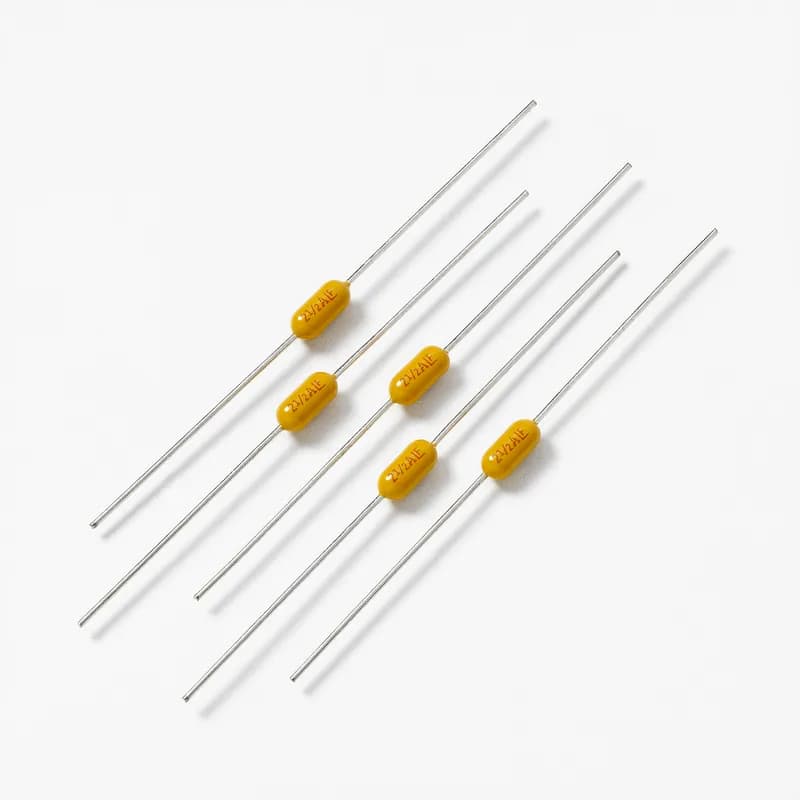

Littelfuse 473005L - FUSE 125V PICO II SB TERM ROHS 5A. The PICO® II Slo-Blo® Fuse combines time-delay performance characteristics with the proven reliability of a PICO® Fuse. Features: Enhanced inrush withstand. Small size. Wide range of current ratings (375mA - 7A). RoHS compliant. Wide operating temperature range. Low temperature de-rating.
Littelfuse

473005L

Alternate Item Number: 0473005.VXL

UPC: 079458129199

Documents & Media
BrochureTechnical BulletinTechnical DrawingSpecification Sheet

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The Littelfuse 473005L PICO® II Slo-Blo® Fuse (SKU: 473005L) provides reliable time-delay circuit protection in a compact, subminiature package. This fuse combines the proven dependability of the PICO® Fuse with enhanced inrush withstand capabilities, making it suitable for industrial and electronic applications with high initial current surges. Its robust design ensures consistent performance across a broad operating temperature range (-55°C to +125°C) with low temperature de-rating. The 5A, 125V rating of the 473005L model is ideal for power supply, motor control, and general electronic protection. The screw terminal connection facilitates secure installation. Littelfuse is a leader in circuit protection, and the PICO® II series exemplifies their commitment to quality. These fuses meet stringent industry standards, including RoHS compliance. The small size of the PICO® II fuse is advantageous in space-constrained designs. Key features include time-delay performance for nuisance tripping avoidance, enhanced inrush withstand for motors and transformers, compact PICO® II size, RoHS compliance, wide operating temperature range, low temperature de-rating, and screw terminal connection. Applications include power supplies, industrial control systems, medical equipment, telecommunications devices, and consumer electronics. The PICO® II Slo-Blo® fuse from Littelfuse offers robust protection for sensitive circuitry.
  • Time-delay performance for nuisance tripping avoidance
  • Enhanced inrush withstand for motors and transformers
  • Compact PICO® II subminiature size
  • 5A current rating, 125V voltage rating
  • RoHS compliant and wide operating temperature range (-55°C to +125°C)

Specifications

Application
electronic equipment & appliances
Brand Name
Littelfuse
Connection Type
Screw Terminal
Current Rating
5 A
Series
PICO II Slo-Blo
Size
Subminiature
Special Features
Wide operating temperature range
Standard
CSA Approval
Sub Brand
473 Series PICO II Slo-Blo
Type
Small Size
Voltage Rating
125 V
