Hammond Power TE3A0020KGM - 600V Class Three Phased DOE2016 and NRCan 2019 Compliant Energy Efficient Drive Isolation Transformer 20kVA 480D-380Y/220 V CU 60Hz 3R
Hammond Power

TE3A0020KGM

UPC: 803423144753

Documents & Media
BrochureSpecification Sheet

Contact for Pricing

Overview

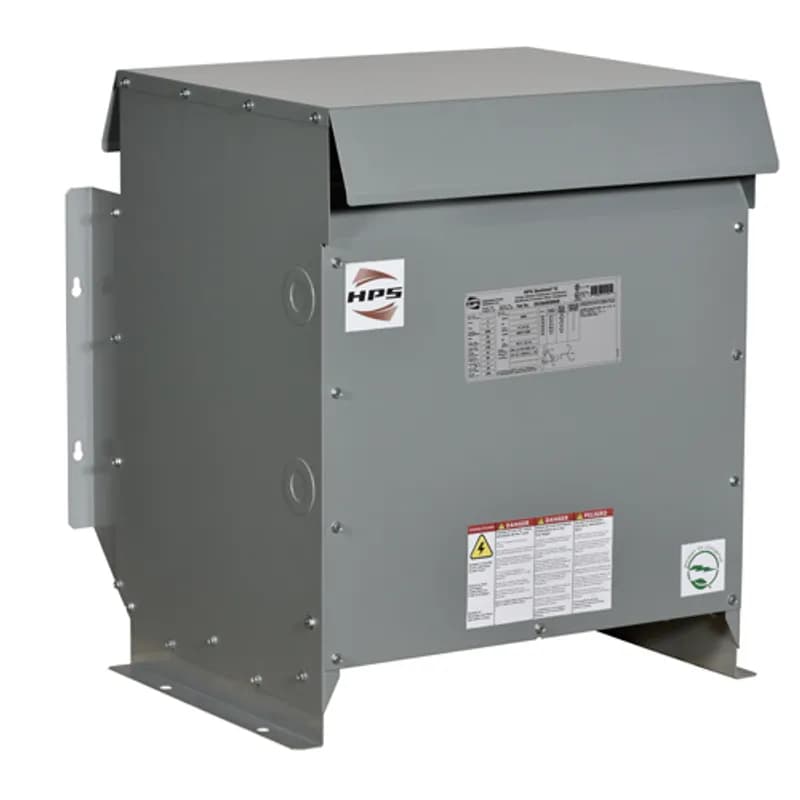

The Hammond Power TE3A0020KGM is a 20kVA, 600V-class three-phase drive isolation transformer engineered for compliance with DOE2016 and NRCan 2019 energy efficiency standards. This transformer features a delta-wye (Δ-Y) connection configuration, delivering 480V delta primary to 380V wye or 220V wye secondary output at 60Hz, making it ideal for industrial motor drives, variable frequency drives (VFDs), and power conversion systems. Constructed with copper windings, the TE3A0020KGM ensures low losses, high reliability, and long service life in demanding electrical environments. The transformer is housed in a NEMA Type 3R enclosure with an IP3R ingress protection rating, providing protection against dust ingress and water spray from any angle. Rated for continuous operation, this transformer is designed for indoor or outdoor installations where environmental exposure is a concern. Its compact size and robust construction make it suitable for integration into control panels, switchgear, or standalone installations. The TE3A0020KGM is manufactured in the US, ensuring high-quality craftsmanship and adherence to stringent North American electrical standards. With a voltage rating of 480-220VAC and a three-pole configuration, this transformer is optimized for three-phase power systems requiring isolation and voltage transformation. Whether used in commercial buildings, industrial facilities, or renewable energy systems, the TE3A0020KGM delivers consistent performance and energy efficiency, reducing operational costs while maintaining compliance with regulatory standards.
  • DOE2016 and NRCan 2019 compliant for energy efficiency
  • 20kVA three-phase capacity with 480D-380Y/220V output
  • Delta-Wye (Δ-Y) connection for optimal power distribution
  • Copper windings for low losses and high reliability
  • NEMA Type 3R and IP3R rated for indoor/outdoor use

Specifications

Application
Variable Speed Drives.
Efficiency
NRCan 2018 Energy Efficient
Enclosure
DH1-N3R - Indoor or Outdoor
Enclosure Colour
ANSI 61 Grey, UL50
Enclosure Type
3R
Frequency
60 Hz
Frequency Rating
60 HZ
Height
22 in
Insulation Class
220 Deg C Class
KVA Rating
20 KVA
Length
20.1 in
Mounting
Floor or Wall mount
Mounting Method
Wall and Floor
NEMA Frame Size
Type 3R
Number Of Phases
3
Phase
3PH
Primary Voltage
480D V
Secondary Voltage
380Y/220 V
Sound Level dBA
Meets NEMA ST-20 standards
Special Features
Meets NRCan 2018 efficiencies and designed to meet rugged demands of both AC and DC variable speed drives and alos to provide the required voltage change. Comes standard in an outdoor enclosure and a thermal warning switch.
Standard
CSA, UL
Temperature Rating
Typical 30 Average/ 40 Maximum Deg C
Temperature Rise
150 °C
Transformer Rating
20kVA
Type
Transformers > Drive Isolation > NRCan 2018 Energy Efficient
Wall Mounting
Yes
Warranty
10 year warranty
Weight
230 L
Width
21.5 in
Width
546.1 mm
Winding
Copper
Package Dimensions (L x W x H)
20.1 IN x 21.5 IN x 22 IN
Package Dimensions (L x W x H)
51.054 cm x 54.61 cm x 55.88 cm
Package Weight (Imperial)
230.000 L
Package Weight (Metric)
104.328 kg
