Overview

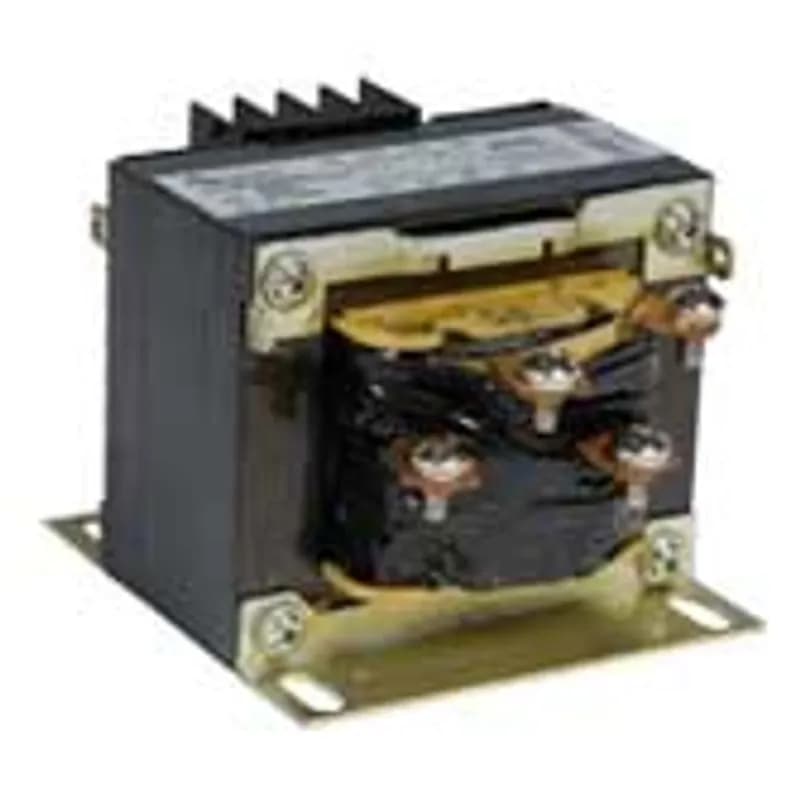

- 50 kVA capacity for general purpose industrial loads
- 240x480V primary voltage and 12x24V secondary voltage
- Open-style core and coil construction for efficient operation
- UL/CSA certified for safety and reliability
- Manufactured in the USA with high-quality silicon steel laminations
Specifications
Application | HVAC, signals and alarm systems, motor control circuits, lighting and circuit isolation |
Enclosure | Core and Coil |
Frequency Rating | 50 HZ |
Height | 2.6 in |
Length | 2.6 in |
Mounting | Panel |
Special Features | Control transformer for stanard commercial loads without high current inrush, optional finger safe covers are available. |
Standard | csa, ul, ce |
Temperature Rating | Typical 30 Average/ 40 Maximum Deg C |
Type | Tranformer > Dry Type > Control > Open Core and coil |
Wattage | 50 VA |
Width | 3.35 IN |
Package Dimensions (L x W x H) | 2.6 IN x 3.35 IN x 2.6 IN |
Package Dimensions (L x W x H) | 66 mm x 85 mm x 66 mm |
Package Weight (Imperial) | 1.700 L |
Package Weight (Metric) | 0.800 kg |
