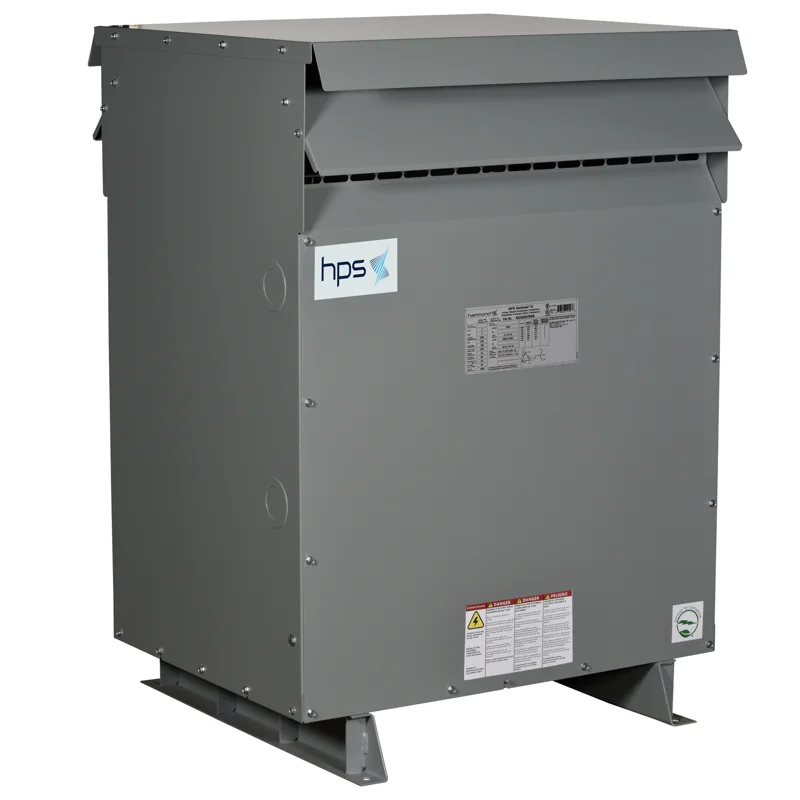

Hammond Power SK3A0500PK9S - 600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient K-Factor Transformer, K-Factor 9, 600D PV, 480Y/277 SV, 500 kVA, Three Phase, Aluminum Wound, Shielded
Hammond Power

SK3A0500PK9S

UPC: 803423130077

Documents & Media
BrochureSpecification Sheet

Contact for Pricing

Overview

The Hammond Power SK3A0500PK9S is a 500 kVA, three-phase, K-Factor transformer designed for energy efficiency and compliance with DOE2016 and NRCan 2019 standards. This transformer features aluminum windings and a K-Factor rating of 9, making it an ideal solution for mitigating harmonic distortion caused by non-linear loads commonly found in industrial and commercial applications. Its robust construction and shielded mounting type ensure reliable operation in demanding environments. The primary voltage rating is 600D PV, and the secondary voltage is 480Y/277 V SV, providing versatile power distribution capabilities. Engineered for superior performance, this transformer effectively handles the increased heat and current associated with harmonic-rich environments, protecting sensitive downstream equipment. The use of aluminum windings contributes to its lightweight design and cost-effectiveness without compromising electrical performance. This unit is manufactured in the US, ensuring adherence to stringent quality control and manufacturing processes. The SK3A series from Hammond Power is recognized for its commitment to energy savings and operational reliability, making the SK3A0500PK9S a sound investment for facilities seeking to optimize their electrical infrastructure and reduce energy consumption while maintaining power quality. Its specific application in environments with significant harmonic content, such as those with VFDs, LED lighting, and other electronic loads, is a key benefit. The 600D PV primary and 480Y/277 SV secondary voltage configuration offers flexibility for various power system designs. Choose the Hammond Power SK3A0500PK9S for a dependable, energy-efficient, and harmonic-mitigating transformer solution.
  • 500 kVA, Three Phase K-Factor Transformer
  • DOE2016 and NRCan 2019 Compliant
  • 600D PV Primary / 480Y/277 V SV Secondary
  • Aluminum Wound for Energy Efficiency
  • Shielded Mounting Type for Enhanced Protection

Specifications

Application
Addresses the overheating problems due to harmonics associated with non-linear loads where drives, personal computers, telecommunications equipment, broadcasting equipment and other similar power electronics are found in high concentrations.
Cable Entry
Side knock-outs standard on all units
Cooling
Convection cooled
Depth
41.5000 IN
Enclosure
DH6-N3R - Indoor or Outdoor
Enclosure Color
ANSI 61 Grey
Enclosure Type
3R
Frequency
60 Hz
Frequency Rating
60 HZ
Height
64 IN
KVA Rating
500 KVA
Length
41.5 IN
Mounting
Floor Mount
Mounting Method
Wall/Floor
Number Of Phases
3
Number Of Taps
ST-20 compliant
Phase
A - 3PH Delta-Wye-N
Phase
3PH
Primary Voltage
600D V
Primary Voltage
600
Secondary Voltage
480Y/277V
Sound Level dBA
Meets NEMA ST-20 standards
Special Features
Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs.
Standard
CSA, UL
Temperature Rating
Typical 30 Average/ 40 Maximum Deg C
Temperature Rise
150
Transformer Rating
500kVA
Type
Transformer > Distribution > DOE 2016 Energy Efficient > K Factor > Three Phase
Wall Mounting
No
Warranty
10 year warranty
Weight
2850.000 lbs
Width
49 in
Width
1244.6 mm
Winding
S - AL + Shield
Winding
AL
Package Dimensions (L x W x H)
41.5 IN x 49 IN x 64 IN
Package Dimensions (L x W x H)
105.41 cm x 124.46 cm x 162.56 cm
Package Weight (Imperial)
2850.000 L
Package Weight (Metric)
1292.760 kg

Similar Products

SK3A0500PK9K

Winding: K - CU + Shield

Weight: 3300.000 lbs

Winding: CU

SK3A0500PK2S

Enclosure: Contact HPS

Height: Contact HPS in

Length: Contact HPS in

SK3A0500PK3S

Weight: 2900.000 lbs

SK3A0500PK4S

Weight: 2800.000 lbs

Voltage Rating: 600D PV, 480Y/277 V

Material: Aluminum

SK3A0500PB9S

Secondary Voltage: 208Y/120V

SK3A0500PK2K

Enclosure: Contact HPS

Height: Contact HPS in

Length: Contact HPS in
