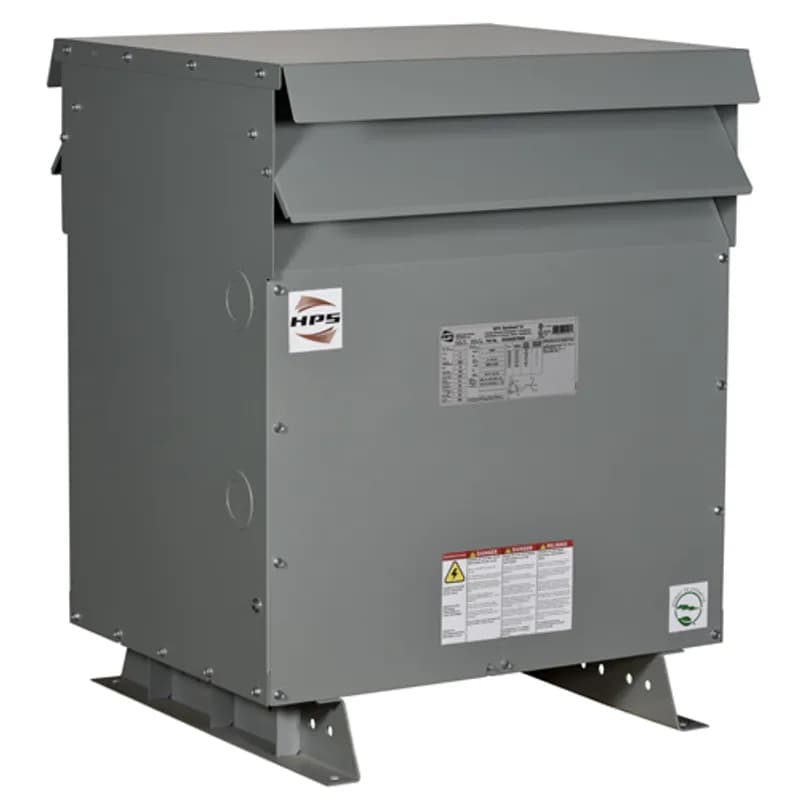

Hammond Power SK3A0225KB3S - 600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient K-Factor Transformer, K-Factor 13, 480D PV, 208Y/120 SV, 225 kVA, Three Phase, Aluminum Wound, Shielded
Hammond Power

SK3A0225KB3S

UPC: 803423130237

Documents & Media
BrochureSpecification Sheet

Contact for Pricing

Overview

The Hammond Power SK3A0225KB3S is a 225 kVA, three-phase, K-Factor transformer designed for energy efficiency and compliance with DOE2016 and NRCan 2019 standards. This transformer features aluminum windings and is shielded for enhanced performance. Its K-Factor rating of 13 makes it an ideal solution for mitigating harmonic distortion commonly found in non-linear loads, such as those generated by electronic devices, variable frequency drives (VFDs), and LED lighting. Key specifications include a primary voltage of 480D PV and a secondary voltage of 208Y/120 SV. The aluminum wound construction offers a cost-effective and reliable alternative for power distribution. The shielding integrated into the design helps to reduce electromagnetic interference (EMI), ensuring cleaner power output and protecting sensitive equipment. This transformer is manufactured in the USA, ensuring adherence to stringent quality control and manufacturing processes. Ideal for industrial facilities, commercial buildings, and data centers where harmonic-rich loads are prevalent, the SK3A0225KB3S provides a stable and efficient power supply, contributing to reduced energy consumption and operational costs. Its robust design and compliance with energy efficiency regulations make it a sustainable choice for modern electrical infrastructure.
  • 225 kVA, Three Phase K-Factor Transformer
  • DOE2016 and NRCan 2019 Compliant
  • K-Factor 13 for Harmonic Distortion Mitigation
  • 480D PV Primary / 208Y/120 SV Secondary
  • Aluminum Wound, Shielded Construction

Specifications

Application
Addresses the overheating problems due to harmonics associated with non-linear loads where drives, personal computers, telecommunications equipment, broadcasting equipment and other similar power electronics are found in high concentrations.
Cable Entry
Side knock-outs standard on all units
Cooling
Convection cooled
Depth
34.0000 IN
Enclosure
DH5-N3R - Indoor or Outdoor
Enclosure Color
ANSI 61 Grey
Enclosure Type
3R
Frequency
60 Hz
Frequency Rating
60 HZ
Height
52 in
KVA Rating
225 KVA
Length
34 in
Mounting
Floor Mount
Mounting Method
Wall/Floor
Number Of Phases
3
Number Of Taps
ST-20 compliant
Phase
A - 3PH Delta-Wye-N
Phase
3PH
Primary Voltage
480D V
Primary Voltage
480 VAC
Secondary Voltage
208Y/120V
Sound Level dBA
Meets NEMA ST-20 standards
Special Features
Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs.
Standard
CSA, UL
Temperature Rating
Typical 30 Average/ 40 Maximum Deg C
Temperature Rise
150
Transformer Rating
225kVA
Type
Transformer > Distribution > DOE 2016 Energy Efficient > K Factor > Three Phase
Wall Mounting
No
Warranty
10 year warranty
Weight
1500.000 lbs
Width
37.5 in
Width
952.5 mm
Winding
AL
Winding
S - AL + Shield
Package Dimensions (L x W x H)
34 IN x 37.5 IN x 52 IN
Package Dimensions (L x W x H)
86.36 cm x 95.25 cm x 132.08 cm
Package Weight (Imperial)
1500.000 L
Package Weight (Metric)
680.400 kg
