Contact for Pricing

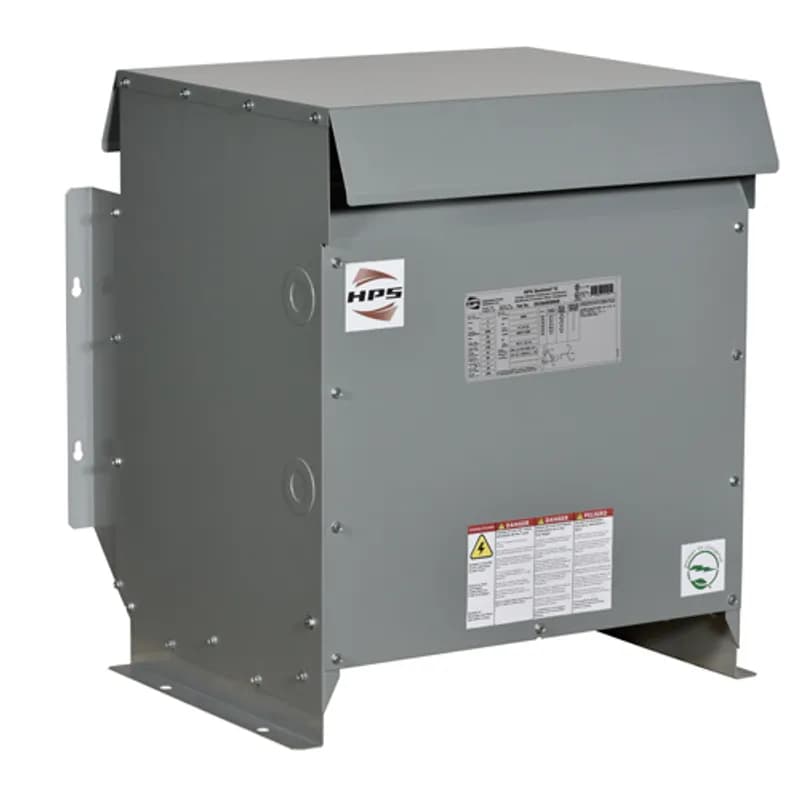

Overview
- 150 kVA capacity for substantial power distribution
- 600V Class primary and 120/240V secondary voltages
- DOE2016 and NRCan 2019 energy efficiency compliant
- Single-phase operation for general-purpose loads
- Copper wound for superior electrical conductivity and efficiency
Specifications
Application | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
Cable Entry | Knock Outs |
Connection Type | 120/240 V |
Cooling | Convection cooled |
Enclosure | NJ4-N3R - Indoor or Outdoor |
Enclosure Color | ANSI 61 Grey, UL 50 |
Enclosure Type | Type 3R |
Frequency | 60 Hz |
Frequency Rating | 60 HZ |
Height | 44.5 in |
Impedance | Typically 1.8% to 7.5% |
Insulation Class | 220°C |
KVA Rating | 150 KVA |
Length | 29.5 in |
Material | Copper |
Mounting | Floor Mount |
Mounting Method | Floor |
Number Of Taps | ST-20 compliant |
Phase | 1PH |
Phase | L- 1PH Single-Dual |
Poles | 1PH |
Primary Voltage | 600 V |
Secondary Voltage | 120/240V |
Series | SG3L |
Size | 150 kVA |
Sound Level dBA | Meets NEMA ST-20 standards |
Special Features | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
Standard | CSA, UL |
Temperature Rating | Typical 30 Average/ 40 Maximum Deg C |
Temperature Rise | 150°C |
Termination | Mechanical Lugs |
Transformer Rating | 150kVA |
Type | Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Single Phase |
Voltage Rating | 600V/120-240V |
Voltage Rating | 600V/120/240V |
Voltage Rating | 600 V |
Wall Mounting | No |
Warranty | 10 year warranty |
Width | 31.5 in |
Width | 800.1 mm |
Winding | Copper |
Winding | C - Copper |
Package Dimensions (L x W x H) | 29.5 IN x 31.5 IN x 44.5 IN |
Package Dimensions (L x W x H) | 74.93 cm x 80.01 cm x 113.03 cm |
Package Weight (Imperial) | 920.000 L |
Package Weight (Metric) | 417.312 kg |
