Hammond Power SFK3 - Control Transformer Accessories - Secondary Fuse Kit 3
Hammond Power

SFK3

UPC: 803423077686

Documents & Media
BrochureTechnical DrawingSpecification Sheet

Contact for Pricing

Overview

The Hammond Power SFK3 Secondary Fuse Kit (SKU: SFK3) is designed to provide essential overcurrent protection for HPS control transformers. This kit includes components necessary for implementing secondary fuse protection, ensuring the safe operation of your control systems. Standard secondary fuse kits, like the SFK3, are typically supplied with 13/32” x 1 1/2” midget/type CC fuse clips, mounting screws, and primary/secondary voltage links. These kits are crucial for safeguarding transformer windings from excessive current, which can be caused by short circuits or overloads. Proper fuse selection, guided by the transformer's current rating and relevant electrical codes (CSA, UL), is paramount. The catalog indicates that the overcurrent protection listed is generally 125% of the rated current, with recommendations to choose the next higher standard fuse rating if exact matches are unavailable. For transformers with primary current less than 2 amps, a different protection strategy (300% rating) may apply, also requiring selection of the next higher standard fuse. The SFK3 is manufactured in the USA, adhering to stringent quality standards. This accessory is vital for maintaining the longevity and reliability of your HPS control transformer installations, preventing damage and downtime.
  • Provides essential secondary overcurrent protection for HPS control transformers.
  • Includes 13/32” x 1 1/2” midget/type CC fuse clips.
  • Comes with fuse clip mounting screws and primary/secondary voltage links.
  • Designed to safeguard transformer windings from damage due to overloads or short circuits.
  • Manufactured in the USA by Hammond Power.

Specifications

Amperage Rating
30 Amp Max.
Application
Add fuse mounting options.
Class
CC, Midget
Color
Metallic
Connection
Snap On
Material
Steel
Mounting
Terminal Block
Operating Temperature
40 Deg C
Phase
1
Special Features
Fuse Holder options
Standard
Not Applicable
Type
Accessories > Fuse Kit or Fuse Holders
Voltage Rating
600 Volt maximum
Wattage
Not Applicable
Control Transformer Accessories - Secondary Fuse Kit 1

SFK1

Control Transformer Accessories - Secondary Fuse Kit 1
Control Transformer Accessories - Fuse Kit, Dual Midget Pri

FK-12

Control Transformer Accessories - Fuse Kit, Dual Midget Pri

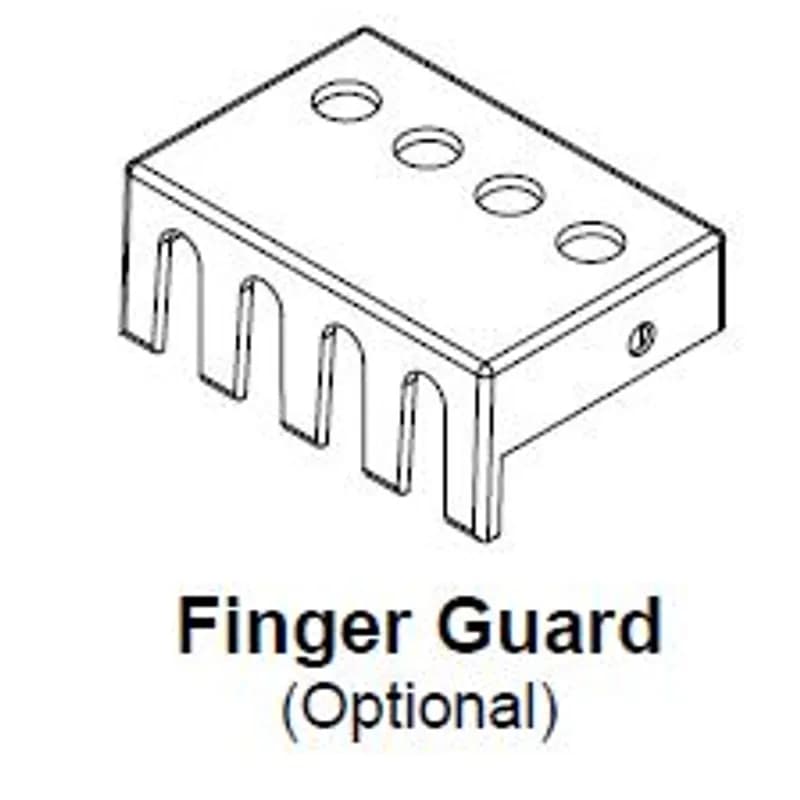

Control Transformer Accessories - Finger Guards, 50 to 350 VA, AR, QR, PR, KHR, SR Suffixes
