Contact for Pricing

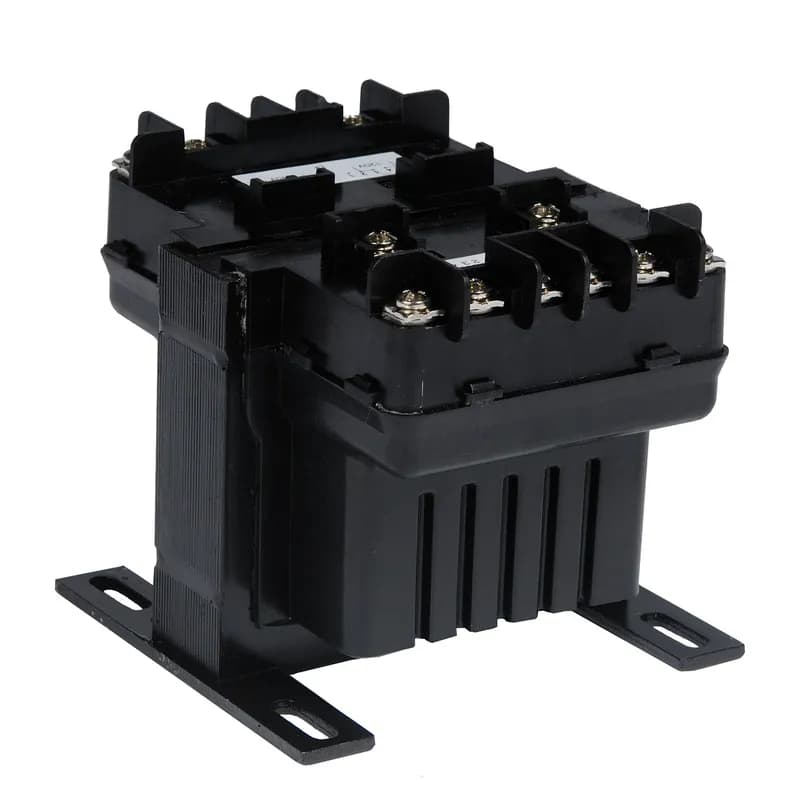

Overview
- 1000VA capacity for industrial control circuits
- Machine tool rated for demanding applications
- 208x416V primary and 120x240V secondary voltages
- Molded construction for protection against contaminants
- UL and CSA certified for safety compliance
Specifications
Frequency | 60 Hz |
Material | Molded |
Series | HPS Imperator™ |
Series | HPS Imperator™ series |
Voltage Rating | 208x416 PV, 120x240 SV |
Voltage Rating | 208x416 V / 120x240 V |
Voltage Rating | 208x416V primary, 120x240V secondary |
Package Dimensions (L x W x H) | 5.25 IN x 6.81 IN x 4.94 IN |
Package Dimensions (L x W x H) | 133.35 mm x 172.98 mm x 125.48 mm |
Package Weight (Imperial) | 23.600 L |
Package Weight (Metric) | 10.700 kg |
How to Install the HPS Imperator® Control Transformer
This guide provides step-by-step instructions for installing and wiring the HPS Imperator® control transformer, including the setup of optional accessories.
Estimated time: 1h
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Fuse clips, Voltage links, Finger guard (optional)
- Mount the transformer
Securely mount the HPS Imperator® control transformer to a suitable surface using appropriately sized mounting screws. Ensure the transformer is level and stable.
- Install fuse clips
Remove the appropriate captive washer screw(s) from the terminal block and install the fuse clip(s) using the new terminal screw(s) provided in the accessory kit.
- Connect voltage links
Install the voltage links between the primary or secondary terminal bays as indicated in the assembly drawings provided with your transformer. Ensure all connections are secure.
- Wire connections
Use wire sizes between 18 AWG to 14 AWG for solid wire and 14 AWG for stranded wire. For connections outside this range, use ring or spade connectors.
- Torque terminal screws
Torque all terminal screws to a range of 12 to 14 inch-lbs to ensure secure connections.
- Install optional finger guard
If using a finger guard, install it according to the instructions provided in the accessory kit to enhance safety.
- Verify connections
Use a multimeter to verify all electrical connections are correct and secure before powering on the transformer.
Frequently Asked Questions about Hammond Power
What certifications and standards do Hammond Power products comply with?
Hammond Power products are certified to UL (Underwriters Laboratories) and CSA (Canadian Standards Association) standards in North America. Our products meet rigorous safety and performance requirements, with many items classified as UL Listed Products or Recognized Components. We also comply with international certifications including China Compulsory Certification (CCC), C-Tick for Australian EMC requirements, and ANCE for Mexico.
What is Hammond Power's warranty policy?
Hammond Power provides a standard one-year warranty on all products, covering defects in workmanship and materials. Products will be repaired or replaced free of charge if found defective upon factory inspection. The warranty does not cover damage from improper handling, incorrect application, or faulty installation.
What industries and applications are Hammond Power products used for?
Hammond Power products are engineered for critical industrial and commercial applications across multiple sectors, including petrochemical, mining, construction, renewable energy, e-mobility, power storage, and microgrids. Their comprehensive product range of dry-type transformers, power quality solutions, and magnetic components enables electrical distribution and electrification in diverse industrial environments worldwide.
What are the main product lines offered by Hammond Power?
Hammond Power Solutions offers a comprehensive range of dry-type and liquid-filled transformers for industrial and commercial applications. Their primary product lines include power transformers for renewable energy, e-mobility, data centers, microgrids, and industrial settings. The company provides both standard and custom-designed transformer solutions that are critical to electrical distribution networks across multiple industries.
What are the key features of Hammond Power products?
Hammond Power products feature advanced dry-type and liquid-filled transformers engineered for diverse industrial applications, with capabilities spanning renewable energy, e-mobility, data centers, microgrids, and industrial/commercial sectors. Key features include high-performance electrical steel laminations, windings available in copper or aluminum, advanced insulation systems (VPI or Cast Resin), Basic Impulse Level ranges from 10 kV to 250 kV, and custom design capabilities with over 3,000 unique transformer designs engineered annually.
What environmental ratings do Hammond Power products have?
Hammond Power offers industrial enclosures with comprehensive environmental ratings, including UL/cUL 508A ratings of Type 1, 2, 3, 4, 4X, 12, and 13. Their products meet IEC 60529 IP66 standards, providing robust protection against dust, water ingress, and harsh environmental conditions. Specific ratings vary by product series, with options ranging from indoor Type 1 enclosures to outdoor-rated Type 4X enclosures suitable for challenging industrial environments.
What technical support does Hammond Power offer?
Hammond Power Solutions provides comprehensive technical support through multiple channels. Customers can access technical resources via phone support in Canada, the United States, Mexico, and internationally, with toll-free numbers and regional contact points. Their technical team offers personalized assistance for custom design inquiries, helping customers find standard transformer and power solutions or develop specialized electrical products for various industrial applications.
What communication protocols do Hammond Power products support?
Hammond Power products support multiple industrial communication protocols, including Modbus RTU, PROFIBUS DP, PROFINET, EtherNet/IP, and CANopen. These protocols enable flexible connectivity across industrial automation platforms, supporting various network topologies and high-speed data transmission for comprehensive industrial control and monitoring applications.
What accessories are available for Hammond Power products?
Hammond Power offers a comprehensive range of accessories for industrial electrical components, including HME Series handles with key locking and padlocking options, door stop kits, light kit mounting brackets, and standard hardware like mounting screws and washers. These accessories are designed to enhance functionality and installation flexibility across their product lines.
How are Hammond Power products typically installed?
Hammond Power transformers are typically chassis-mounted using precise mounting hole centers and dimensions specific to each product series. Installation involves selecting the appropriate primary voltage configuration, securing the transformer to a mounting surface using the specified mounting holes, and connecting terminals according to the product's schematic. Most Hammond Power transformers feature multiple terminal options like solder or quick-connect terminals, allowing flexible and straightforward installation in industrial control and power distribution applications.
