Hammond Power FG4 - Control Transformer Accessories - Optional Fused Finger Guard Kits, 250 VA For MBMH, MGJ, MLI Suffixes, 350, 500 VA For All Suffixes, 750 VA For AJ, AR, MQMJ, QR, SP, PP Suffixes
Hammond Power

FG4

UPC: 803423077839

Documents & Media
BrochureTechnical DrawingSpecification Sheet

Contact for Pricing

Overview

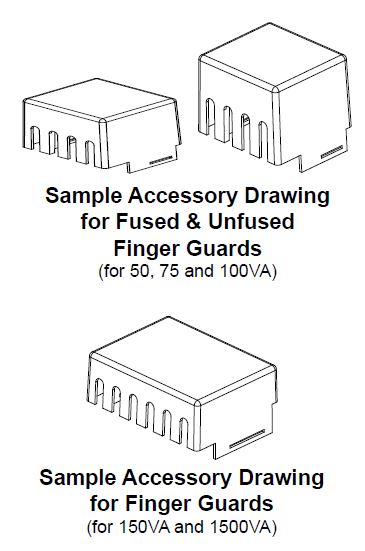

Enhance safety and functionality with the Hammond Power FG4 Fused Finger Guard Kit (SKU: FG4). This essential accessory is designed for HPS control transformers, offering crucial protection against accidental contact with live components. The FG4 is specifically compatible with MBMH, MGJ, and MLI suffix transformers rated at 250 VA. For 350 VA and 500 VA models across all suffixes, the FG4 also provides the necessary finger guard. Additionally, it is suitable for 750 VA transformers with AJ, AR, MQMJ, QR, SP, and PP suffixes. Each finger guard kit includes one finger guard and the PHAK1 instruction sheet, ensuring straightforward installation. When installed, the finger guard adds approximately 0.38 inches to the overall depth of transformers from 50 VA to 500 VA, and 0.31 inches for units from 750 VA to 2000 VA. This accessory is vital for maintaining compliance with safety standards in industrial environments, reducing electrical hazards, and ensuring the longevity of your control transformer installations. The fused finger guard design offers an additional layer of safety by incorporating fuse protection, further safeguarding sensitive circuitry. Ensure proper fitment by consulting the compatibility chart for your specific transformer model and VA rating. The FG4 is a direct replacement or addition for enhancing existing HPS control transformer setups, providing peace of mind and operational reliability.
  • Fused finger guard for enhanced electrical safety.
  • Compatible with Hammond Power control transformers.
  • Supports 250 VA (MBMH, MGJ, MLI suffixes).
  • Supports 350 VA & 500 VA (all suffixes).
  • Supports 750 VA (AJ, AR, MQMJ, QR, SP, PP suffixes).

Specifications

Application
Add finger safe covers and terminal blocks options.
Color
Clear
Connection
Snap On
Material
Plastic
Special Features
Add fingersafe covers or terminal blocks
Standard
Not Applicable
Type
Accessories > Finger Guards
Voltage Rating
Not Applicable
Wattage
Not Applicable
Package Dimensions (L x W x H)
2 IN x 2.5 IN x 1.5 IN
Package Dimensions (L x W x H)
5.08 cm x 6.35 cm x 3.81 cm
Package Weight (Imperial)
0.100 L
Package Weight (Metric)
0.045 kg
