Hammond Power CRX1000EE - Reactor, Three Phase, 1000 Horsepower, 5% Impedance, 1000 Amperes, Copper Windings, 60 Hertz, Enclosed.
Hammond Power

CRX1000EE

UPC: 803423139391

Contact for Pricing

Overview

The Hammond Power CRX1000EE is a robust 3-phase reactor designed for demanding industrial applications. Engineered with premium copper windings, this 1000 horsepower unit features a 5% impedance rating and a substantial 1000 Ampere current capacity, operating efficiently at 60 Hertz. The CRX1000EE is housed in a Type 1 enclosure, providing reliable protection in indoor environments. This reactor is crucial for smoothing current waveforms in AC circuits, thereby enhancing the operational efficiency of connected equipment and potentially reducing energy consumption and overall operational costs. Its design adheres to stringent industry standards, including UL 508, CSA C22.2 No. 47, and CE Mark (IEC 61558-2-20:2000), ensuring safety and compliance. The HPS Centurion™ R reactor series, to which the CRX1000EE belongs, offers an optimized blend of performance and reliability with a reduced product footprint. Key specifications include a 70ºC rise over a 50°C ambient temperature for its insulation system, rated for 130ºC Temperature Class, and a 10-year limited warranty. Manufactured in the USA, the CRX1000EE is a dependable choice for power quality improvement in various industrial settings. Its dimensions are 33.50 inches in height, 23.00 inches in width, and 31.20 inches in depth, with mounting dimensions of 32.50 inches by 9.00 inches. The overall weight is 491 lbs. This reactor is UL Listed (up to 600 V) and CSA Certified, underscoring its quality and safety.
  • The efficient and cost effective HPS Centurion™ R reactors are built to address both line-side and load-side issues associated with demanding AC drive applications.
  • HPS Centurion™ R reactors deliver protection for your motors and drives.
  • They are available in standard ratings from 0.5 HP (373 Watts) to 1000 HP (745 kilowatts), up to 600 V (690 V with de-rating) and are fully compliant with UL, CSA, CE, IEC, and NEMA standards.
  • 60 Hertz Operating Frequency
  • Type 1 Enclosure for Indoor Use
  • Copper Windings for Enhanced Conductivity
  • UL 508, CSA C22.2 No. 47, CE Mark Certified
  • Manufactured in the USA

Specifications

Package Dimensions (L x W x H)
23 IN x 33.5 IN x 31.2 IN
Package Dimensions (L x W x H)
585 mm x 851 mm x 793 mm
Package Weight (Imperial)
491.000 L
Package Weight (Metric)
223.000 kg
600V Class Iron Core Reactor, Core and Coil, 11 Amps, 2.57 Inductance, 60 Hz

CRX0011AC

600V Class Iron Core Reactor, Core and Coil, 11 Amps, 2.57 Inductance, 60 Hz
600V Class Iron Core Reactor, Core and Coil, 273 Amps, 0.04 Inductance, 60 Hz, 3 PCT Impedance at 240 Volt

CRX0273AC

600V Class Iron Core Reactor, Core and Coil, 273 Amps, 0.04 Inductance, 60 Hz, 3 PCT Impedance at 240 Volt
600V Class Iron Core Reactor, Enclosed, 9 Amps, 5.09 Inductance, 60 Hz

CRX0009BE

600V Class Iron Core Reactor, Enclosed, 9 Amps, 5.09 Inductance, 60 Hz
600V Class Iron Core Reactor, Core and Coil, 24 Amps, 0.86 Inductance, 60 Hz

CRX0024DC

600V Class Iron Core Reactor, Core and Coil, 24 Amps, 0.86 Inductance, 60 Hz
600V Class Iron Core Reactor, Core and Coil, 11 Amps, 4.28 Inductance, 60 Hz

CRX0011DC

600V Class Iron Core Reactor, Core and Coil, 11 Amps, 4.28 Inductance, 60 Hz
600V Class Iron Core Reactor, Core and Coil, 3.4 Amps, 10.61 Inductance, 60 Hz

CRX03D4BC

600V Class Iron Core Reactor, Core and Coil, 3.4 Amps, 10.61 Inductance, 60 Hz
600V Class Iron Core Reactor, Enclosed, 1.8 Amps, 27.20 Inductance, 60 Hz

CRX01D8BE

600V Class Iron Core Reactor, Enclosed, 1.8 Amps, 27.20 Inductance, 60 Hz
Reactor, Three Phase, 700 Horsepower, 5% Impedance, 700 Amperes, Copper Windings, 60 Hertz

CRX0700EC

Reactor, Three Phase, 700 Horsepower, 5% Impedance, 700 Amperes, Copper Windings, 60 Hertz
600V Class Iron Core Reactor, Core and Coil, 59 Amps, 0.22 Inductance, 60 Hz

CRX0059BC

600V Class Iron Core Reactor, Core and Coil, 59 Amps, 0.22 Inductance, 60 Hz
600V Class Iron Core Reactor, Core and Coil, 170 Amps, 0.10 Inductance, 60 Hz, 5 PCT Impedance at 240 Volt

CRX0170CC

600V Class Iron Core Reactor, Core and Coil, 170 Amps, 0.10 Inductance, 60 Hz, 5 PCT Impedance at 240 Volt

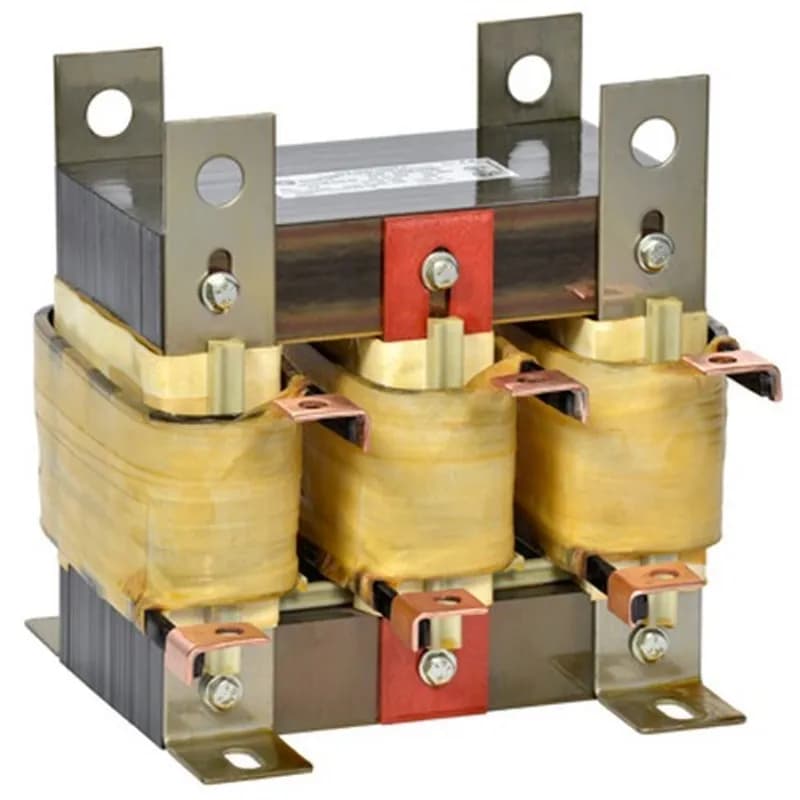

600V Class Iron Core Reactor, Core and Coil, 396 Amps, 0.04 Inductance, 60 Hz, 5 PCT Impedance at 208 Volt
