Hammond Power CRX04D8PC - Reactors, 4.8 Amperes, 7.8 Millihenries Inductance, 50 Hertz, Copper Windings, Core and Coil.
Hammond Power

CRX04D8PC

UPC: 803423150143

Contact for Pricing

Overview

The Hammond Power CRX04D8PC is an open core and coil reactor designed for DC power supply filtering applications. This unit features copper windings for efficient operation and a 4.8 Amp RMS current rating. With an inductance of 7.8 millihenries at 50 Hertz, it effectively smooths DC current in power supply circuits. The CRX04D8PC utilizes an open enclosure style, facilitating heat dissipation and ease of access for wiring. Mounting is supported by a 4-slot bracket, offering flexibility in industrial installations. The dimensions for this model are 4.13 inches in width, 5.13 inches in height, and 2.29 inches in depth, with a weight of 3.00 lbs. Connections are made via screw terminals or heavy copper tabs with holes, suitable for high-current environments. Manufactured in the USA by Hammond Power, this reactor is built for reliable performance in motor drives, industrial automation, and general power supply filtering. The 50Hz rating ensures compatibility with global power grids. The CRX04D8PC is part of Hammond Power's CRX reactor family, known for their robust construction and dependable performance.
  • The efficient and cost effective HPS Centurion™ R reactors are built to address both line-side and load-side issues associated with demanding AC drive applications.
  • HPS Centurion™ R reactors deliver protection for your motors and drives.
  • They are available in standard ratings from 0.5 HP (373 Watts) to 1000 HP (745 kilowatts), up to 600 V (690 V with de-rating) and are fully compliant with UL, CSA, CE, IEC, and NEMA standards.
  • Open enclosure style for heat dissipation
  • 4-slot bracket mounting for flexible installation
  • 15% tolerance on inductance and resistance
  • Screw terminal or heavy copper tab connections
  • Manufactured in the USA

Specifications

Package Dimensions (L x W x H)
3.51 IN x 4.13 IN x 5.13 IN
Package Dimensions (L x W x H)
90 mm x 105 mm x 131 mm
Package Weight (Imperial)
5.000 L
Package Weight (Metric)
2.300 kg
600V Class Iron Core Reactor, Core and Coil, 11 Amps, 2.57 Inductance, 60 Hz

CRX0011AC

600V Class Iron Core Reactor, Core and Coil, 11 Amps, 2.57 Inductance, 60 Hz

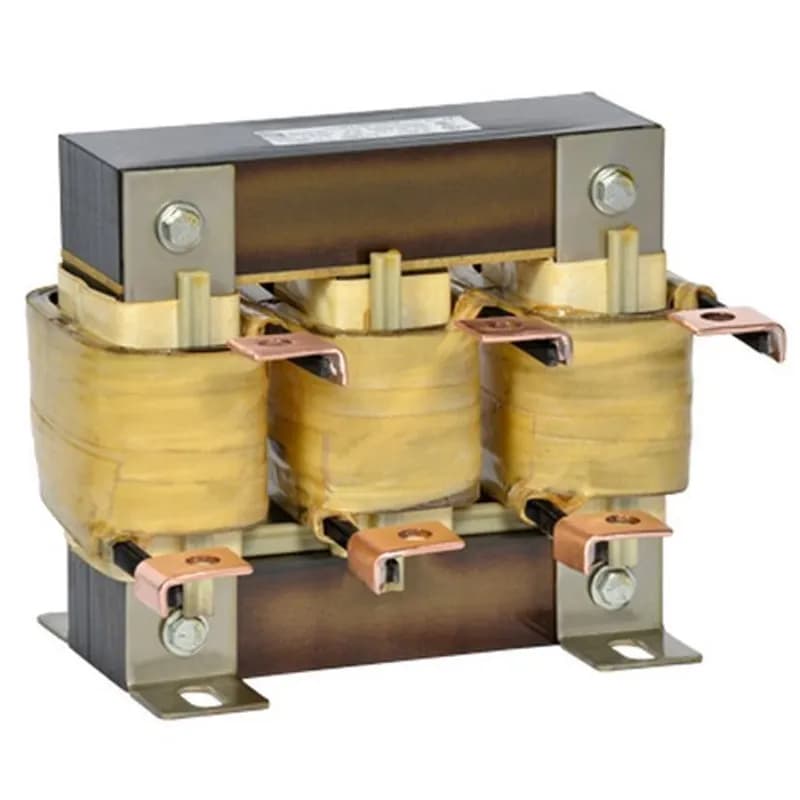

600V Class Iron Core Reactor, Core and Coil, 273 Amps, 0.04 Inductance, 60 Hz, 3 PCT Impedance at 240 Volt
