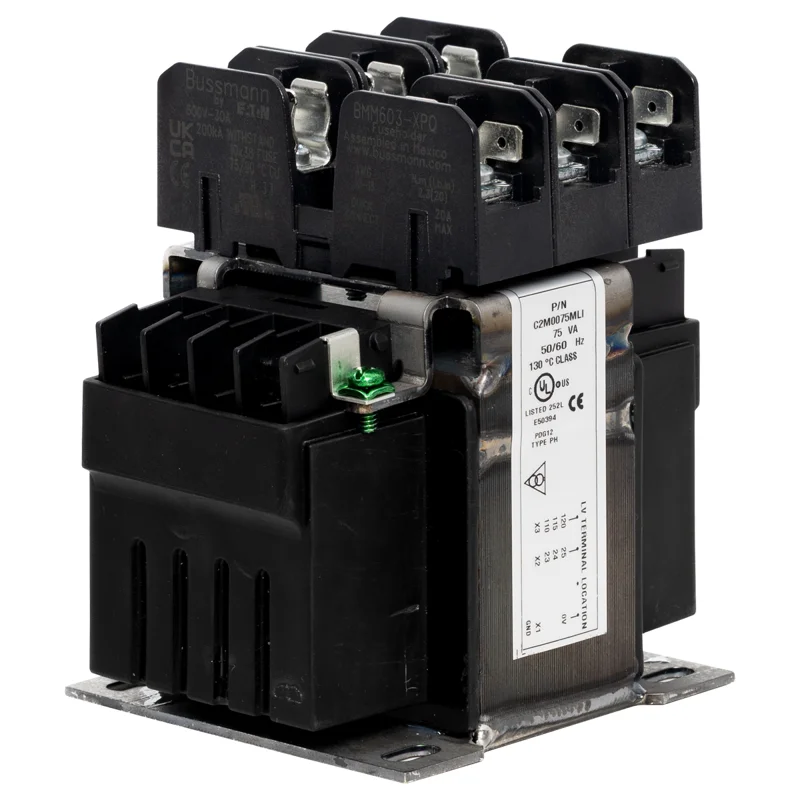

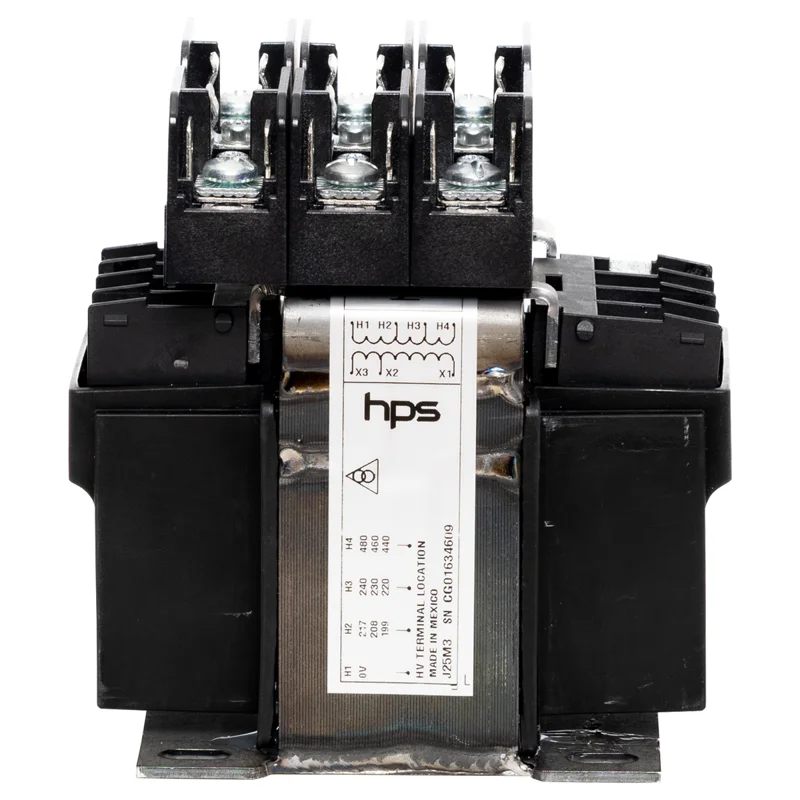

Hammond Power C2M0075MQMJ HPS Molded Style Control Transformer, 75VA 240x480V-120x240V 50/60Hz
UPC: 803423216177
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- High inrush and continuous operation design handles relays, solenoids, contactors, and timers.
- Copper-wound coils, durable insulation, and silicon steel laminations deliver stable, consistent voltage and long life.
- Welded core and base construction ensure mechanical strength and easy installation.
- Vacuum-impregnated coils improve thermal performance and protection.
- Suitable for high inrush applications
Specifications
Capacity | 75VA |
Enclosure Type | Molded |
Frequency | 50/60 Hz |
Height | 2.862205 in |
Length | 4.200787 in |
Mounting Style | Panel |
Primary Voltage | 240x480 V |
Product Type | Control Transformer |
Secondary Voltage | 120X240 V |
Temperature Rating | 130°C |
Transformer Rating | 75 VA |
Transformer Type | Control |
Weight | 2.095961 lb |
Width | 2.992126 in |
Winding | Copper |
Package Dimensions (L x W x H) | 6.0625 in x 6.0625 in x 3.25 in |
Package Dimensions (L x W x H) | 15.3988 cm x 15.3988 cm x 8.255 cm |
Package Weight (Imperial) | 2.7573 L |
Package Weight (Metric) | 1250.7112 g |
Frequently Asked Questions
What are the three styles of control transformers offered?
HPS offers Molded Style, Open Style, and General Purpose Enclosed styles to suit different environments and installation types.
What are the primary and secondary voltages for C2M0075MQMJ?
The C2M0075MQMJ has a primary voltage of 240 X 480 and a secondary voltage of 120 X 240.
Which transformer style is best for high inrush applications?
The Molded Style transformer is best suited for high inrush applications like relays, solenoids, and magnetic starters.
What is the maximum VA rating for the C2M0075MQMJ model?
The C2M0075MQMJ model has a maximum VA rating of 75 VA.
What is the warranty for molded style control transformers?
Molded style control transformers come with an industry-leading lifetime warranty.
What is the warranty for open and enclosed style transformers?
Open style and general purpose enclosed style control transformers have a 15-year warranty.
How do HPS transformers simplify grounding?
HPS transformers feature a patent-pending single-point grounding system for safe, code-compliant connections and reduced installation time.
Can HPS transformers handle high inrush and continuous operation?
Yes, they are designed for high inrush and continuous operation, handling relays, solenoids, contactors, and timers.
Are HPS control transformers certified for safety standards?
Yes, they meet top industry safety standards with CSA certification, UL listing, and NEMA construction standards.
What materials are used for the coils in HPS transformers?
HPS transformers use copper-wound coils with durable insulation and silicon steel laminations for stable voltage and long life.
