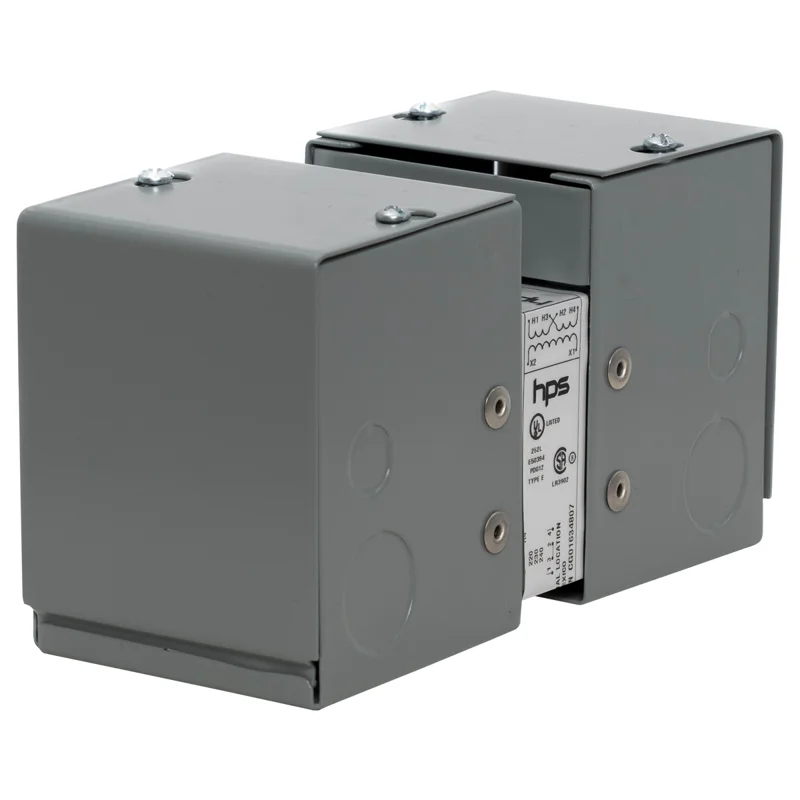

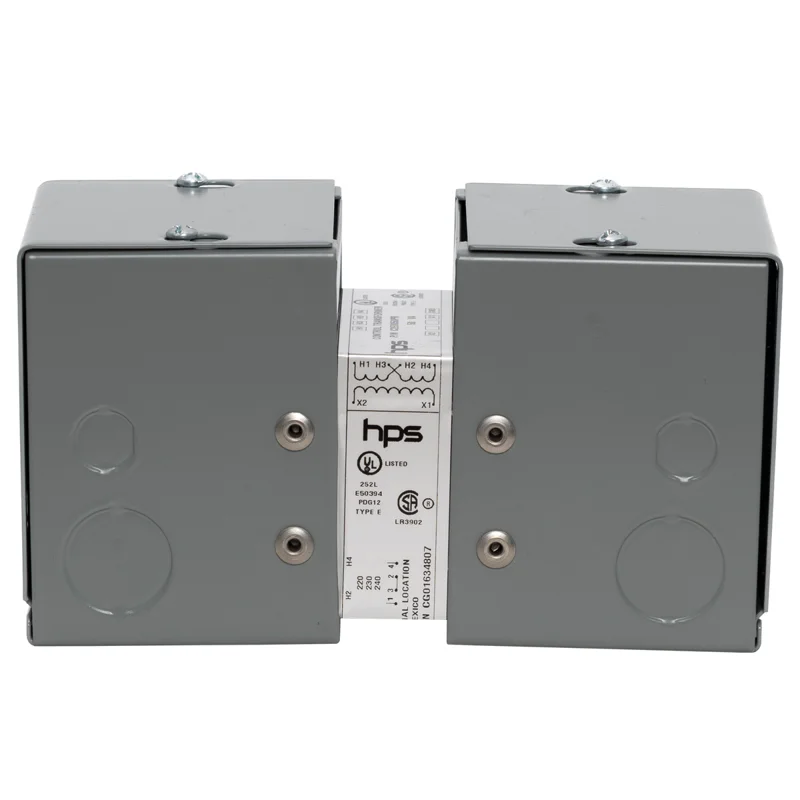

Hammond Power C2E0150AR - HPS Enclosed Control Transformer, 150VA 600V-24V 60Hz
Hammond Power

C2E0150AR

UPC: 803423213022

Contact for Pricing

Overview

The Hammond Power HPS Enclosed Control Transformer, SKU C2E0150AR, is a ready-to-install solution designed for light-duty industrial and commercial applications. This transformer efficiently converts 600V input to 24V output, operating at a standard 60Hz frequency. Its robust metal enclosure provides essential protection for the internal components, ensuring reliable performance in various operational settings. The 150VA rating makes it suitable for powering control circuits, relays, solenoids, and other low-power devices commonly found in automation systems, building controls, and machinery. Engineered for straightforward installation, this unit simplifies integration into existing electrical panels and control cabinets. The Hammond Power C2E0150AR is manufactured in the USA, adhering to quality standards for dependable power conversion. Its compact design and enclosed nature contribute to a safe and organized electrical installation, minimizing exposure and potential hazards. This transformer is an ideal choice when a stable and isolated 24V control voltage is required from a higher primary voltage source, offering a practical and durable power management component for essential control functions.
  • High inrush and continuous operation design handles relays, solenoids, contactors, and timers.
  • Copper-wound coils, durable insulation, and silicon steel laminations deliver stable, consistent voltage and long life.
  • Welded core and base construction ensure mechanical strength and easy installation.
  • Vacuum-impregnated coils improve thermal performance and protection.
  • Ready-to-install design for easy integration

Specifications

Capacity
150VA
Enclosure Type
NEMA Type 1
Frequency
60 Hz
Height
3.704724 in
Length
6.452756 in
Material
Metal
Mounting Style
Panel
Mounting Type
Enclosed
Primary Voltage
600 V
Product Type
Control Transformer
Secondary Voltage
24 V
Series
HPS
Temperature Rating
130°C
Transformer Rating
150 VA
Transformer Type
Control
Voltage Rating
600V-24V
Weight
3.405023 lb
Width
3.094488 in
Winding
Copper
Package Dimensions (L x W x H)
12.6875 in x 10.75 in x 8 in
Package Dimensions (L x W x H)
32.2263 cm x 27.305 cm x 20.32 cm
Package Weight (Imperial)
4.0664 L
Package Weight (Metric)
1844.4913 g
