Overview

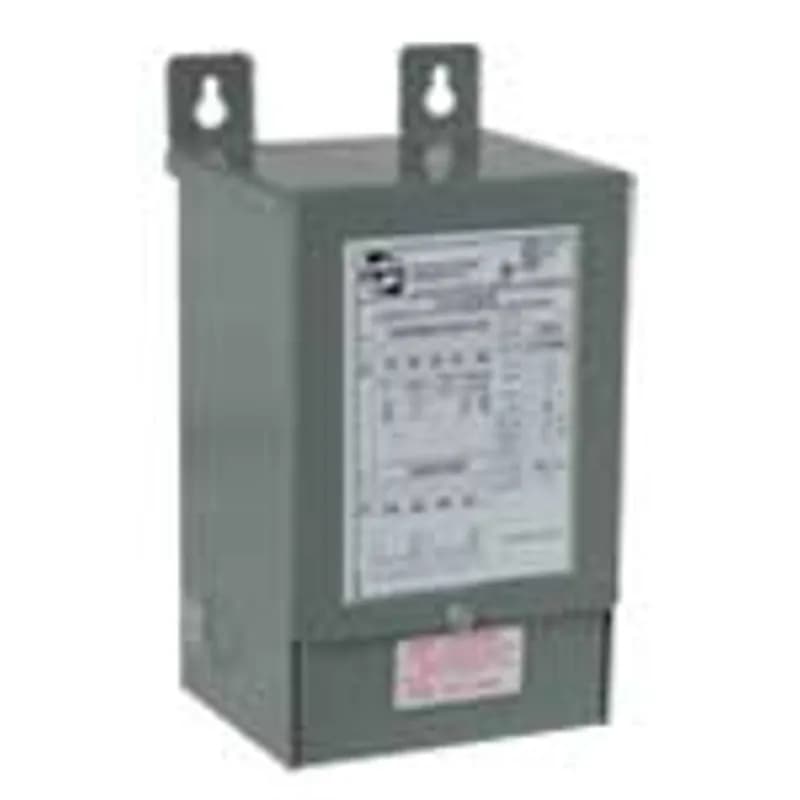

- 15 kVA single-phase distribution transformer
- 600V primary, 120/240V secondary voltage rating
- Potted construction for environmental protection
- 2-pole design for commercial applications
- UL-listed components for safety and reliability
Specifications
Application | Shopping centers, schools, sports complexes, commercial, lighting, wastewater and light industrial loads. |
Connection Type | Screw Terminal |
Connection Type | 120/240VAC |
Current Rating | 15 kVA |
Enclosure | NQ7-N3R - Indoor or Outdoor |
Frequency | 60 Hz |
Frequency Rating | 60 HZ |
Height | 21.38 in |
Input Voltage | 600 V |
Length | 10.75 in |
Material | Potted |
Mounting | Wall mount |
Mounting Type | Indoor |
Output Voltage | 120/240 V |
Phase | Single Phase |
Poles | 2 |
Series | C1F |
Special Features | Innovative potted design provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications |
Standard | CSA, UL |
Type | Transformer > Distribution > Potted > Commercial > Single Phase |
Voltage Rating | 600 VAC / 120/240 VAC |
Voltage Rating | 600 VAC |
Wattage | 15 KVA |
Width | 14.5 in |
Winding | Aluminum Wound |
Package Dimensions (L x W x H) | 14.5 IN x 10.75 IN x 21.38 IN |
Package Dimensions (L x W x H) | 36.83 cm x 27.305 cm x 54.3052 cm |
Package Weight (Imperial) | 286.000 L |
Package Weight (Metric) | 129.730 kg |
