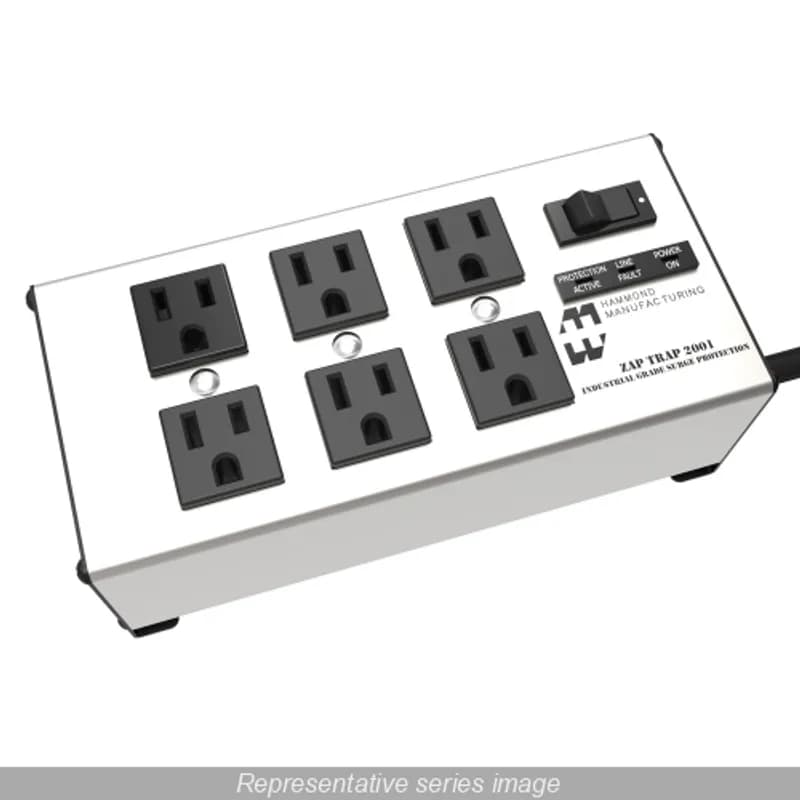

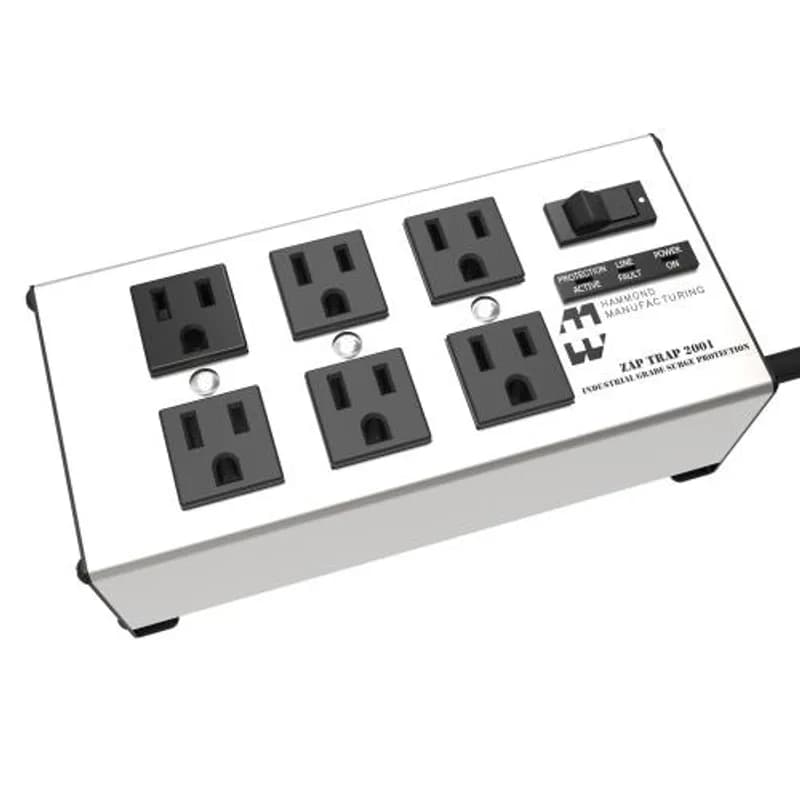

Overview
- 8 AC outlets with telco protection
- Five stages of protection including 2,000 joule rating
- Diagnostic monitoring with 3 LEDs, including fault indicator
- Rugged aluminum housing with 15 amp breaker and reset
- 80 db EMI/RFI noise attenuation
Specifications
Brand Name | Hammond Mfg. |
Series | ZAP TRAP |
Series | ZT2001-8 |
Sub Brand | ZT Series |
Package Dimensions (L x W x H) | 1 IN x 1 IN x 1 IN |
Package Dimensions (L x W x H) | 2.54 cm x 2.54 cm x 2.54 cm |
Package Weight (Imperial) | 4.000 L |
Package Weight (Metric) | 1.814 kg |
Frequently Asked Questions
What surge protection is provided by the ZT2001-8?
It offers a minimum of 2,000 joules of protection with a self-healing gas discharge tube. It also has crowbar primary protection up to 30,000 amps.
What is the maximum transient current handled by this surge block?
The ZT2001-8 can handle a maximum transient current of 24,000 amps.
What is the response time for surge suppression?
The surge suppression response time is less than 1 nanosecond.
What type of cord and plug does the ZT2001-8 use?
It features a heavy-duty 14 gauge wire cord, 14/3 SJT type, with an integral molded plug.
What are the dimensions of the ZT2001-8 surge block?
The ZT2001-8 has overall dimensions of 2.50 inches in height, 3.50 inches in width, and 8.90 inches in length.
How many AC receptacles does the ZT2001-8 have?
The ZT2001-8 model comes with 8 AC receptacles.
What is the EMI/RFI noise attenuation for this surge block?
The ZT2001-8 provides a minimum EMI/RFI noise attenuation of 80 db.
What certifications does the ZT2001-8 have?
It is CSA certified according to Standards C22.2 (No. 21-95, No. 42-99 and No. 8-M1986).
What is the amperage rating of the breaker on the ZT2001-8?
The ZT2001-8 features a 15 amp breaker with a reset function.
Does the ZT2001-8 offer telco protection?
Yes, the ZT2001-8 is available with a long-life superior telco-protection circuit.
