Overview
- 125A current rating for heavy-duty electrical distribution
- Compatible with Hammond CST series splitter troughs (up to 600A service)
- Constructed from 16 gauge steel (14 gauge for 8"+ troughs), spot-welded
- ANSI 61 gray powder-coated finish, recoatable for durability
- CSA certified and meets IEC 60529 IP20 standards
Specifications
Brand Name | Hammond Mfg. |
Color | Gray |
Current Rating | 125 A |
IP Rating | IP20 |
Material | Steel |
Sub Brand | CSBL Series |
Package Dimensions (L x W x H) | 1 IN x 1 IN x 1 IN |
Package Dimensions (L x W x H) | 2.54 cm x 2.54 cm x 2.54 cm |
Package Weight (Imperial) | 1.000 L |
Package Weight (Metric) | 0.454 kg |

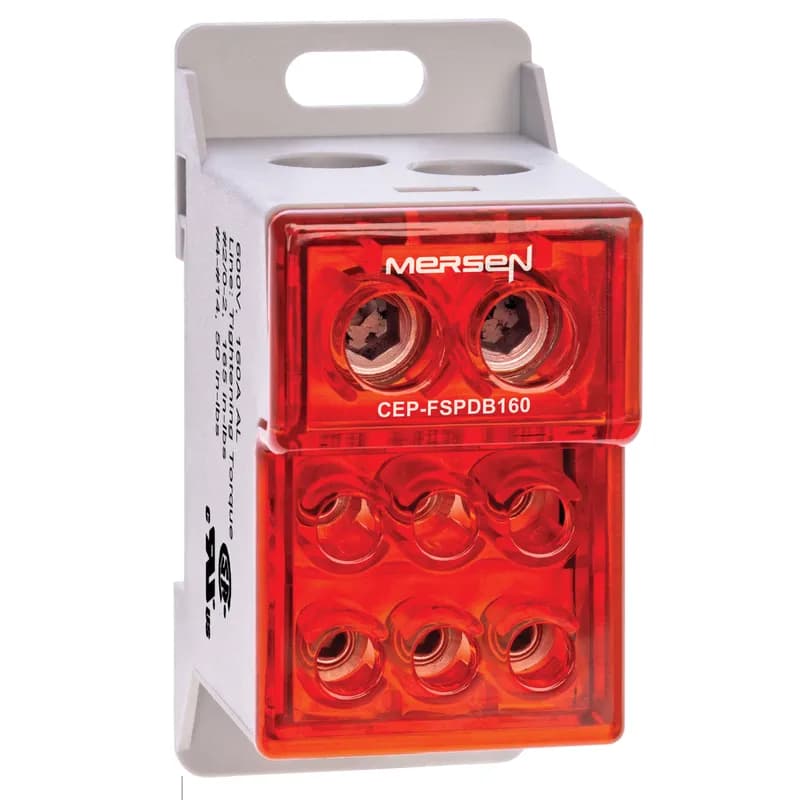

CEP-FSPDB160
Compact PDB 600V 135A - 160A Tin-plated Aluminum 1-Pole 2 - 3 + 3 openings; 2/0-#10 --- #6-#14 + #4-#14
NPDB-16-500-1
100kA Short Circuit Current Rated Power Distribution Block. 1 x 500 MCM-4 AWG Line, 6 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
Frequently Asked Questions
What is the maximum voltage rating for CSBL Series splitter blocks?
All CSBL Series splitter blocks are rated for 600 V.
What is the conductor ampacity permitted for these splitter blocks?
The permitted conductor ampacity is 75° C.
What type of conductors can be used with the CSBL Series blocks?
The main and branch lugs can use either copper or aluminum conductors.
What is the main lug ampacity for the CSBL125T model?
The CSBL125T model has a main lug ampacity of 125.
What is the wire capacity for the main lug on the CSBL125T?
The main lug on the CSBL125T can accommodate wire sizes from 1/0 to 14.
How many branch lugs does the CSBL125T have and what is their ampacity?
The CSBL125T has 6 branch lugs, each with an ampacity of 70.
What is the wire capacity for the branch lugs on the CSBL125T?
The branch lugs on the CSBL125T can accommodate wire sizes from 2 to 14.
What are CSBL Series splitter blocks used for?
These blocks are used in Hammond standard splitter troughs and boxes.
What are the CSBL Series connectors made of?
The Cu-Al monopiece connectors are secured to insulators.
