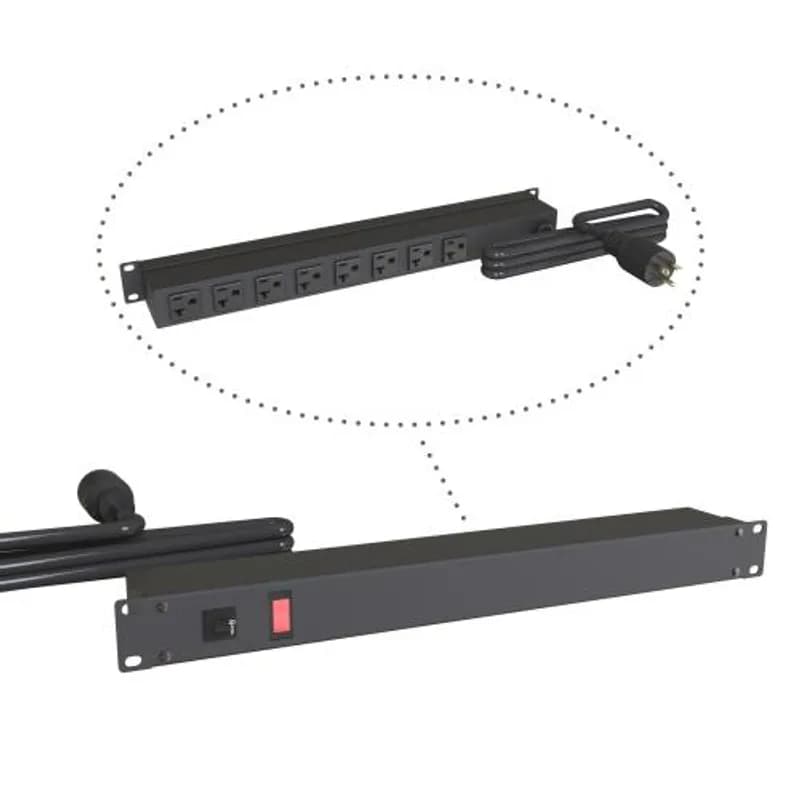

Hammond Manufacturing 1589H8G1BKRR - 20A RACKMOUT, 8 REC ON REAR

Hammond Manufacturing 1589H8G1BKRR 20A RACKMOUT, 8 REC ON REAR

UPC: 623980017648


Documents & Media
Technical DrawingSpecification SheetWarranty

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Hammond Manufacturing 1589H8G1BKRR is a 20A rackmount power distribution unit. This unit features eight receptacles located on the rear panel, designed for organized power delivery to rack-mounted equipment. With a 20-ampere current rating, it is suitable for applications requiring substantial power. The black finish provides a professional aesthetic for integration into rack systems. Manufactured by Hammond Manufacturing, this power unit is categorized as a rackmount power distribution unit.
  • 20A rackmount power distribution unit
  • Eight rear receptacles for equipment power
  • Black finish for professional integration
  • Designed for rack-mounted applications
  • Manufactured by Hammond Manufacturing

Specifications

Brand Name
Hammond Mfg.
Color
Black
Current Rating
20 A
Material
Metal
Mounting Type
Rackmount
Series
1589
Sub Brand
1589-RF-RR Series
Package Dimensions (L x W x H)
1 IN x 1 IN x 1 IN
Package Dimensions (L x W x H)
2.54 cm x 2.54 cm x 2.54 cm
Package Weight (Imperial)
4.000 L
Package Weight (Metric)
1.814 kg
20A RACK MOUNT, 8 REC ON FRONT

1589H8C1BKRF

20A RACK MOUNT, 8 REC ON FRONT
48" VERTICAL STRIP, BLACK

1585T8A1BK

48" VERTICAL STRIP, BLACK
48" VERTICAL STRIP, BLACK

1585T8B1BK

48" VERTICAL STRIP, BLACK
60" VERTICAL STRIP, BLACK

1586T12B1BK

60" VERTICAL STRIP, BLACK
1582T6B1BK WITH AMMETER

1582T6B1BKAM

1582T6B1BK WITH AMMETER
1582T6A1BK WITH AMMETER

1582T6A1BKAM

1582T6A1BK WITH AMMETER
48" VERTICAL STRIP, BLACK

1585H8A1BK

48" VERTICAL STRIP, BLACK
48" VERTICAL STRIP, BLACK

1585H8B1BK

48" VERTICAL STRIP, BLACK

Frequently Asked Questions

What is the cord length for the 1589H8G1BKRR PDU?

The 1589H8G1BKRR PDU has a cord length of 15 ft.

What are the operating temperature limits for this PDU?

The operating temperature range for this PDU is from -20 degrees C to +60 degrees C.

What type of outlets does the 1589H8G1BKRR PDU have?

The 1589H8G1BKRR PDU has 8 NEMA 5-20R outlets.

What is the plug type for the 1589H8G1BKRR PDU?

The 1589H8G1BKRR PDU comes with a NEMA 5-20P straight blade plug.

What is the voltage and amperage rating for the outlets?

The heavy-duty black receptacles are rated for 20A, 125VAC service.

Does this PDU have surge protection?

The 1589H8G1BKRR model does not include surge protection.

What are the dimensions of this rackmount PDU?

The PDU has a height of 1.72 inches, a width of 19.00 inches, and a depth of 2.66 inches.

What certifications does this PDU meet?

This PDU is UL/cUL recognized under Standard UL1363 and CSA C22.2 No. 308-14.
