Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

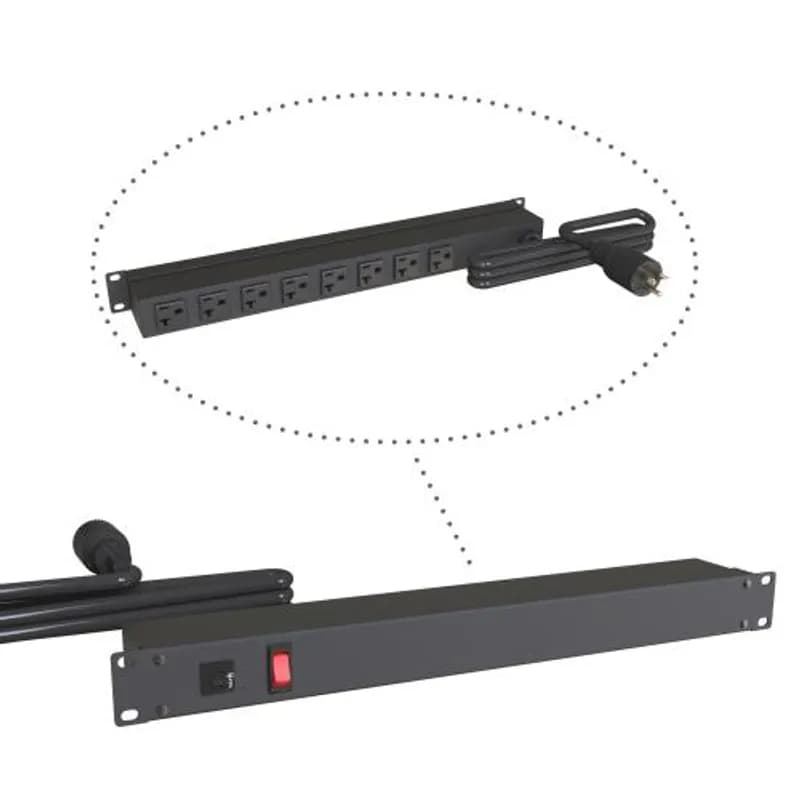

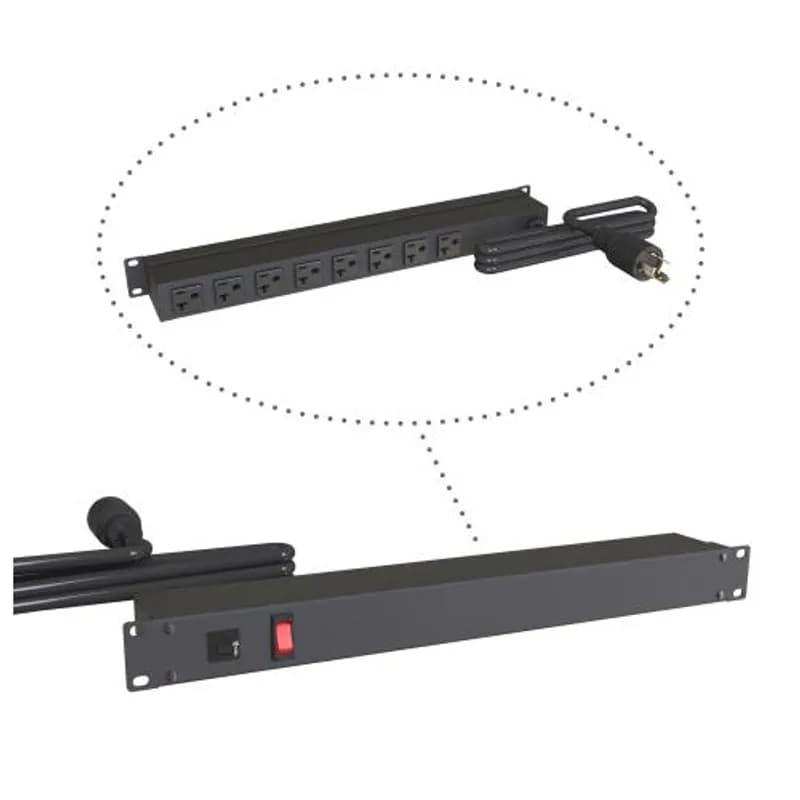

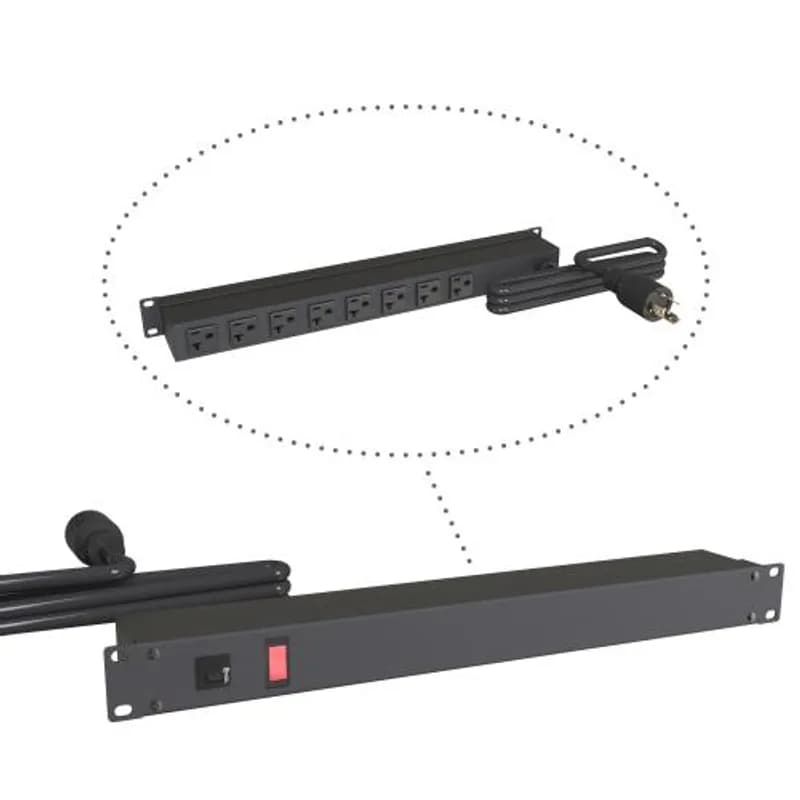

Overview
- 20A current rating for high-power applications
- 8 receptacles on rear panel for organized wiring
- Rack mount design for standard 19-inch enclosures
- US-made by Hammond Manufacturing for reliability
- Durable construction for industrial environments
Specifications
Brand Name | Hammond Mfg. |
Color | Black |
Current Rating | 20 A |
Mounting Type | Rack Mount |
Series | 1589 Series |
Sub Brand | 1589-RF-RR Series |
Package Dimensions (L x W x H) | 1 IN x 1 IN x 1 IN |
Package Dimensions (L x W x H) | 2.54 cm x 2.54 cm x 2.54 cm |
Package Weight (Imperial) | 4.000 L |
Package Weight (Metric) | 1.814 kg |
Frequently Asked Questions
What are the operating temperature limits for this PDU?
The operating temperature range for this PDU is from -20 degrees C to +60 degrees C.
What are the specifications for the receptacles on this PDU?
The receptacles are heavy-duty black, rated for 20A, 125VAC service, and are NEMA 5-20R Single T-Slot type.
What plug types are available for this PDU?
Plug types available are NEMA 5-20P straight blade or NEMA L5-20P locking type.
Does this PDU have a circuit breaker for overload protection?
Yes, it includes a 20 Amp, 125 VAC circuit breaker to prevent accidental overload.
Where is this PDU manufactured?
This PDU is manufactured in North America.
What is the rack unit size of this PDU?
This is a 1U horizontal rackmount PDU.
Can this PDU be installed in the front or rear of a rack?
Yes, it is designed for power distribution from the front or rear of the unit.
What type of wire cord is used and what are its characteristics?
It uses a heavy-duty 12 gauge wire cord, specifically 12/3 SJT type, designed for extreme temperature ranges.
What are the recognized standards for this PDU?
It is UL/cUL recognized under Standard UL1363 and CSA C22.2 No. 308-14.
Is this PDU compliant with TAA for GSA Schedule purchases?
Yes, the PDU is TAA-compliant for GSA Schedule purchases.
