Overview

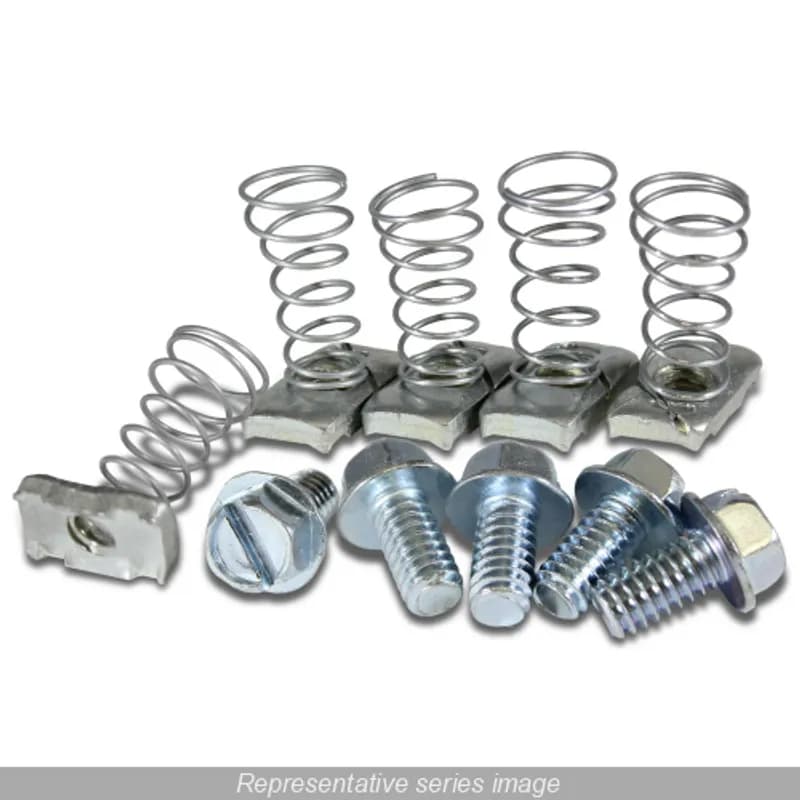

- Includes 3 spring nuts and 3 bolts
- Designed for industrial fastening applications
- Provides secure connections
- Accommodates slight misalignments
- Manufactured in the US by Hammond Manufacturing
Specifications
Brand Name | Hammond Mfg. |
Material | Steel |
Series | 1463 |
Sub Brand | 1463S Series |
Package Dimensions (L x W x H) | 1 IN x 1 IN x 1 IN |
Package Dimensions (L x W x H) | 2.54 cm x 2.54 cm x 2.54 cm |
Package Weight (Imperial) | 0.350 L |
Package Weight (Metric) | 0.159 kg |
A1001/4-G
PVC Coated Gray 1/4 Inch Steel Spring Nut with Silvergalvanized Finish for use with 'A' and 'C' Series Channel and Inserts
J1548
Spring Wing Toggle Bolt, Steel material, Zinc Chromate finish, Mushroom-Truss head, 2 in. length, #6-32 Size, 1/8 in. diameter, Right Hand thread, Slotted drive type, 7/16 in. drill size, 50 per pack
A1003/8-G
PVC Coated Gray 3/8 Inch Steel Spring Nut with Silvergalvanized Finish for use with 'A' and 'C' Series Channel and InsertsA1001/2-G
PVC Coated Gray 1/2 Inch Steel Spring Nut with Silvergalvanized Finish for use with 'A' and 'C' Series Channel and Inserts
B1001/4-G
PVC Coated Steel Short Spring Nut, Size 1/4 Inch, for use with B Series Channel and Inserts, 316 Stainless Steel, Gray
B 911 3/8SS
Channel Spring Nut, Size 3/8-16 Inch, Thickness 5/16 Inch, Stainless Steel, for use with 1-1/2 Inch Deep ChannelsFrequently Asked Questions
What hardware is included with the 1463S series?
The 1463S series includes 3 bolts, 3 spring nuts, and 3 washers.
What size are the spring-loaded nuts?
The spring-loaded nuts are 3/8 x 16 size and are spring-loaded for rack cabinet "C" channels.
What size are the hex head bolts and washers?
The hex head bolts and washers are 0.75" in size.
Which cabinet types are compatible with the 1463S series?
The 1463S series is compatible with C2, C2RR, C4, C4RR, H1, DCZ4, and 1564 cabinet types.
Is the 1463S compatible with the RCH Series?

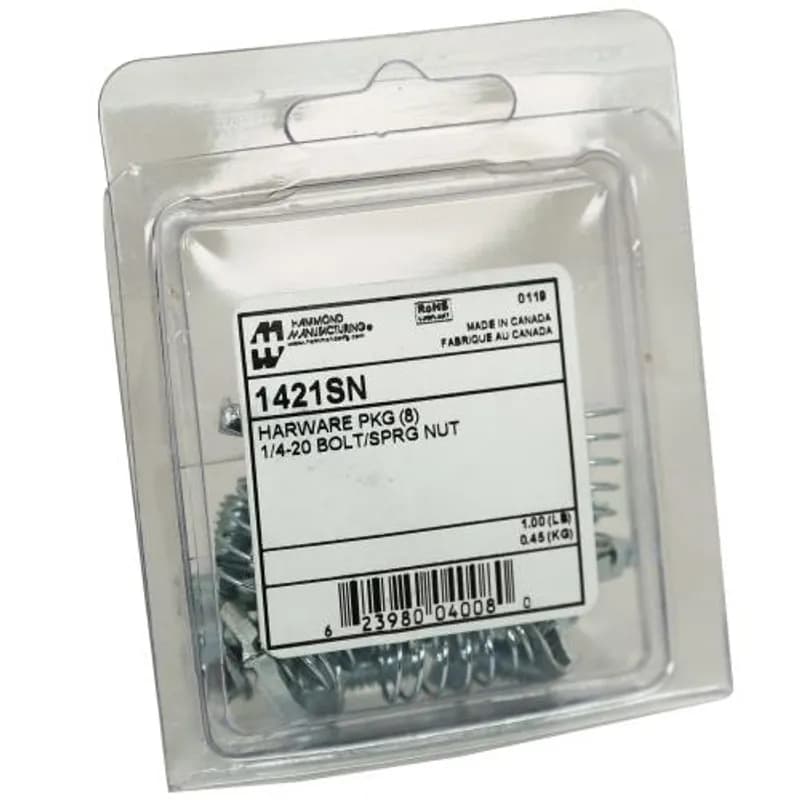

No, the 1463S is not compatible with the RCH Series. The 1421SN should be used instead.
What is the primary use of the 1463S hardware?
This hardware is used to mount rack rail or accessories in racks that utilize strut rail mounting.
Does the 1463S hardware come with panel rails?
No, mounting hardware is included with panel rails, not with the 1463S itself.
