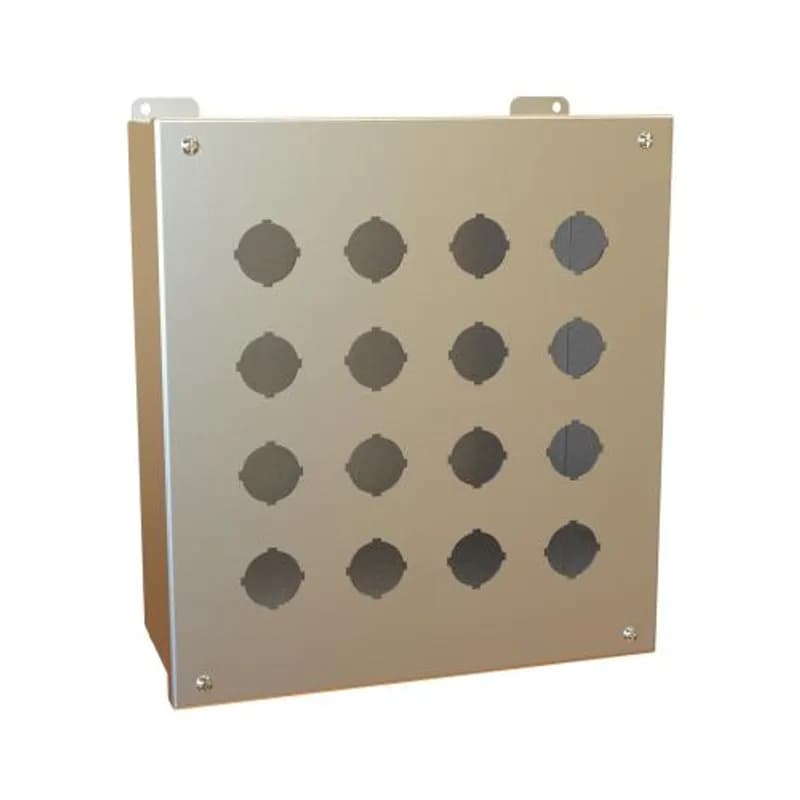

Hammond Manufacturing 1437SSS Pushbutton Encl - Extra Deep - 16 PB x 30.5mm - 304SS
UPC: 623980153896
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 304 stainless steel construction for corrosion resistance in harsh environments
- Extra-deep 30.5mm design accommodates 16 pushbuttons with internal wiring space
- Compact footprint enables high-density control layouts on industrial panels
- Secure mounting for long-term stability in machinery and automation systems
- Manufactured by Hammond Manufacturing for consistent quality and reliability
Specifications
Application | Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights. Provides protection from dirt, dust, oil and water. |
Brand Name | Hammond Mfg. |
Color | Unpainted |
Color | Other |
Cubic Capacity | 599.9844 in3 |
Housing Material | Stainless Steel |
Material | Stainless Steel |
Material | 304 Stainless Steel |
Mounting | Wall |
Mounting Type | Panel Mount |
NEMA Rating | 4X |
NEMA Rating | type-4x |
Series | 1437 |
Size | 11.75 in x 10.75 in x 4.75 in |
Size | 16 PB x 30.5mm depth |
Size | 16 buttons x 30.5mm depth |
Special Features | Formed from 14 gauge steel except A which is 16 gauge. Smooth continuously welded seams. Welded brackets provide for enclosure mounting. Captive cover screws fasten into threaded, sealed wells. Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring (see table). Oil resistant gasket and adhesive. A bonding stud is provided on the door and a grounding stud is provided on the enclosure. |
Standard | csa, ul, ce |
Sub Brand | 1437SS Series |
Type | Type 4, 4X Stainless Steel Pushbutton Enclosures |
Package Dimensions (L x W x H) | 5.23 IN x 11.83 IN x 12.93 IN |
Package Dimensions (L x W x H) | 13.2842 cm x 30.0482 cm x 32.8422 cm |
Package Weight (Imperial) | 3.000 L |
Package Weight (Metric) | 1.361 kg |
SIL16/1
Panel Cutout: � 16.2 mmColor: Black Bottom Part/Yellow CoverMounting Depth: 59 mm Weight: 96 gIllumination: No Labeling Option: No
Frequently Asked Questions
What type of pushbuttons can these enclosures accept?
These enclosures are designed to accept standard heavy duty oil tight pushbuttons, switches, and pilot lights.
What protection do these enclosures offer?
They provide protection from dirt, dust, oil, and water.
What standards do these enclosures comply with?
They comply with UL 508A Type 4 and 4X, CSA Enclosure 4 and 4X, NEMA Type 4 and 4X, and IEC 60529, IP66.
What material are the enclosures made from?
The enclosures are formed from 16 gauge steel.
What kind of gasket is used in these enclosures?
An oil resistant gasket and adhesive are used.
Are there bonding and grounding studs provided?
Yes, a bonding stud is provided on the door and a grounding stud is provided on the enclosure.
What is the finish of the enclosures?
The enclosures have a natural stainless steel finish with a smooth brushed appearance.
What are the dimensions of the 1437SSS enclosure?
The 1437SSS enclosure has dimensions of 11.75 inches in height, 10.75 inches in width, and 4.75 inches in depth.
What is the gauge of the steel used for construction?
The enclosures are constructed from 16 gauge steel.
Are the covers of larger enclosures hinged?
Yes, larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring.
