Contact for Pricing
Overview
- Explosion-proof construction for Class I, II, III hazardous locations
- UL and ULC Fire CID1 certified with NEMA 7/9 compliance
- Two-step activation prevents accidental alarms; reset via shaft depression
- Copper-free cast aluminum alloy enclosure, highly visible red
- Rated 120VAC, 60Hz at 6 amps continuous; 2x 3/4" conduit entries
Specifications
-13 to 104 | DEG F |
6.42 H x 3.1 W x 4.14 D | IN |
Application | Indoor |
Brand Name | Federal Signal |
Color | Red |
Dimensions | 6.42 H x 3.1 W x 4.14 D IN |
Material | Industrial-grade |
Mounting | Wall |
Operating Temperature | -13 to 104 DEG F |
Operating Voltage | 120VAC |
Series | MPEX |
Special Features | Designed For Harsh Environments |
Standard | UL Listed/cUL Listed/CSFM Approved/UL Fire Listed/ULC Fire Listed |
Standard | CSFM,UL,cUL,ULC Fire |
Type | Explosion-Proof Fire Alarm Pull Station |
Package Dimensions (L x W x H) | 7.5 IN x 6 IN x 4 IN |
Package Dimensions (L x W x H) | 19.05 cm x 15.24 cm x 10.16 cm |
Package Weight (Imperial) | 2.700 L |
Package Weight (Metric) | 1.225 kg |
PSCF-R
Push Button Station Cover, "Fire", Red - Latching contact or momentary activation depending on model. Evacuation and Emergency stations available. Quick reset. Cover with alarm discourages tampering. ADA Compliant. UL Listed, cUL Listed and CSFM Approved.Frequently Asked Questions

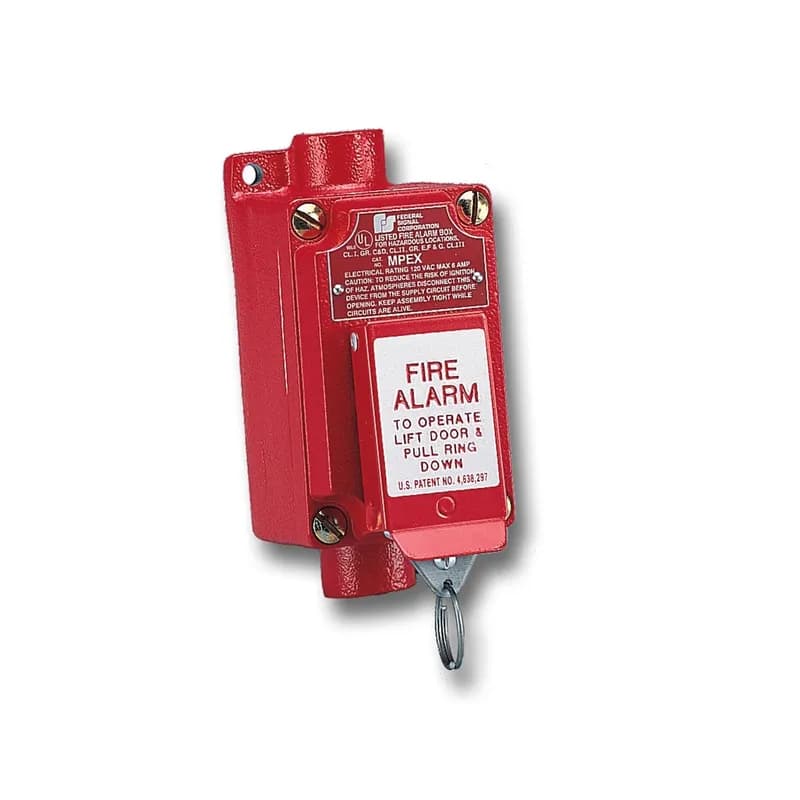

What type of product is the MPEX?
The MPEX is an explosion-proof fire alarm pull station.
What are the electrical contact ratings for MPEX?
The contacts on the MPEX unit are rated for 120VAC, 60Hz at 6 amps continuous.
How is the MPEX fire alarm pull station activated?
To activate the MPEX, lift the cover and pull down the ring.
What conduit entry size does the MPEX have?
The MPEX features two 3/4 in conduit entries.
What color is the MPEX enclosure?
The MPEX enclosure is a highly visible red.
What hazardous locations is MPEX certified for?
MPEX is UL and cUL Listed for Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F and G; and Class III.
What NEMA ratings does MPEX hold?
MPEX has NEMA 7 rating for Groups C and D, and NEMA 9 for Groups E, F and G.
Is the MPEX fire alarm pull station UL Fire Listed?
Yes, the MPEX is UL Fire Listed and ULC Canadian Fire Listed.
How to Install the MPEX Explosion-Proof Pull Station
This guide provides step-by-step instructions for the installation and initial setup of the MPEX explosion-proof pull station.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Unpack the pull station
Carefully unpack the pull station and inspect it for any damage that may have occurred during transit. If damaged, do not install and file a claim with the carrier.
- Mount the splice box
Securely attach the splice box to a rigid surface using 1/4" diameter mounting bolts. Ensure the box is level and firmly fixed.
- Connect the conduit
Attach a 3/4" conduit to the splice box. Pull the wires through the conduit and into the splice box.
- Make electrical connections
Ensure power is off. Strip approximately 1/4" of insulation from the end of each wire. For normally open circuits, connect wires to terminal positions 1 and 2. For normally closed circuits, connect to positions 3 and 4. Connect the ground wire to the ground screw in the splice box. Tighten terminal screws securely.
- Install the cover assembly
Place the cover assembly on the pull station and tighten the four cover bolts. Ensure that a 0.0015" feeler gauge does not penetrate the flange joint by more than 1/8" at any point.
- Test the system
After installation, test the system to verify that each pull station operates satisfactorily along with the connected devices.
- Establish a testing program
Create a schedule for periodic testing of the device in accordance with NFPA 72 and local fire codes.
- Provide instructions to personnel
Distribute a copy of these installation instructions to all personnel responsible for routine testing and maintenance of the equipment.
