Federal Signal 371DST-240B - Commander Double Strobe Light, Hazardous Location, UL and cUL CID2, 240VAC, Blue
Federal Signal

371DST-240B

Alternate Item Number: 371dst-commander

UPC: 782979281337


Documents & Media
BrochureInstallation InstructionsLine DrawingComputer-Aided (CAD) ModelSpecification SheetWarranty

Contact for Pricing

Overview

The Federal Signal 371DST-240B Double Strobe Light delivers reliable, high‑visibility hazard warnings in challenging industrial environments. Designed for 240 VAC operation, this blue‑colored strobe meets rigorous UL and cUL CID2 certification, ensuring compliance with hazardous location standards. The dual‑strobe configuration provides rapid, unmistakable flashing that captures attention even in low‑visibility conditions, enhancing worker safety and regulatory adherence. Its robust enclosure protects against dust, moisture, and mechanical impact, making it suitable for use in chemical plants, refineries, and other high‑risk facilities. Easy installation and low maintenance further reduce downtime, while the energy‑efficient LED technology delivers long service life and reduced operating costs. Whether you need to mark entry points, emergency exits, or high‑risk zones, the 371DST-240B offers a dependable solution that meets the strict demands of modern industrial safety protocols. Contact your local distributor for specifications, installation guidelines, and warranty information. Key benefits include: - High‑visibility blue strobe for optimal contrast - 240 VAC voltage rating for standard industrial power supplies - UL & cUL CID2 certification for hazardous location use - Durable, weather‑proof enclosure for harsh environments - Energy‑efficient LED technology with long service life Choose Federal Signal for proven safety performance and engineering excellence. This product is ideal for: - Chemical processing plants - Oil and gas facilities - Electrical substations - Manufacturing lines with hazardous materials - Any industrial setting requiring stringent safety lighting standards.
  • Blue strobe for high visibility
  • 240 VAC voltage rating
  • UL & cUL CID2 hazardous location certification
  • Durable, weather‑proof enclosure
  • Energy‑efficient LED technology

Specifications

-31 to 104
DEG F
0.3
A
0.30
A
10,000
HR
11.38 H x 9.25 W x 9.25 D
IN
240
VAC
240 50-60Hz
VAC
240VAC
V
750,000
CND
80
FLPM
Amperage
0.3 A
Amperage Rating
0.3 AMP
Application
Indoor/Outdoor
Average Life
10,000 HR
Brand Name
Federal Signal
Candela Power
1000
Candela Power Peak
750,000
Candle Power
750,000 CND
Color
Blue
Diameter
9.25 in (235 mm)
Environmental Conditions
-31 to 104 DEG F
Flashes Per Minute
80 DFLPM
Lens Color
Blue
Lens Style
Fresnel
Light Source
Strobe Tube
Material
Poly
Material
Aluminum/Polycarbonate
Model
371DST
Mounting
1-Inch NPT Pipe,Surface
Mounting
1-Inch NPT Pipe/Surface
NEMA Rating
Type 4X, IP66, IP69K Enclosure
Operating Temperature
-31D to +104DF (-35D to +40DC)
Power Peak
750000
Series
Commander Double Strobe Light
Shape
Cylindrical
Size
11.38 H x 9.25 W x 9.25 D IN
Special Features
Optional Wall And Corner Mount Brackets
Standard
UL,cUL
Standard
UL Listed/cUL Listed
Style
Double Strobe
Sub Brand
Commander
Type
Double Strobe Hazardous Location Warning Light
Voltage Rating
240 VAC
Package Dimensions (L x W x H)
12.5 IN x 14.5 IN x 11.75 IN
Package Dimensions (L x W x H)
31.75 cm x 36.83 cm x 29.845 cm
Package Weight (Imperial)
8.300 L
Package Weight (Metric)
3.765 kg
StreamLine Strobe, Mini, UL and cUL, 120-240VAC, Blue

LP6-120B

StreamLine Strobe, Mini, UL and cUL, 120-240VAC, Blue
StreamLine Strobe Light, Low Profile, UL and cUL, 240VAC, Surface Mount, Blue

LP3S-240B

StreamLine Strobe Light, Low Profile, UL and cUL, 240VAC, Surface Mount, Blue
Fireball LED, CIZ2, 120-240VAC, Surface/Pipe Mount, Blue

FB2LEDX-CN-120-240B

Fireball LED, CIZ2, 120-240VAC, Surface/Pipe Mount, Blue
Commander LED Rotating Light, Hazardous Location, UL and cUL CID2, 120VAC, Blue

371LEDX-120B

Commander LED Rotating Light, Hazardous Location, UL and cUL CID2, 120VAC, Blue
Fireball Strobe Light, UL and cUL, 240VAC, Blue

FB2PST-240B

Fireball Strobe Light, UL and cUL, 240VAC, Blue
Steady LED Hazardous Location Division Listed Warning Light, Surface Mount, 120-240VAC, Blue - Available in 24VAC/DC, 120-240VAC and 277VAC. Five lamp/lens colors: Amber, Blue, Clear, Green and Red. Flashing mode standard, configurable to steady-burn. 50,000 hour, vibration resistant LED lamp. Dome guard included. Available in 3/4-inch NPT pipe mount or surface mount. Type 4X, IP66 enclosure. IP69K compliant. Marine Listed. UL and cUL Listed for Class I, Division 2, Groups A, B, C and D & Class II, Division 1, Groups E, F and G & Class III.

191XL-S120240BS

Steady LED Hazardous Location Division Listed Warning Light, Surface Mount, 120-240VAC, Blue - Available in 24VAC/DC, 120-240VAC and 277VAC. Five lamp/lens colors: Amber, Blue, Clear, Green and Red. Flashing mode standard, configurable to steady-burn. 50,000 hour, vibration resistant LED lamp. Dome guard included. Available in 3/4-inch NPT pipe mount or surface mount. Type 4X, IP66 enclosure. IP69K compliant. Marine Listed. UL and cUL Listed for Class I, Division 2, Groups A, B, C and D & Class II, Division 1, Groups E, F and G & Class III.
Commander Double Strobe Light, Hazardous Location, UL and cUL CID2, 120VAC, Blue

371DST-120B

Commander Double Strobe Light, Hazardous Location, UL and cUL CID2, 120VAC, Blue
Steady LED Hazardous Location Division Listed Warning Light, 277VAC, Blue - Available in 24VAC/DC, 120-240VAC and 277VAC. Five lamp/lens colors: Amber, Blue, Clear, Green and Red. Flashing mode standard, configurable to steady-burn. 50,000 hour, vibration resistant LED lamp. Dome guard included. Available in 3/4-inch NPT pipe mount or surface mount. Type 4X, IP66 enclosure. IP69K compliant. Marine Listed. UL and cUL Listed for Class I, Division 2, Groups A, B, C and D & Class II, Division 1, Groups E, F and G & Class III.

191XL-277BS

Steady LED Hazardous Location Division Listed Warning Light, 277VAC, Blue - Available in 24VAC/DC, 120-240VAC and 277VAC. Five lamp/lens colors: Amber, Blue, Clear, Green and Red. Flashing mode standard, configurable to steady-burn. 50,000 hour, vibration resistant LED lamp. Dome guard included. Available in 3/4-inch NPT pipe mount or surface mount. Type 4X, IP66 enclosure. IP69K compliant. Marine Listed. UL and cUL Listed for Class I, Division 2, Groups A, B, C and D & Class II, Division 1, Groups E, F and G & Class III.
Hazardous Location Strobe Warning Light, 120VAC, Pipe Mount, Magenta - Available in 12-24VDC, 120VAC and 230-240VAC. Five lens colors: Amber, Blue, Clear, Green and Red. 10,000-hour high-intensity strobe. Available in 3/4-inch NPT pipe mount or surface mount. Dome guard included. Indoor/outdoor use. Conformal coated PCB. Type 4X, IP66 enclosure. IP69K compliant. Marine rated. UL and cUL Listed for Class I, Division 2, Groups A, B, C and D & Class II, Division 1, Groups E, F and G & Class III.

151XST-120M

Hazardous Location Strobe Warning Light, 120VAC, Pipe Mount, Magenta - Available in 12-24VDC, 120VAC and 230-240VAC. Five lens colors: Amber, Blue, Clear, Green and Red. 10,000-hour high-intensity strobe. Available in 3/4-inch NPT pipe mount or surface mount. Dome guard included. Indoor/outdoor use. Conformal coated PCB. Type 4X, IP66 enclosure. IP69K compliant. Marine rated. UL and cUL Listed for Class I, Division 2, Groups A, B, C and D & Class II, Division 1, Groups E, F and G & Class III.

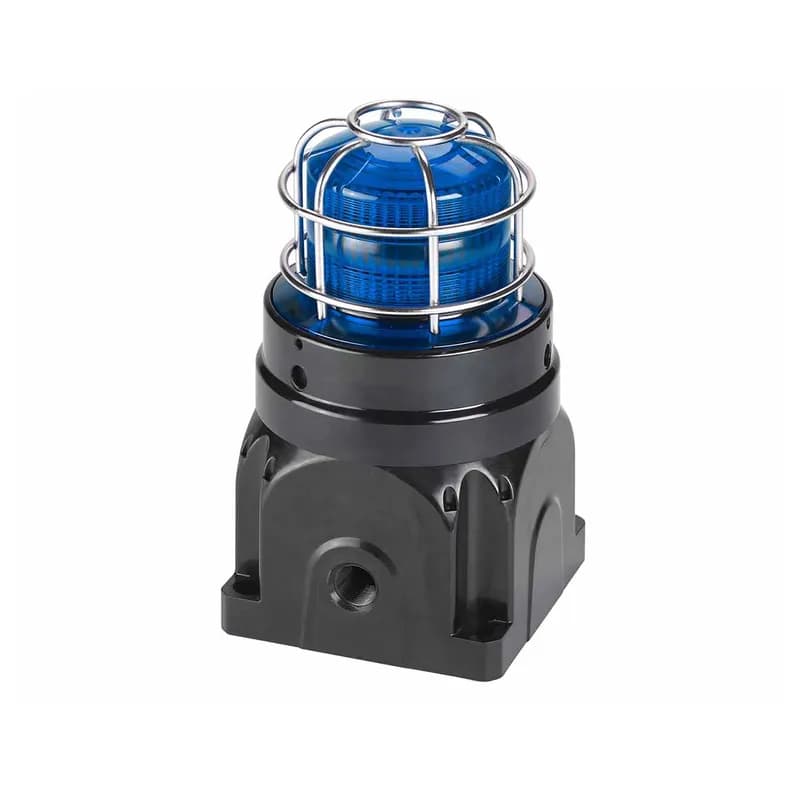

Global Series LED Light, Hazardous Location, UL and cUL CID2, Zone Listed, 120-240VAC, Ex d Surface Mount, High-Profile Lens, Blue

G-LED-AC-D-B-H

Global Series LED Light, Hazardous Location, UL and cUL CID2, Zone Listed, 120-240VAC, Ex d Surface Mount, High-Profile Lens, Blue
StreamLine Strobe Light, Low Profile, UL and cUL, 120VAC, Surface Mount, Red

LP3S-120R

StreamLine Strobe Light, Low Profile, UL and cUL, 120VAC, Surface Mount, Red
StreamLine Strobe Light, Low Profile, UL and cUL, 120VAC, Surface Mount, Clear

LP3S-120C

StreamLine Strobe Light, Low Profile, UL and cUL, 120VAC, Surface Mount, Clear

Frequently Asked Questions

Is the 371DST suitable for hazardous environments?

Yes, the Model 371DST Commander® Double Strobe is explicitly listed as a Hazardous Location Light within the document.

What does the IP69K rating mean for products?

IP69K signifies protection against close-range, powerful, high-temperature water jets and complete dust ingress prevention. It is designed for high-pressure and high-temperature washdowns.

Where are IP69K rated products typically used?

IP69K products are ideal for applications in food and beverage, wastewater, pharmaceutical, marine, and medical facilities or equipment manufacturing.

What tests do IP69K products undergo?

IP69K products are dust-tight tested and endure high-pressure steam jet cleaning with 1160–1450 psi water sprays at 176°F (80°C) from 4–6 inches.

What is the highest IP rating offered?

Federal Signal offers products with an IP69K rating, which is the highest standard on the Ingress Protection (IP) rating scale.

How does IP69K protection compare to NEMA Type 4?

IP69K protects against high-pressure, high-temperature water jets from short distances, while NEMA Type 4 handles high-volume, low-pressure water from longer distances. Both are dust-tight.

What certifications do Federal Signal products have?

Federal Signal products are designed to meet or exceed UL, CSA, CSFM, IECEx, and other global certifications. The company also holds ISO 9001 Certification.

How to Install the 371DST Strobe Light

This guide provides step-by-step instructions for installing and wiring the 371DST Strobe Light in hazardous locations.

Estimated time: 45m

Tools needed:

Screwdriver, Wire strippers, Drill, Multimeter

Supplies needed:

Mounting screws, Terminal connectors, 1” NPT conduit hub, 1” NPT close-up plug

  1. Unpack and Inspect the Light

    Carefully unpack the 371DST Strobe Light and inspect it for any damage that may have occurred during transit. If damaged, do not install and file a claim with the carrier.

  2. Mount the Light

    Choose a flat horizontal surface or a 1” NPT pipe for mounting. For surface mounting, use the gasket as a template to mark four drill positions. Drill holes for mounting screws and a larger hole for wire entry. Secure the light using the provided screws and washers.

  3. Make Electrical Connections

    Disassemble the light by removing the dome assembly and the strobe-spinning assembly. Route the supply wires into the housing, strip 0.28” of insulation from the ends, and connect them to the terminal block, ensuring proper polarity for DC models. Connect the earth ground to the terminal block.

  4. Reassemble and Test the Light

    Reassemble the light by securing the strobe-spinning assembly and dome. Ensure the dome is tightly closed. Turn on the power and test the light to ensure it operates correctly.

  5. Establish Maintenance Procedures

    After installation, provide a copy of the instruction sheet to all operating personnel and establish a routine check procedure to ensure the light installation remains intact and operational.
