Contact for Pricing

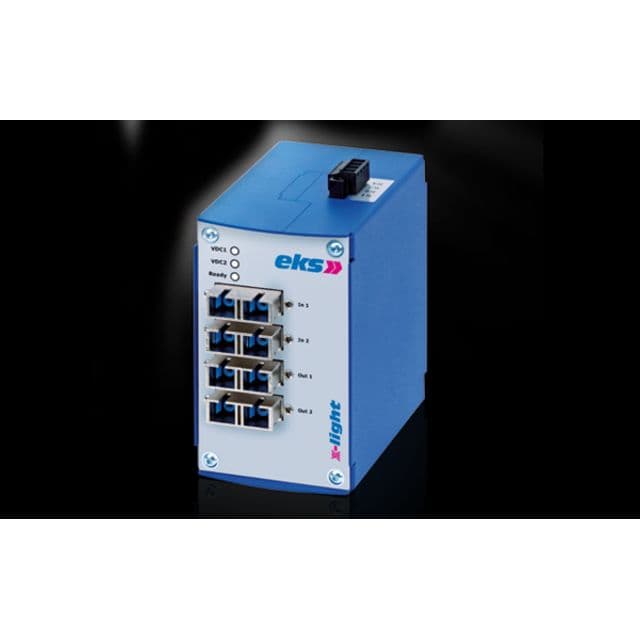

Overview
- 50/125 multimode fiber compatibility (OM2/OM3)
- LC connector interface for direct LC-based system integration
- Bypass design for seamless inline connectivity without signal conversion
- German-made by EKS Engel for industrial and enterprise reliability
- Ideal for data centers, telecommunications, and industrial automation
Specifications
Connection Type | LC |
Dimensions | 60 x 100 x 113 mm (60 x 120 x 113 mm incl. connector) |
Durability switch | 10 million |
EMC | EN61000-6-2/EN55022 Klasse B + A1 + A2 |
Failure relay | 25 VDC (1 A) / 60 VDC (0,3 A) |
Fiber type | Multimode 62,5/125 μm |
FO-connector | LC |
Housing | Stainless steel, powder coated |
Manufacturer Page | https://www.eks-engel.de/en/products/industrial-network-technology/eks-bypass/ |
Operating temperature | –40 °C – +70 °C |
Power consumption | 2,5 Watts |
Power supply | 10–64 VDC |
Product Description | x-light ensures a safe communication even in case of device failure by optically bypassing the defective node so that a permanent data transmission is guaranteed. x-light is manufacturer and protocol independent so that it perfectly integrates into every network, regardless of the structure (ring or line). x-light is activated once the voltage is lower than the adjusted voltage level. Furthermore, the system can be controlled flexibly via the trigger input, e.g. in case of service or failures. |
RS485 Connector | 2 x 4-pin power supply / 4 pin failure relay and signal input |
Series | XL-optical bypass |
Status-LEDs | Power (green) / error (red) / ready (green) |
Switch-on delay | 5 s, 10 s, 20 s and/or 40 s, switchable by DIP-Switch |
Switching speed | 15 ms max./4 ms typ./4 ms in a temperature range between +5 °C and +70 °C |
Switching type | non latching |
Threshold level | Between 10 V and 64 V switchable by DIP-Switch (1 V, 2 V, 4 V, 8 V, 16 V and/or 32 V) |
Wavelength | 850 nm (±40 nm) 1310 nm (±40 nm) |
Weight | 500 g |
Frequently Asked Questions
What is the operating voltage range for the XL-Optischer Bypass?
The device operates on a voltage range of 10-64 VDC.
What is the operating temperature range for this device?
The operating temperature range is from -40°C to +70°C.
What types of protocols does the XL-Optischer Bypass support?
It supports all Ethernet-based protocols, fieldbuses, and numerous interfaces like RS485.
What is the power consumption of the XL-Optischer Bypass?
The power consumption of the device is 2.5 Watts.
What are the dimensions of the XL-Optischer Bypass?
The dimensions are 60 x 100 x 113 mm, or 60 x 120 x 113 mm including connectors.
What is the weight of the XL-Optischer Bypass?
The weight of the device is 500 g.
How does the bypass function maintain data communication during a network failure?
In case of a network component failure, signals are rerouted to the second input via an optical relay, maintaining communication.
Can the bypass function be manually activated?
Yes, the bypass function can be manually operated using a control contact, for example, during maintenance.
What is the maximum switching speed of the bypass function?
The maximum switching speed is 15 ms, with a typical speed of 4 ms.
What is the switching capacity of the error relay?
The error relay has a capacity of 25 VDC (1 A) or 60 VDC (0.3 A).
