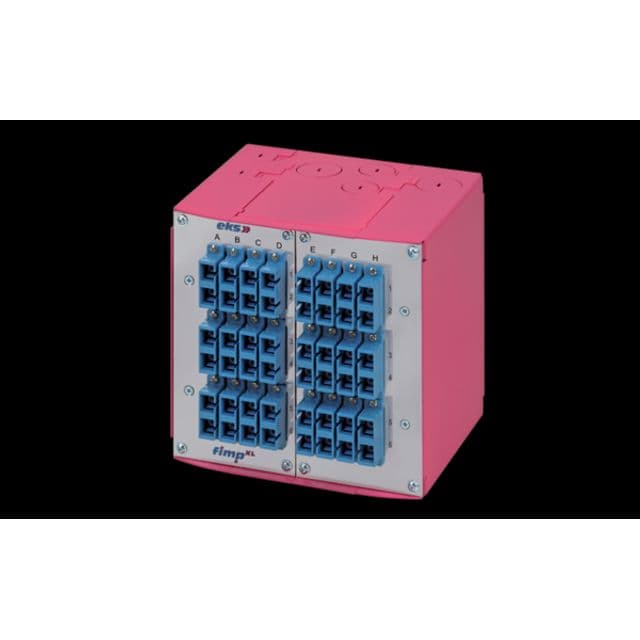

EKS Engel 06181038712387129-00 FIMP-XLE-24xE2000-D/Compact/8-APC (polymer) SB 9-SM
Alternate Item Number: 10007682
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Advanced polymer material for lightweight durability
- Compact form factor for space-constrained applications
- SB 9-SM connection type for modular integration
- Designed for demanding industrial environments
- Manufactured in Germany to stringent quality standards
Specifications
Manufacturer Page | https://www.eks-engel.de/en/products/industrial-network-technology/passives/fimp-xle/ |
Product Description | FIMP-XLE splice boxes are ideal for industrial environments due to their compact and robust design. The splice box is available in various configurations, up to full configuration, which can be delivered with splice holders, splice cassettes, couplings, pigtails and cable glands. ST, SC, LC and E2000 are available as coupling variants. The FIMP-XLE can be equipped with up to four splice holders. This makes it possible to connect up to 48 fibers. |
Series | FIMP-XLE |
SS1-1/0-RN-750KW20
Storm-Safe Breakaway Mid Span Service Entrance Kit, (1) SSM 2, (1) SSS 2, (2) SSS 1/0, (2) SSM 1/0, (1) W20-1, Breakaway Force 750 LBS, Less Than 1000 Volts
Frequently Asked Questions
What are the dimensions of the FIMP-XL-E?
The dimensions are H: 137 mm, W: 139 mm, and D: 134 mm.
What is the operating temperature range for this product?
The product can operate in temperatures ranging from -40 °C to +75 °C.
What is the humidity range for operation?
The humidity range is 10% to 95% relative, non-condensing.
What material is the housing made of?
The housing is made of stainless steel and is powder coated.
What is the weight of the product?
The weight of the product is 1500g.
What is the fiber capacity of the FIMP-XL-E?
The FIMP-XL-E is suitable for 48 fibers.
Can this product be mounted on a DIN rail?
Yes, the robust and powder coated housing is suitable for DIN rail mount.
What accessories are available for this product?
Available accessories include cable glands, nuts, strain relief, splice holders, splice protection, cable ties, screws, and mounting kits.
